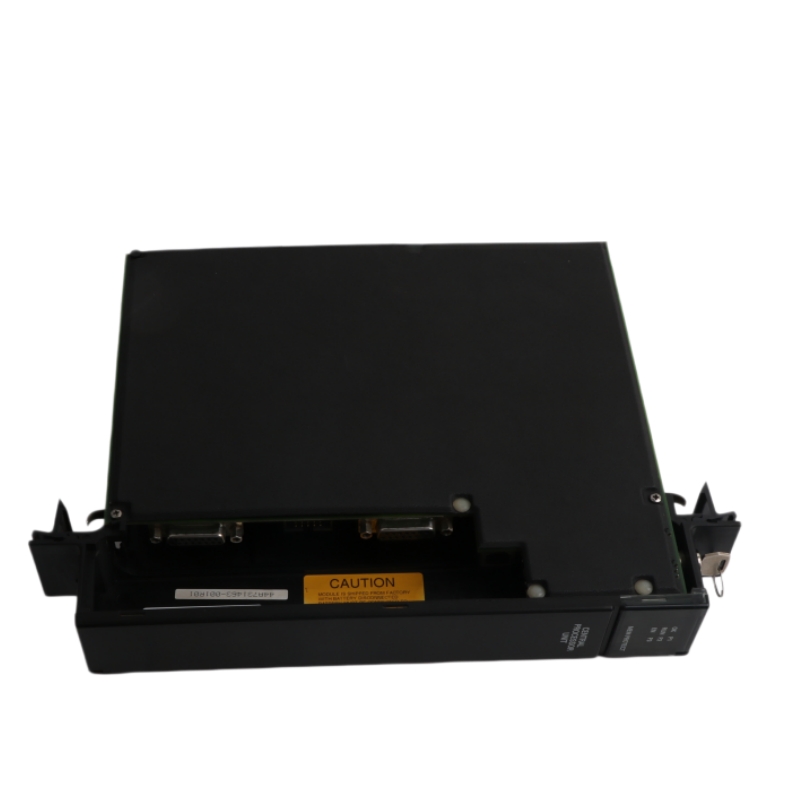

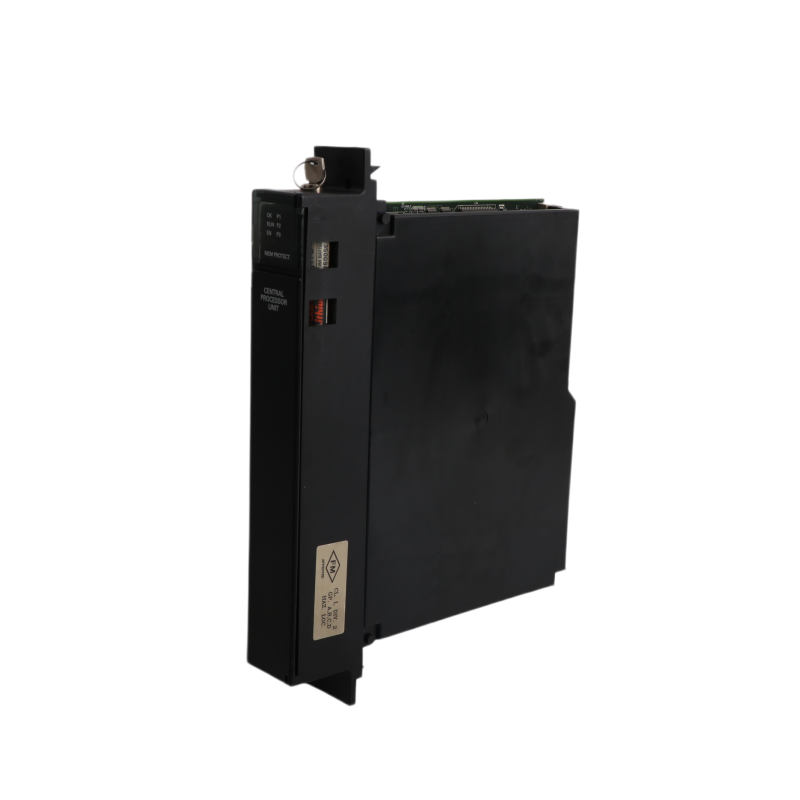

/GE IC697CPX935-JE Central Processing Unit
GE IC697CPX935-JE Central Processing Unit
GE IC697CPX935-JE Central Processing Unit
GE IC697CPX935-JE Central Processing Unit

GE IC697CPX935-JE Central Processing Unit

The CPX 935 is a single-slot programmable PLC CPU for real-time control of machines, processes, and I/O modules.
  • Nhãn hiệu :

    PLC
  • một phần số :

    IC697CPX935-JE
  • Trọng lượng :

    0.76kg
  • Kích thước :

    4x21.7x29.1cm
  • nước xuất xứ :

    USA
  • Mã HS :

    8537101190
  • Sự mô tả :

    Central Processing Unit


Features

Single slot CPU with three serial ports

Provides 1 Mbyte of battery-backed memory in the same slot

Contains 256K of non-volatile user flash memory

Supports BMA in release 7.92 and later

Supports floating point calculations

12K inputs and outputs (any mix), and up to 8Kanalog I/O

0.4 microseconds per boolean function

96 MHz, 80486DX4 microprocessor

Supports IC66 (can be IC660 or IC661) and IC697 I/O

Programmed by MS-DOS software products, or Windows based software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through an SNP port

Configurable data and program memory

Battery-backed calendar clock

Three position operation mode switch

Password controlled access

Remote programmer keyswitch keyswitch memory protection

Seven status LEDs

Software configuration (No DIP switches or jumpers)

Reference information inside front door

In-system upgradable firmware


Details

Detailed Parameter

Part Number: IC697CPX935-JE

Clock speed

96 megahertz

Current Required

3.1 Amperes

Discrete I/O

12 K, max (any combination)

Points

12K inputs and outputs (any mix)

Analog I/O

8 K max

Serial Ports

RS-232 and RS-485

Boolean execution

0.4 microseconds per boolean function

Operational Temperature

50 degrees Celsius

Compatibility

GE Fanuc 90-70 PLCs

Maximum RAM

1 MB

Current input

3.1 Amps

Microprocessor

96 MHz

Voltage input

5 Volts DC

Communication

LAN or link interface module

Communication port

One (1) RS232; Two (2) RS485 interface

Operating temperature

0 to 60 degrees Celsius


Conatct  Us  Now

Sale manager

Email

Whatsapp

Maple

sales16@mooreplc.com

+86 13394057292

FAQ

Q:Does the IC697CPX935-JE support hot-swapping?

A:No. Rack power must be turned off before inserting or removing the CPU to prevent damage to the backplane logic or erasure of user memory.

Q:Is IC697CPX935-JE external cooling required?

A:Forced air cooling is required if the ambient operating temperature exceeds 50°C (122°F).

Q:Does IC697CPX935-JE have non-volatile memory?

A:Yes. It has 256KB of non-volatile flash memory.


Customer Service


At our company, customer satisfaction is at the heart of everything we do. We are dedicated to providing you with a seamless and worry-free experience from the moment you place your order to long after your product arrives.

  • 12-Month Warranty
    Every product we offer is backed by a comprehensive 12-month warranty, ensuring your investment is fully protected against any manufacturing defects. Should any issue arise within this period, our support team is ready to assist you promptly.

  • Secure & Eco-Friendly Packaging
    All items are carefully packaged in original cartons with sturdy, high-quality materials to guarantee safe transit. Our packaging is designed not only to protect your product but also to minimize environmental impact wherever possible.

  • Worldwide Express Shipping
    We partner with leading global carriers—DHL, UPS, FedEx, and TNT—to deliver your orders reliably to almost any destination worldwide. Real-time tracking numbers are provided so you can monitor your shipment every step of the way.

  • Flexible Payment Options
    We accept T/T (Telegraphic Transfer) as our primary payment method, offering a secure and straightforward transaction process for both domestic and international clients.

  • Rapid Order Processing
    Our efficient logistics team ensures that most orders are processed and dispatched within 1–2 working days after payment confirmation, so you receive your products as quickly as possible.

  • Dedicated After-Sales Support
    Our multilingual customer service representatives are available via email, live chat, or phone to answer your questions, resolve concerns, and provide technical guidance. We strive to respond to all inquiries within 24 hours and resolve issues with minimal disruption to your business.



Revisions

Revision Part #

Also known as

IC697CPX935CB

IC697CPX935-CB, Series CB, Rev CB

IC697CPX935CC

IC697CPX935-CC, Series CC, Rev CC

IC697CPX935CD

IC697CPX935-CD, Series CD, Rev CD

IC697CPX935ED

IC697CPX935-ED, Series ED, Rev ED

IC697CPX935FD

IC697CPX935-FD, Series FD, Rev FD

IC697CPX935GE

IC697CPX935-GE, Series GE, Rev GE

IC697CPX935HE

IC697CPX935-HE, Series HE, Rev HE

IC697CPX935HF

IC697CPX935-HF, Series HF, Rev HF

IC697CPX935JE

IC697CPX935-JE, Series JE, Rev JE
