6DS1220-8AB Siemens Bus Interface

Contact Our Manager Frida to Get Price:

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Material number:
6DS1220-8AB

Description:

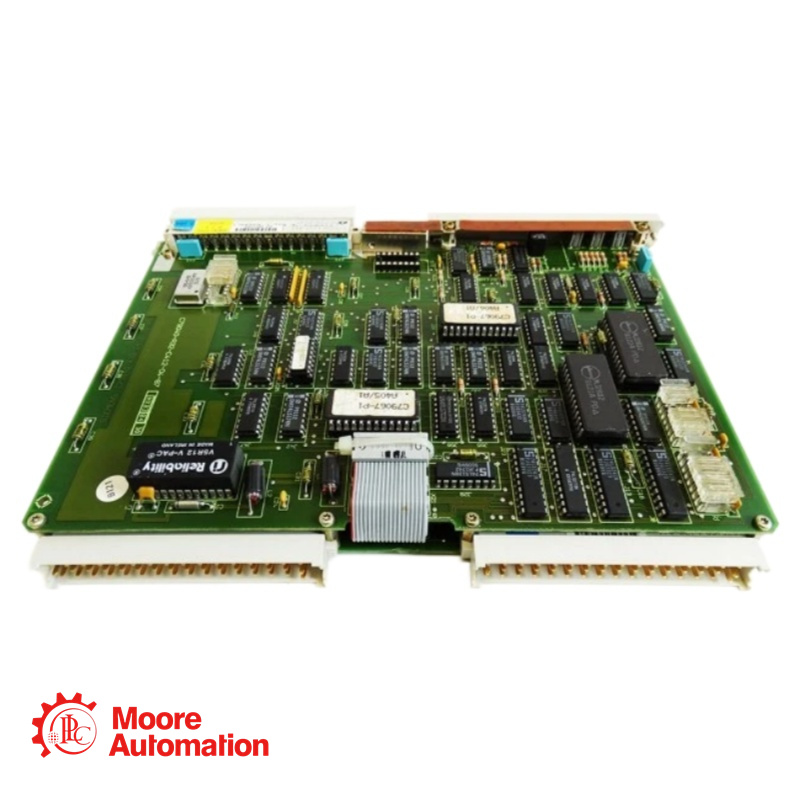

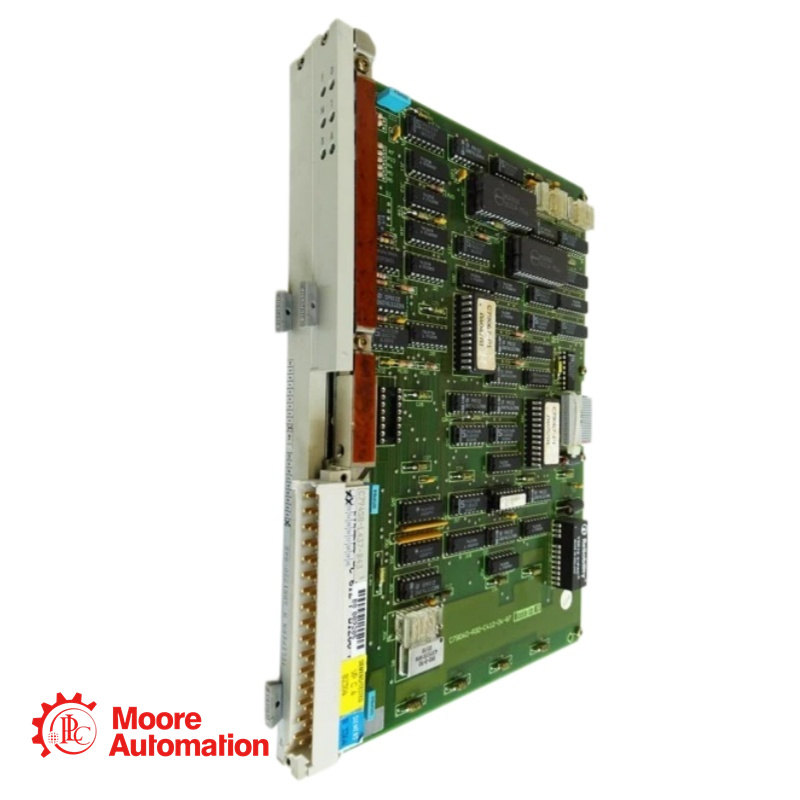

6DS1220-8AB local bus interface module for the TELEPERM M AS 235 H automation system
Provides connection to the CS 275 bus system for communication with other automation systems (AS, OS, etc.)
Used in redundant 1-out-of-2 master/reserve configuration of a fault-tolerant automation system
Compatible with AS 235 H basic unit; must be installed redundantly (one per CPU) when CS 275 communication is required

The 6DS1220-8AB module is a bus interface module that enables the AS 235 H automation system to participate in the TELEPERM M CS 275 serial bus system. It supports local bus communication (up to 20 m) and, together with a UI bus converter unit, remote bus communication (up to 4 km). In an AS 235 H redundant system, one N8-H module must be installed for each CPU (CPU I and CPU II). Both modules must have identical bus address (BA) and participant address (TA) settings.

Technical Data:

Product Type:Local bus interface module
Series:TELEPERM M, AS 235 H
Bus system:CS 275
Communication type:Local bus (20 m) / Remote bus via UI converter (4 km)
Redundancy support:Yes (one module per CPU in AS 235 H)
Participant address (TA):Binary coded via DIP switches (8 bottom switches), range 0 … 99
Bus address (BA):Binary coded via DIP switches (3 upper switches), range 0 … 7
Bus redundancy (RE):Selectable via RE switch: 0 = redundant remote bus, 1 = non-redundant remote bus
