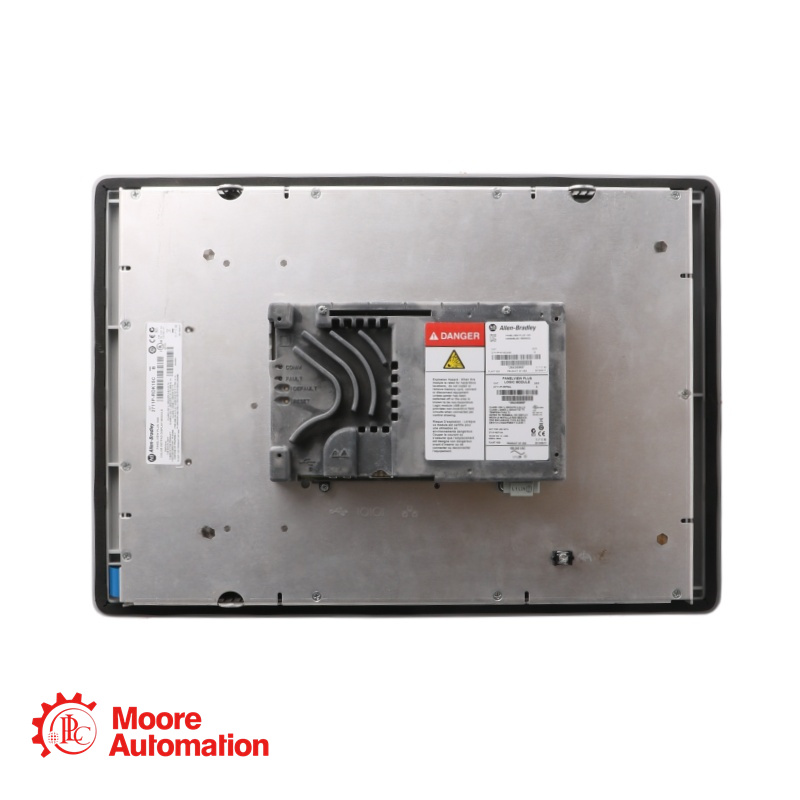

The 2711P-K10C4D8 is a PV Plus 6 1000 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS232, and Two (2) USB communication port. This operator terminal has a embedded keypad input interface.
Nhãn hiệu :
PLCmột phần số :
2711P-K10C4D8Trọng lượng :
4.28 kgKích thước :
46.8x8.5x33cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Operator Terminal
Brand
PLC
Part number
2711P-K10C4D8
Origin
USA
Description
Operator Terminal
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Description of 2711P-K10C4D8
The current PV 6 Plus 2711P-K10C4D8 is an HMI that allows the user to interact with their machine. This operator interface has a 10.4 in. Color Display. The user is able to control the operator interface by utilizing the Keypad to input information and data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 512 MB RAM. If applicable this unit has an internal backlight replacement part number of 2711P-RL10C2. The approximate shipping weight and dimensions are 8 lbs. and 16 x 14 x 8 in. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.
Parameter
Display Size:10.4 in. inches
Product Family:PanelView Plus 6 Operator Terminals
Operator Input:Touch
Display Type:Color active-matrix TFT
Lifecycle status:End of life
Display Area:211 x 158 mm (8.3 x 6.2 in.)
Resolution:640 x 480, 18-bit color graphics
Keypad buttons:32 Functions Keys, Navigation, numeric and confirmation buttons
Internal memory:512MB Flash Memory / 512 MB Random Access Memory
Integrated ports:Ethernet, RS-232, 2 USB host
Input Voltage range:18-30VDC
FAQ
What is the difference between the 2711P-T10C4D8 and 2711P-K10C4D8?
The 2711P-T10C4D1 is a PV Plus operator terminal that is Touch operated while the 2711P-K10C4D8 is a Keypad operated HMI device.
What is the power supply requirement of the 2711P-K10C4D8?
This operator terminal is power with an external 18-32VDC voltage.
What are the available communication interfaces of the 2711P-K10C4D8?
The 2711P-K10C4D8 has Ethernet and RS232 communication ports and Two (2) USB peripheral interface.
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
