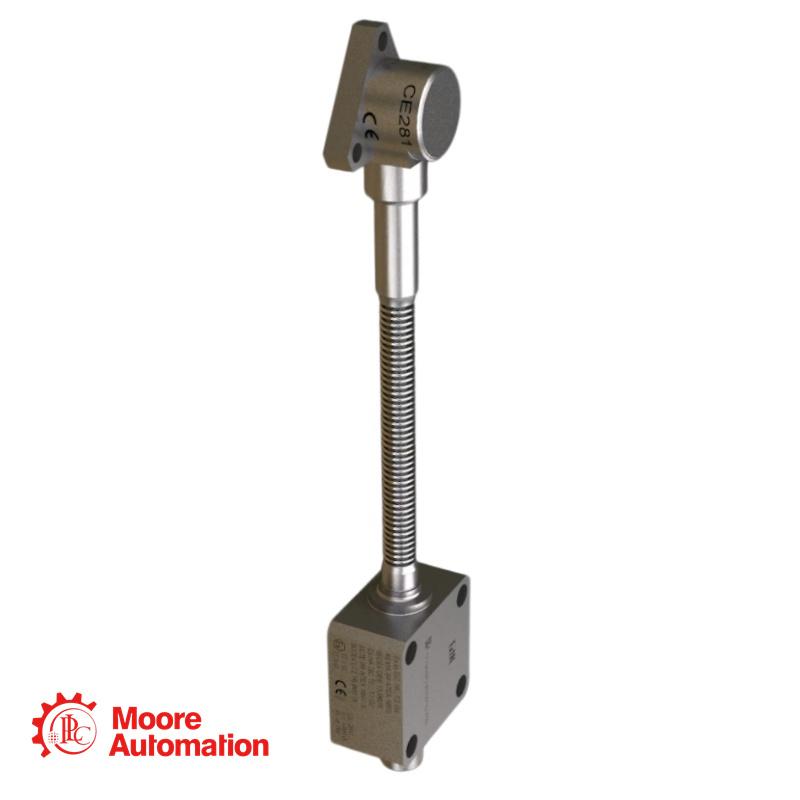

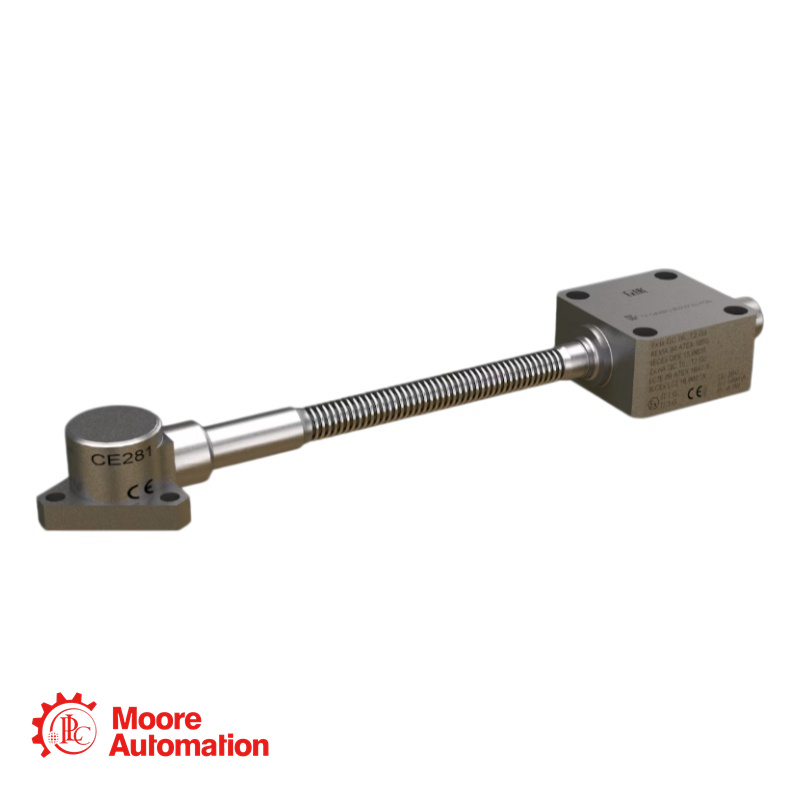

The CE281 piezoelectric accelerometer from Meggitt’s vibro-meter® product line is a vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments and/or hazardous areas.
Nhãn hiệu :
VIBRO METERmột phần số :
CE281 444-281-000-111Trọng lượng :
0.3 kgKích thước :
12.2x10.7x3cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Piezoelectric Pressure Transducer
|
BRAND/ MANUFACTURER: |
PART NUMBER |
CONDITION: |
COUNTRY OF ORIGIN |
|
VIBRO METER |
CE281 444-281-000-111 |
Brand New Factory Sealed - Original |
USA
|
Welcome To Contact Frida！
|
Name：Frida |
||
|
Email：sales5@mooreplc.com |
Whatsapp：+86 15359408275 |
Welcome to Inquire |
Our Company
Moore Automation is a high-tech company specializing in the sales of industrial automation
components dedicated to enhancing the world's supply of automation components.
No matter where your customers are,no matter how rare moles they need, accessories are
available to customers all over the world, allowing them to connect closely with their products.
Product Specifications
|
The CE281 piezoelectric accelerometer from Meggitt’s vibro-meter® product line is a vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments and/or hazardous areas.
The CE281 sensor features a centre-mounted symmetrical shear-mode measuring element using polycrystalline material. The sensor uses integrally attached electronics to provide the required signal processing, eliminating the need for an external signal conditioner (charge amplifier). The attached electronics also performs charge-to-current conversion in order to provide a current-modulated output signal that is suitable for transmission over long distances.
From the vibro-meter® product line
Sensitivity: 10 µA/g
Frequency response: 3 to 7000 Hz
Temperature range: −55 to 260°C (sensor) and −40 to 125°C (electronics)
Long-distance signal transmission
Integrally attached electronics
Integral case insulation
Available in standard versions and
Ex versions certified for use in potentially explosive atmospheres
Input power supply requirements : 15 to 28 VDC, with a bias (standby) current of 5 to 8 mA
Signal transmission : Current-modulated output (2-wire system)
Sensitivity : 10 µA/g ±5%
Dynamic measurement range(sensor head only): 0.0001 to 200 g PEAK
Overload capacity (spikes) (sensor head only): Up to 2000 g PEAK
Linearity : ±1% over dynamic measurement range
Sensor head : 2000 g PEAK (half-sine wave, 1 ms duration)
|
Our Advantages
❏If you need to order more than 1 product, please contact us. We can offer you a discount.
❏If you have any other questions, please feel free to contact us.
❏If you find the same parts from any other suppliers cheaper than us, we will try to match that
the same price, or provide you with a further discount.
