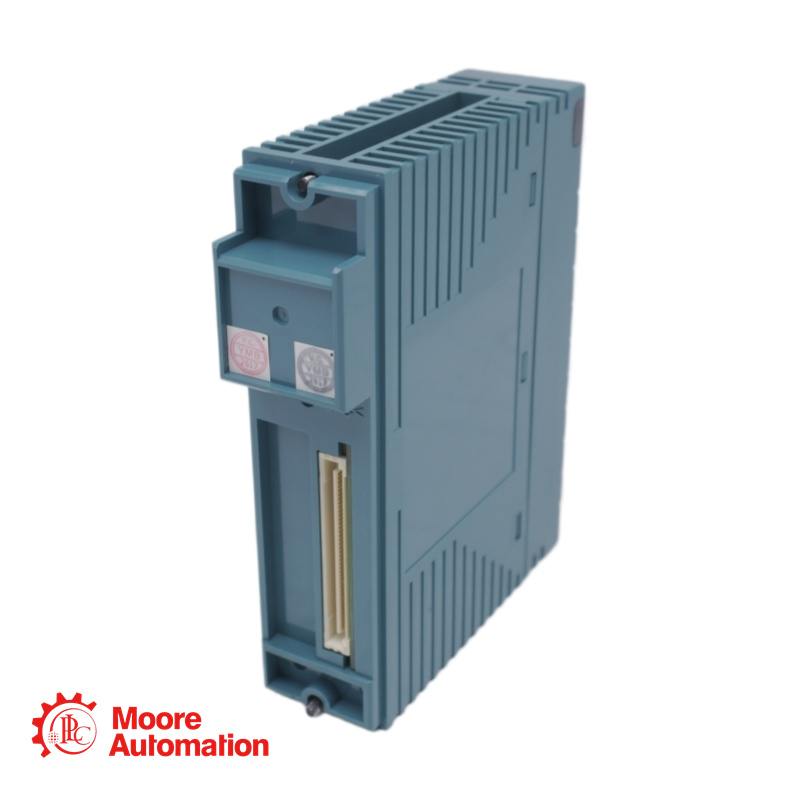

NFDV561-P50 Digital Output Module - Yokogawa

Contact Our Manager Frida to Get Price:

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Material number:
NFDV561-P50

Description:

Digital Output Module for FCN autonomous controller
64-channel, 24 V DC, Isolated
Standard type with no explosion protection
Basic type (no ISA Standard G3 option)

The NFDV561-P50 is a digital output module that outputs 64 channels of transistor contact signals. It provides ON/OFF status output functionality and supports output fallback actions (HOLD, OFF, or NO). The module is designed for installation in STARDOM FCN autonomous controller systems and requires an external field power supply (24 V DC).

Technical Data:

Number of output channels:64
Rated applied voltage:24 V DC
Load voltage:24 V DC, 100 mA
Field power supply voltage range:20.4 to 26.4 V DC
Output ON voltage maximum value:2 V DC
Leak current maximum value when output OFF:0.1 mA
Output format:Current sink
Maximum load current:100 mA/channel, 26.4 V
Output response time:3 ms or less (for status output)
Maximum current consumption:780 mA (5 V DC);120 mA (24 V DC, field power supply)

Accessories:

NFDV151:Digital Input Module (32-channel, 24 V DC, Isolated)
NFDV161:Digital Input Module (64-channel, 24 V DC, Isolated)
NFDV532:Pulse Width Output Module (4-channel)
NFDV551:Digital Output Module (32-channel, 24 V DC, Isolated)
NFDR541:Relay Output Module (16-channel)
NFTDSS-00:Pressure Clamp Terminal Block for Digital Output
NFTDSS-10:Pressure Clamp Terminal Block for Digital Output (surge absorber)

Suffix Code Configuration:

NFDV561:Digital Output Module (64-channel, 24 V DC, Isolated)
-P:Standard type
5:General-purpose type with no explosion protection
0:Basic type
