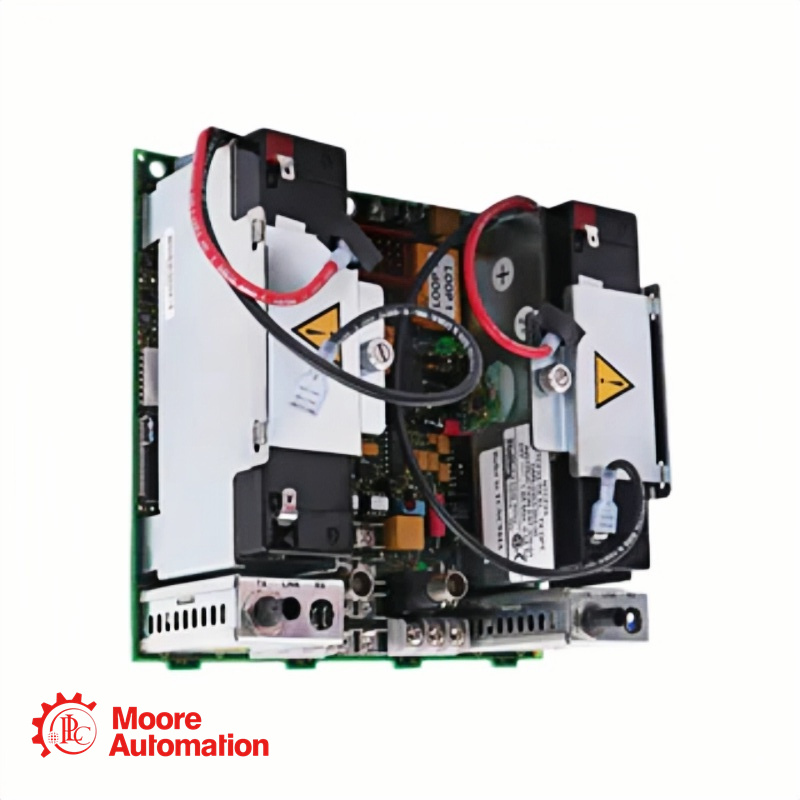

NTCF-21 ABB Termination Unit

Contact Our Manager Frida to Get Price:

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Material number:
NTCF-21

Description:

Fiber-to-fiber termination unit for the PCU communication node (NIS/NPM) modules
Part of the HR Series (Harmony Rack) communication infrastructure
Allows direct connection of a 62.5 micron fiber optic cable for TX and RX
Enables long-distance communication for the control network (Cnet)

The NTCF-21 is a termination unit designed to interface the PCU communication node modules (NIS/NPM) to a fiber optic medium. It supports complete fiber optic cabling, allowing for direct connection of a 62.5 micron fiber optic cable for both transmit (TX) and receive (RX) paths. This module is used for long-distance communication within the Symphony Plus HR Series control network.

Technical Data:

Product Type:Termination Unit
Series:HR Series (Harmony Rack)
Function:Fiber-to-fiber communication
Application:Connects NIS/NPM modules to fiber optic cable for long-distance Cnet communication
Fiber Type:62.5 µm fiber optic cable
Connector Type:Direct connection for TX and RX
Cable Type:Allows complete fiber optic or mixed fiber and copper cables
System Compatibility:Symphony Plus HR Series, INFI 90, Harmony
Installation:Mounts on NFTP01 field termination panel (19" rack style cabinet)
Ambient Temperature:0 °C to 70 °C (32 °F to 158 °F)

Accessories:

NTCF-22 – Fiber-to-copper termination unit (RX fiber, TX coaxial/twinaxial)
NTCF-23 – Copper-to-fiber termination unit (RX coaxial/twinaxial, TX fiber)
SPNIS21 – Network interface module
SPNPM22 – Network processing module
NFTP01 – Field termination panel (mounts two termination units)
