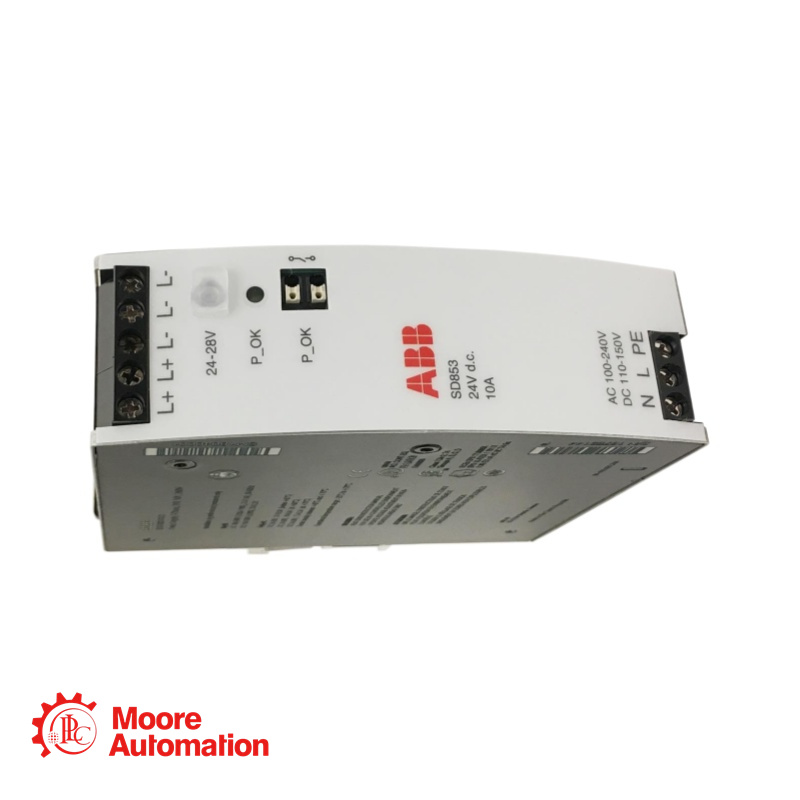

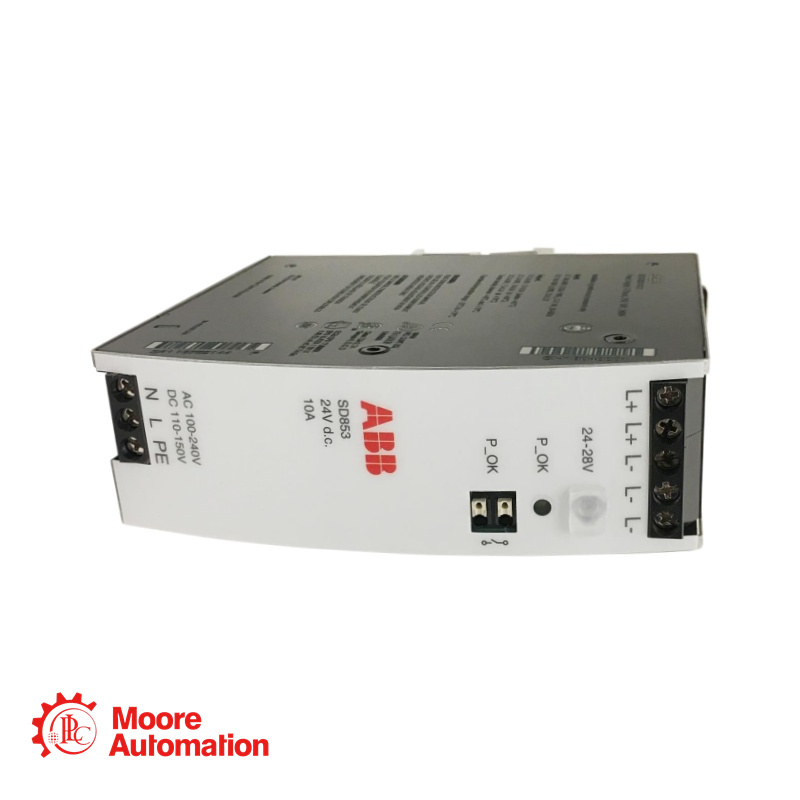

Nhãn hiệu :
ABBmột phần số :
SD853 3BSE088188R1Trọng lượng :
0.6 kgKích thước :
117 mm * 39 mm * 124 mmnước xuất xứ :
SwedenMã HS :
8537101190Sự mô tả :
Power Supply Unit
※Contact & Order
✉ Email: sales5@mooreplc.com
※Executive Summary
The SD85x series complies for use in potentially explosive atmospheres (IECEx Zone 2, ATEX Zone 2, and Class I Div 2). The SD85x series has a built-in power reserve and can easy breaking fuses due to high overload peak current capability.
※General Information
Field
Value
Article number
3BSE088188R1
Type
Power supply
Rated output current
10 A
Rated output power
240 W
Rated output voltage
24 V d.c.
Mains/input voltage, nominal
100-240 V a.c. 110-150 V d.c.
Applications
SELV and PELV
Efficiency
93.6/95.2 % @ 120/230 V a.c.
※Core Data
Parameter
Specification
Mains frequency
50 - 60 HZ +/- 6%
Load sharing
Parallel connection
Supervision relay
Yes
Power Factor (at rated output power)
0.99/0.97
Heat dissipation
16.4 W / 12.1 W, 120/230 V a.c.
Output voltage regulation at max. current
max 50 mV 0 - 12 A
Maximum ambient temperature
70 °C
Primary: Recommended external fuse
10-20 A
Secondary: Short circuit
Hiccup (2s on 18s off)
Output over voltage protection
Max 32 V DC
AC input current
2.15 / 1.13 A
AC inrush current
6 A / 9 A peak
※Applications
Pumped storage:Synchronizing in both pump and turbine modes
Industrial cogeneration:Paralleling with public utility under varying load
Offshore/marine:Redundant synchronizing for critical vessel power
|
