Proximity Transducer

330881-28-00-060-00-02:

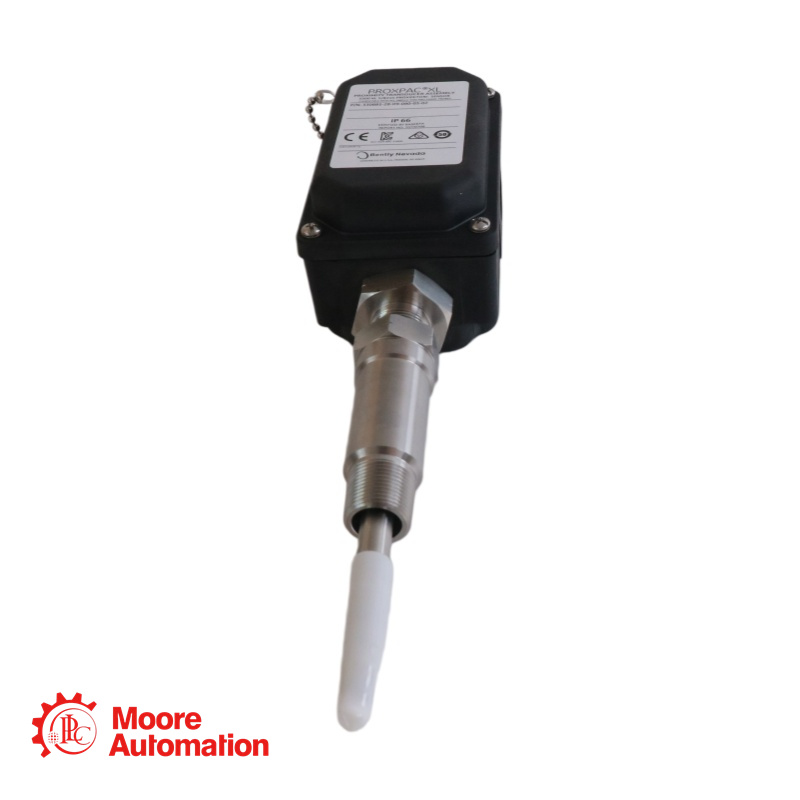

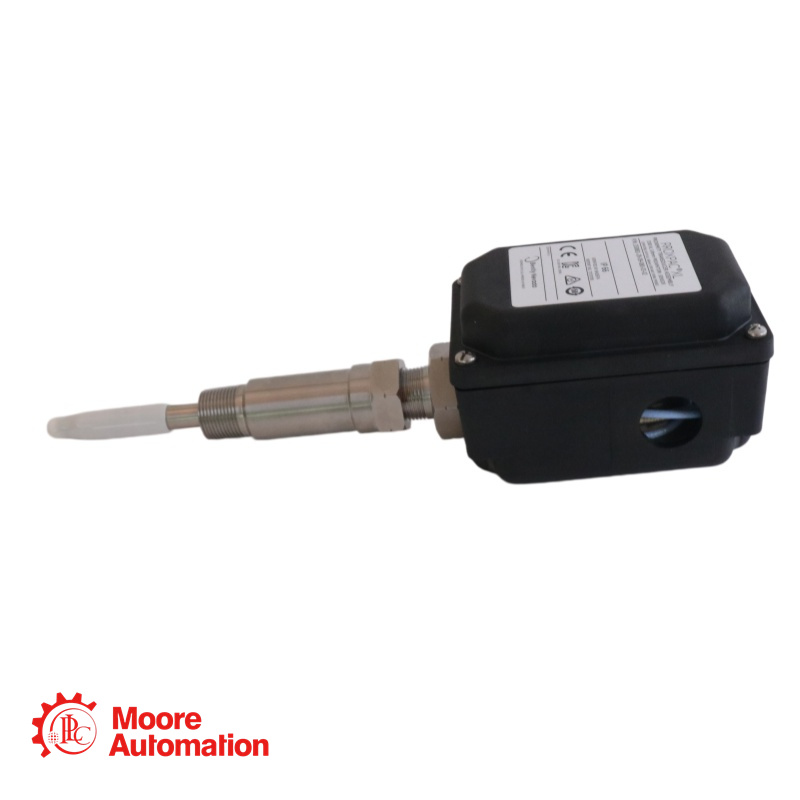

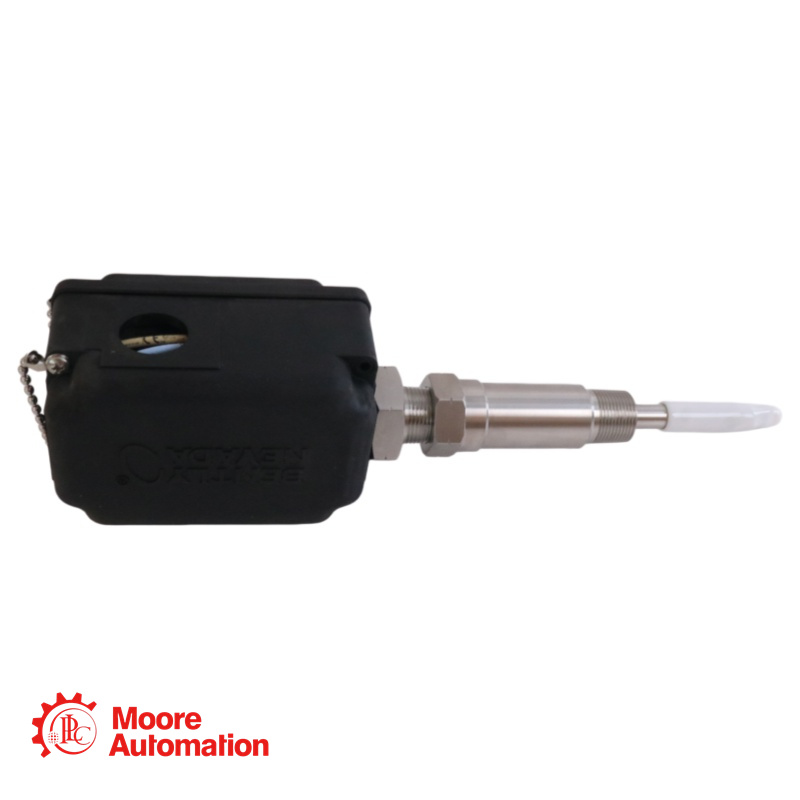

330881-28-00-060-00-02 is a PROXPAC XL Proximity Transducer Assembly (Metric version). It is a self-contained proximity probe system that integrates the following into a single PPS housing:
3300 XL 8 mm Probe (with 1.0-meter integral cable)
3300 XL Proximitor Sensor (mounted inside the housing cover)
Probe Sleeve and Housing Assembly
This design eliminates the need for an external extension cable and a separate Proximitor housing.

Parameters - 330881-28-00-060-00-02

Probe Type:3300 XL 8 mm (Reverse Mount, integrated 1.0 m cable)
Probe Cable Length:1.0 meter (fixed, internal to housing)
Proximitor Sensor:3300 XL Proximitor Sensor (integrated in housing cover)
Standoff Adapter:None
Probe Penetration (Sleeve Length):60 mm
Mounting Thread:3/4-14 NPT
Operating Temperature (Housing/Sensor):-52°C to +100°C (-62°F to +212°F)

Application Areas - 330881-28-00-060-00-02

Radial Vibration Monitoring: Steam turbines, gas turbines, centrifugal compressors, pumps, and generators.
Keyphasor (Phase Reference/Speed) Measurement
Industry Compliance & Environment: Machinery Protection Systems in the Oil & Gas, Petrochemical, and Power Generation industries.

Important Cautions - 330881-28-00-060-00-02

Self-Contained System: The Proximitor sensor is mounted on a support table inside the housing cover. The 1.0-meter probe cable connects directly to the Proximitor, eliminating the probe-to-extension-cable connection point entirely. This improves reliability by removing a potential failure point.
No Extension Cable: The PROXPAC XL is a 1.0-meter system only. It uses a fixed 1.0-meter probe cable internally. It is not compatible with 5-meter or 9-meter system configurations.
Sleeve Support Requirement: The total penetration length is 60 mm (Option CCC = 060). This is well below the 305 mm (12 in) limit, so no additional sleeve support is required.
Fittings Option: Option DD = 00 provides no conduit fittings — only two plugs and two washers are supplied to seal unused housing ports. If conduit connections are required, order appropriate fittings separately or select a different DD option.
Mounting Thread: Option EE = 02 provides 3/4-14 NPT mounting thread. This is the standard for most installations and is required when using the standoff adapter (though this model has none).
