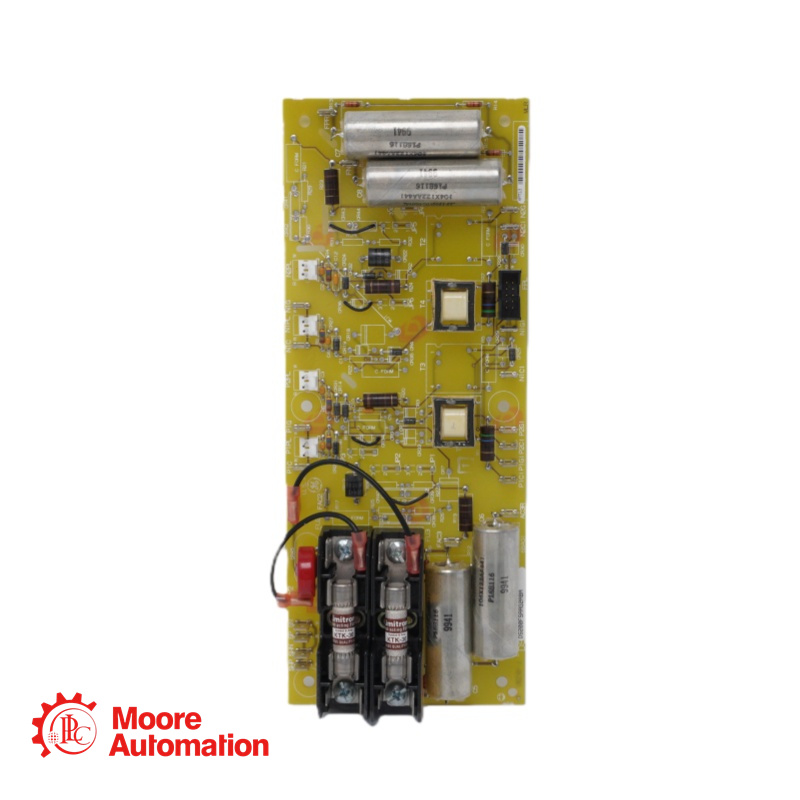

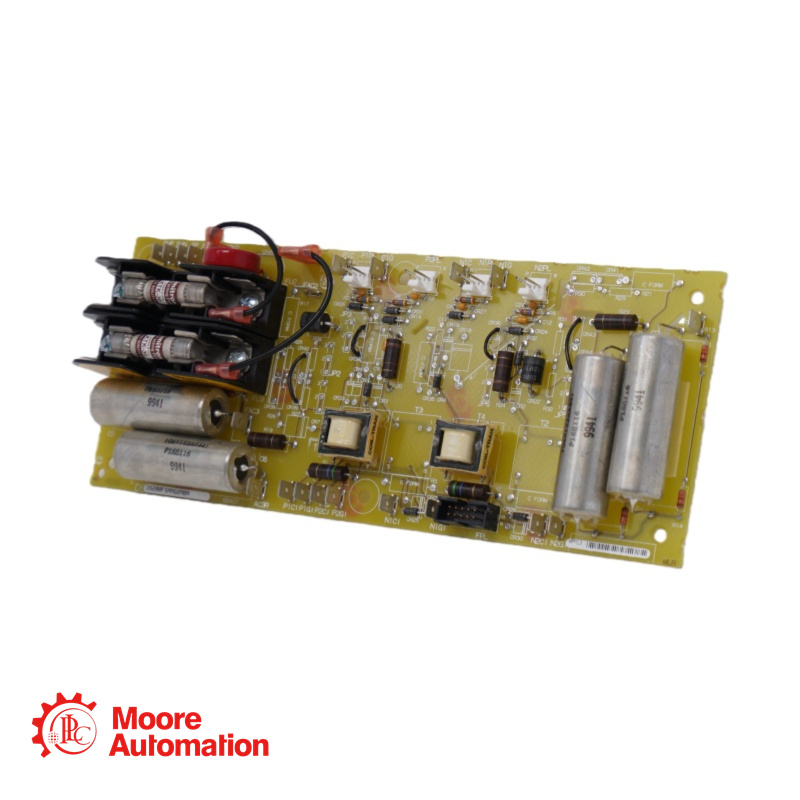

The GE DS200FSAAG2A is a Field Supply Gate Amplifier Board designed for the GE Speedtronic Mark V or Mark VI gas/steam turbine control system.
Nhãn hiệu :
GEmột phần số :
DS200FSAAG2ATrọng lượng :
0.38 kgKích thước :
25.4x10.2x3.5cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Field Supply Gate Amplifier BoardGive you Best Offer - Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Product Parameters
Gate Drive Output:
Voltage: 2–5 V (typical gate trigger voltage)
Current: 2–10 A (peak, pulse‑rated for capacitive gate loads)
Pulse Width: Adjustable, typically 50–200 μs
Isolation: High‑voltage isolation (≥2500 V AC) between control side and power side
Operating Temperature: 0°C to +70°C (control cabinet environment)
Product Description
This board functions as a high‑power interface that drives the gate signals for thyristors or silicon‑controlled rectifiers (SCRs) in the turbine's exciter or static starter circuits. It amplifies low‑level control signals from the regulator boards to the current and voltage levels required to reliably trigger the power semiconductor devices. The board ensures precise timing, isolation, and protection for the gate drive circuits, contributing to stable excitation and turbine startup sequences. It includes diagnostics, status indicators, and protective features to maintain system reliability.
|
