Bently Nevada 3500/22M-01-01-01 Standard Transient Data Interface Module

Product Overview

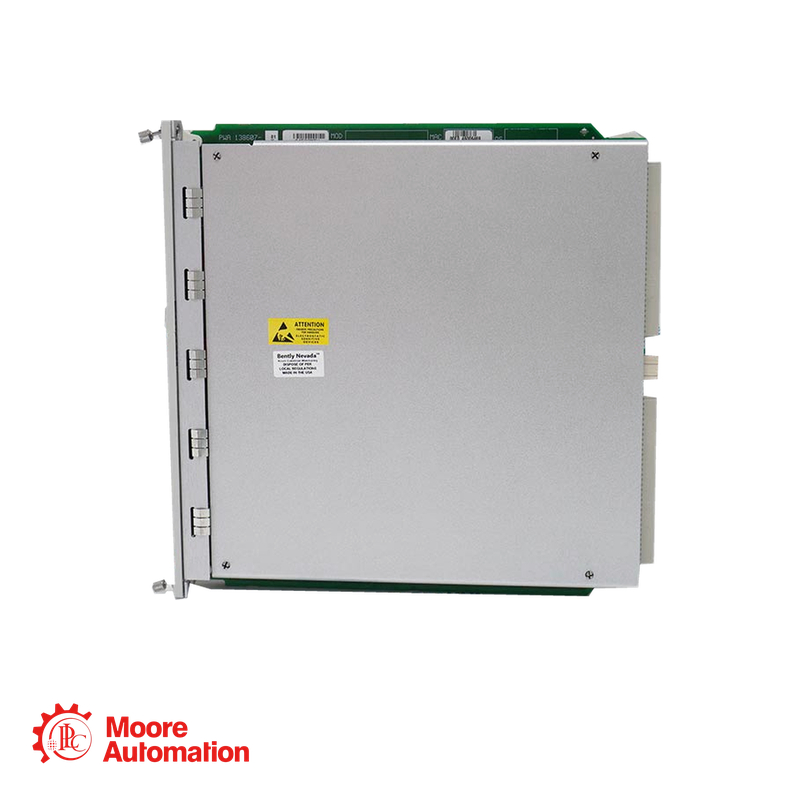

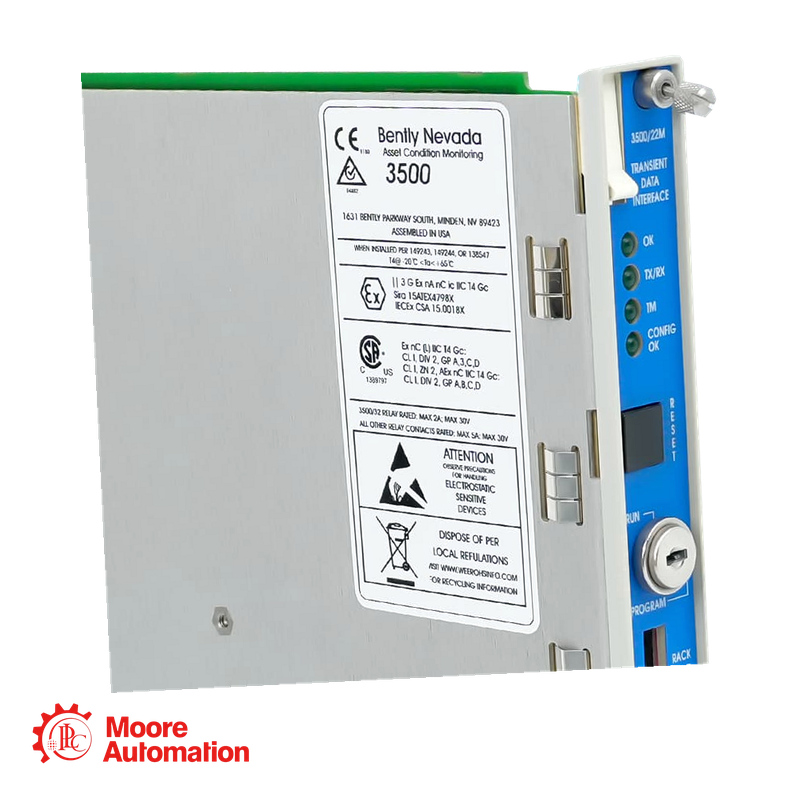

The Bently Nevada 3500/22M-01-01-01 is a Standard Transient Data Interface (TDI) for the 3500 Machinery Protection System. It combines the rack-interface role of a 3500/20 Rack Interface Module with continuous machinery-data collection for compatible configuration and condition-monitoring software. This configuration includes a 10Base-T/100Base-TX Ethernet I/O module for copper-network communication. It installs in Slot 1 beside the rack power supplies and works with compatible 3500 M-series monitor modules to transfer static and waveform-related machinery data to host software.

Order Number Breakdown

Technical Information

Manufacturer: Bently Nevada
Product Line: 3500 Machinery Protection System
Ordering Number: 3500/22M-01-01-01
Product Type: Standard Transient Data Interface (TDI)
Ethernet Standard: IEEE 802.3
Ethernet Connector: RJ-45
Maximum Ethernet Cable Length: 100 m (328 ft)
Front Panel Configuration Port: USB-B
Maximum USB Cable Length: 5 m (16.4 ft)
Power Consumption: 10.5 W
Operating Temperature: -30°C to +65°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95%, non-condensing

Benefits&Features

Application Areas

• Central data interface for Bently Nevada 3500 monitoring racks
• Ethernet communication with condition-monitoring and configuration software
• Machinery condition monitoring and diagnostic data collection
• Steady-state and transient waveform acquisition
• Rotating-equipment monitoring systems using compatible 3500 M-series monitors

Frequently Asked Questions

1. What is the purpose of the 3500/22M-01-01-01?
It is a Standard Transient Data Interface that combines rack-interface functions with machinery-data collection in a Bently Nevada 3500 rack.

2. What connector is used for the Ethernet network?
The Ethernet I/O module uses an RJ-45 connector and supports cable lengths up to 100 m (328 ft).

3. What data can the TDI collect?
Static data capture is standard. Dynamic and high-resolution transient waveform collection is available when the appropriate Dynamic Data Enabling Disk is used.
