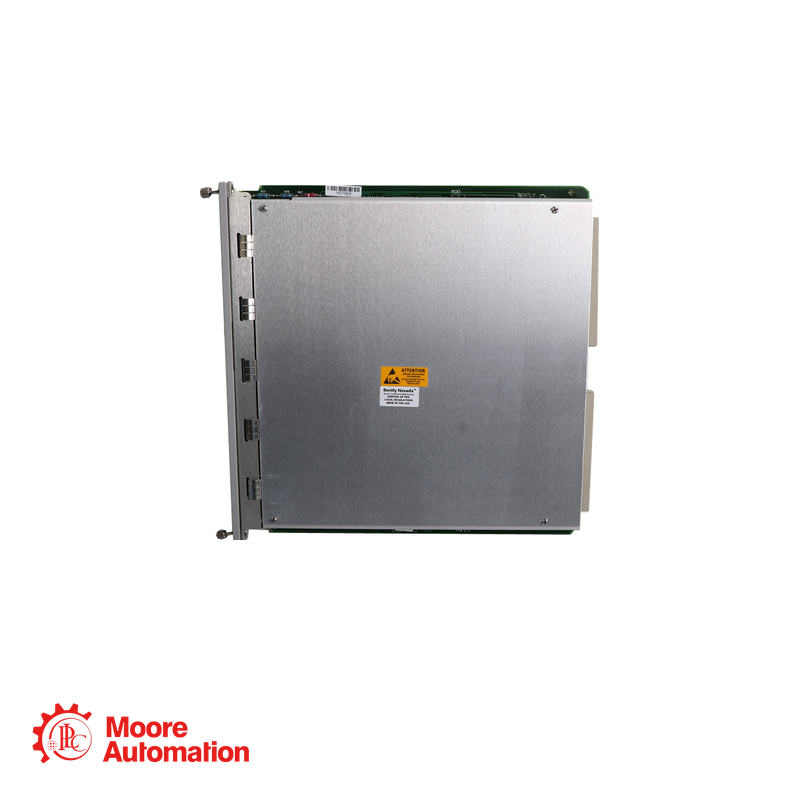

The Bently Nevada 3500/20-01-02-CN is a Standard Rack Interface Module (RIM) for the 3500 Machinery Protection System
Nhãn hiệu :
Bently Nevadamột phần số :
3500/20-01-02-CNTrọng lượng :
1.36 kgKích thước :
24.1 × 2.4 × 9.9 cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Rack Interface Module
|
3500/20-01-02-CN |
Contact |
|
Mobile / WhatsApp |
|
|
Email |
Product Overview
The Bently Nevada 3500/20-01-02-CN is a Standard Rack Interface Module (RIM) for the 3500 Machinery Protection System. It provides the main communication and configuration interface for a single 3500 rack. This configuration combines the Standard RIM with an RS232/RS422 I/O module. It supports serial communication with compatible Bently Nevada host software for rack configuration and machinery-data retrieval. One RIM is required per rack. It installs in slot 1 next to the power supplies and is not part of the critical machinery-monitoring path.
Order Number Breakdown
Position
Code
Description
Product Series
3500/20
Bently Nevada 3500 Rack Interface Module
Rack Interface Type
1
Standard RIM for standard monitoring applications
I/O Module Type
2
I/O module with RS232/RS422 interface
Approval Option
CN
Country-specific approvals option
Technical Information
Manufacturer: Bently Nevada
Product Line: 3500 Machinery Protection System
Ordering Number: 3500/20-01-02-CN
Product Type: Standard Rack Interface Module
Communication Protocol: Bently Nevada proprietary protocol
Maximum Data Rate: 38.4 k baud
RS232 Maximum Cable Length: 30 m (100 ft)
RS422 Maximum Cable Length: 1200 m (4000 ft)
Power Consumption: 4.75 W typical
Operating Temperature: −30°C to +65°C
Storage Temperature: −40°C to +85°C
Relative Humidity: Up to 95%, non-condensing
Benefits&Features
Feature
Benefit
Primary rack interface
Provides the configuration and communication connection for one 3500 rack.
Standard RIM design
Matches standard machinery-monitoring applications.
RS232/RS422 serial I/O
Supports local serial access and longer-distance RS422 links.
38.4 k baud communication
Supports efficient configuration and machinery-data retrieval.
Front-panel RS232 port
Enables local connection to the rack.
Long RS422 cable capability
Supports RS422 cable lengths up to 1200 m (4000 ft).

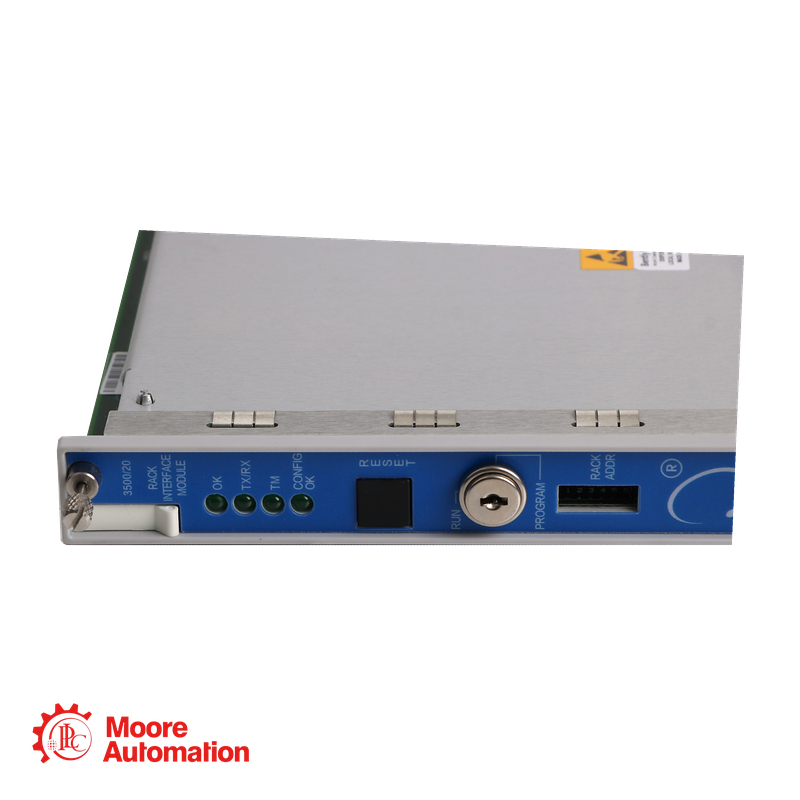

Rack status LEDs
Shows RIM health, communication activity, Trip Multiply and configuration status.
Rack reset function
Clears latched alarms and Timed OK Channel Defeat functions.
Selectable rack addressing
Supports up to 63 rack addresses.
I/O OK relay
Provides a rack-status signal for external annunciation.
Application Areas
• 3500 rack configuration and communication
• Turbine and generator monitoring systems
• Compressor protection racks
• Machinery condition-monitoring networks
• Plant host-data collection
• Multi-rack RS422 communication systems
• Oil and gas, petrochemical and power-generation machinery
Frequently Asked Questions
1. What is the main function of the 3500/20-01-02-CN?
It acts as the primary interface for one 3500 rack, supporting rack configuration, status exchange and machinery-data retrieval.
2. What communication interface is included?
The “02” option provides an I/O module with RS232 and RS422 serial communication capability.
3. Where is this module installed?
The Rack Interface Module installs in slot 1 of the 3500 rack, directly next to the power-supply locations.
4. Does the RIM affect normal monitoring if communication is unavailable?
The RIM is not part of the critical monitoring path. It provides common rack functions and communication access without controlling the normal monitoring path.
