The Bently Nevada 3500/20-01-02-00 is a Standard Rack Interface Module (RIM) for the 3500 Machinery Protection System
Nhãn hiệu :
Bently Nevadamột phần số :
3500/20-01-02-00Trọng lượng :
1.36 kgKích thước :
24.1 × 2.4 × 9.9 cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Rack Interface Module
|
3500/20-01-02-00 |
Contact |
|
Mobile / WhatsApp |
|
|
Email |
Product Overview
The Bently Nevada 3500/20-01-02-00 is a Standard Rack Interface Module (RIM) for the 3500 Machinery Protection System. It serves as the primary communication and configuration interface for one 3500 rack. This model uses an RS232/RS422 I/O module for serial communication with compatible Bently Nevada host software and external communication processors. It installs in rack slot 1 beside the power supplies and supports rack configuration, machinery-data retrieval, status indication and rack-level control functions. One RIM is required per 3500 rack. The standard RIM is intended for normal monitoring applications and is not part of the critical monitoring path.
Order Number Breakdown
Position
Code
Description
Product Series
3500/20
Bently Nevada 3500 Rack Interface Module
Rack Interface Type
1
Standard RIM for standard monitoring applications
I/O Module Type
2
I/O module with RS232/RS422 interface
Agency Approval Option
0
None
Technical Information
Product Line: 3500 Machinery Protection System
Ordering Number: 3500/20-01-02-00
Product Type: Standard Rack Interface Module
Maximum Data Rate: 38.4 k baud
RS232 Maximum Cable Length: 30 m (100 ft)
RS422 Maximum Cable Length: 1200 m (4000 ft)
Power Consumption: 4.75 W typical
Rack Address Capacity: 63 selectable addresses
Operating Temperature: −30°C to +65°C
Storage Temperature: −40°C to +85°C
Relative Humidity: Up to 95%, non-condensing
Benefits&Features
Feature
Benefit
Primary rack interface
Supports configuration and machinery-data retrieval for one 3500 rack.
Standard RIM configuration
Provides the correct rack-interface function for standard monitoring applications.
RS232/RS422 serial I/O
Supports local and long-distance serial communication options.
38.4 k baud communication
Provides efficient configuration and data-transfer capability.
Front-panel RS232 access
Allows local connection for rack configuration and data retrieval.
RS422 communication distance
Supports cable runs of up to 1200 m (4000 ft).
Rack status LEDs

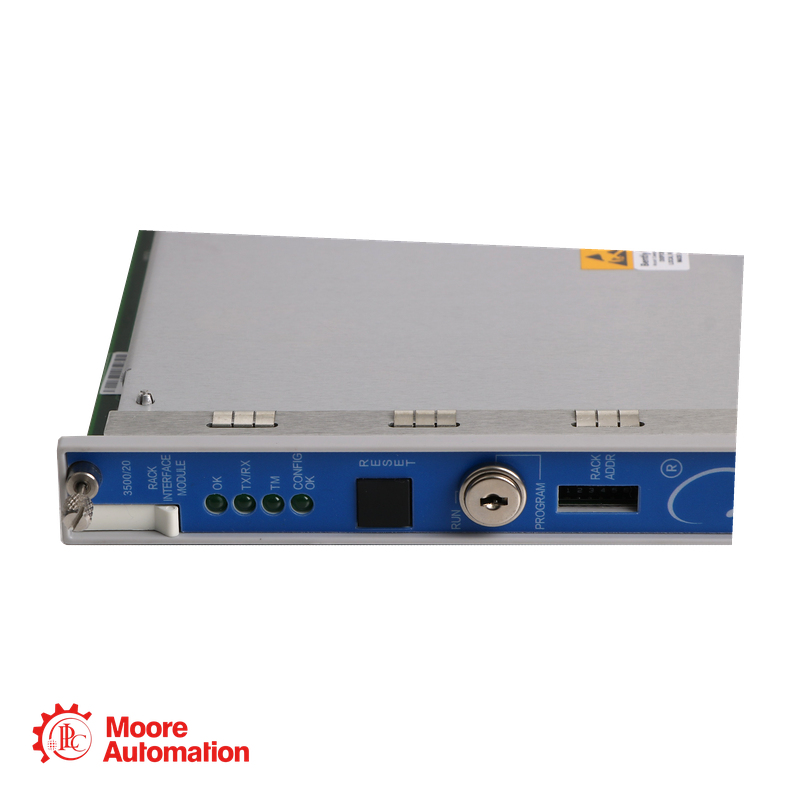

Shows RIM health, communication activity, Trip Multiply status and configuration validity.
Rack reset control
Clears latched alarms and Timed OK Channel Defeat functions in the rack.
Configurable address switch
Supports up to 63 selectable rack addresses.
I/O OK relay
Provides a rack-status contact for external annunciation.
Application Areas
• 3500 rack configuration and communication
• Turbine and generator machinery-monitoring systems
• Compressor protection and monitoring racks
• Plant host-data collection from a 3500 system
• Multi-rack serial communication networks
• Machinery diagnostic and status-data retrieval
• Oil and gas, petrochemical and power-generation applications
Frequently Asked Questions
1. What is the role of the 3500/20-01-02-00?
It is the primary rack interface for one Bently Nevada 3500 rack. It supports rack configuration and communication with compatible host systems.
2. Where is the RIM installed in a 3500 rack?
The RIM must be installed in slot 1 of the rack, next to the power-supply positions.
3. Does the RIM affect the rack’s normal monitoring path?
The RIM provides common rack functions, configuration access and communication. It is not part of the critical monitoring path and does not affect normal monitoring operation.
