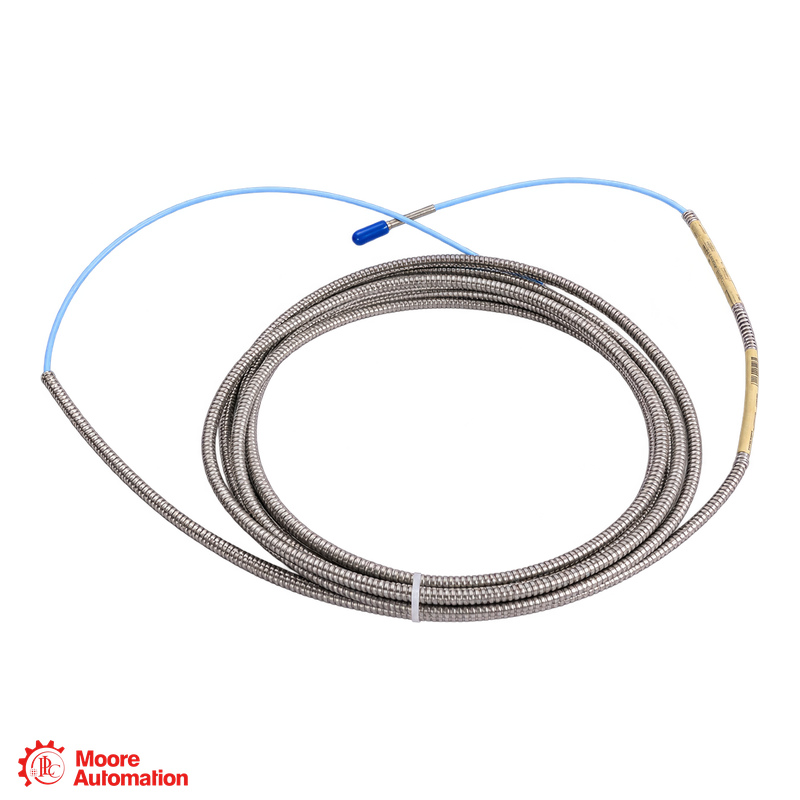

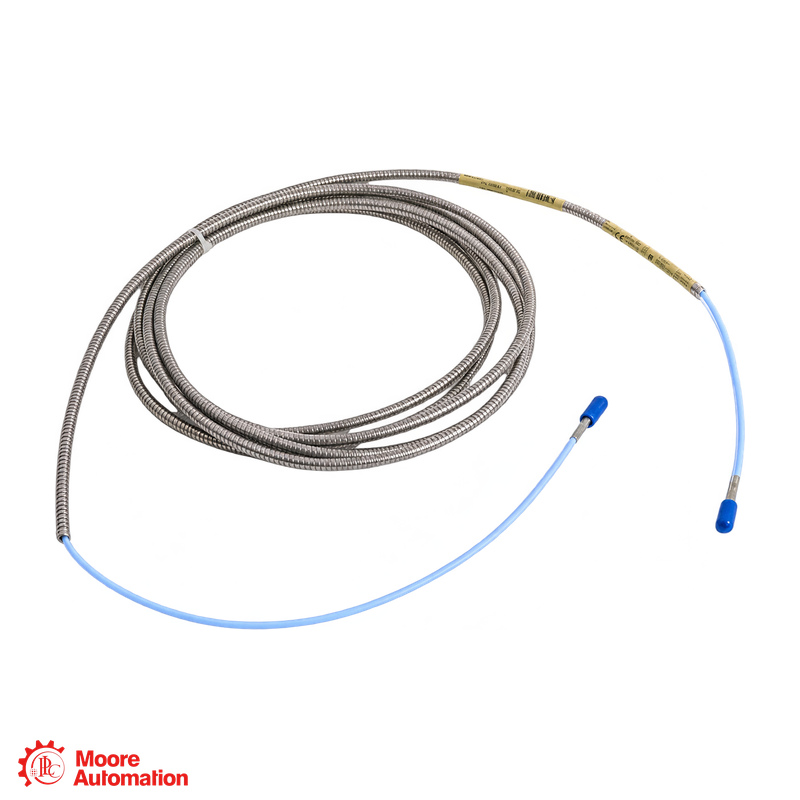

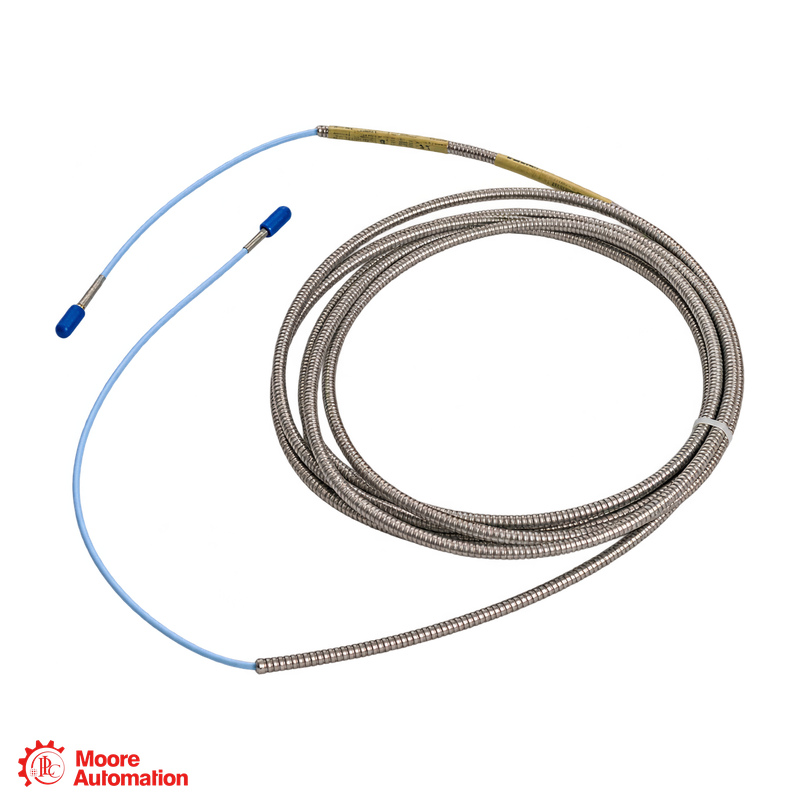

Bently Nevada 330930-045-03-00 3300 XL NSv Extension Cable
Bently Nevada 330930-045-03-00 3300 XL NSv Extension Cable
Bently Nevada 330930-045-03-00 3300 XL NSv Extension Cable
Bently Nevada 330930-045-03-00 3300 XL NSv Extension Cable

Bently Nevada 330930-045-03-00 3300 XL NSv Extension Cable

3300 XL NSv EXTENSION CABLE

330930-045-03-00

330930-045-03-00 — a Bently Nevada 3300 XL NSv extension cable, 4.5 m long, without stainless-steel armor and with a connector protector.

CABLE LENGTH4.5 m
ARMORWithout
PROTECTORIncluded
APPROVALNot required
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL NSv EXTENSION CABLE
3300 XL NSv EXTENSION CABLE

330930-045-03-00

4.5 m · unarmored · connector protector

3300 XL NSv Extension Cable

NSv EXTENSION CABLE
330930-045-03-00 — A Bently Nevada 3300 XL NSv extension cable, 4.5 m long, without stainless-steel armor and with a connector protector.
CONFIGURATION NOTE
The manufacturer ordering table defines 330930 as the NSv extension cable, 045 as 4.5 m, 03 as unarmored cable with connector protector, and 00 as agency approval not required.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330930
Cable familyNSv extension cable
045
Cable length4.5 m
03
Cable optionNo armor; connector protector
00
Agency approvalNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL NSv EXTENSION CABLE

Engineering data at a glance

Click “+” to expand more specifications.

CABLE LENGTH4.5 m
ARMORWithout
PROTECTORIncluded
APPROVALNot required
Manufacturer-defined order configuration.
Configuration noteThe manufacturer ordering table defines 330930 as the NSv extension cable, 045 as 4.5 m, 03 as unarmored cable with connector protector, and 00 as agency approval not required.
General Information −
BrandBently Nevada
Part number330930-045-03-00
Product type3300 XL NSv Extension Cable
Product family3300 XL NSv
Cable length4.5 m
ArmorWithout stainless steel armor
Cable Configuration ＋
Cable length4.5 m
Connector/cable option03
Stainless steel armorNot included
Connector protectorIncluded
Agency approvalNot required
System length ruleProbe + cable = sensor total length
Electrical and Mechanical ＋
Center conductor resistance0.220 Ω/m
Shield resistance0.066 Ω/m
Cable capacitance69.9 pF/m typical
Connector constructionGold-plated brass ClickLoc
Silicone tapeSupplied with NSv extension cable
System Integration ＋
Transducer system3300 XL NSv
Companion probe3300 NSv proximity probe
Companion sensor3300 XL NSv Proximitor Sensor
ApplicationMachinery vibration and position
FAQ

Questions Buyers Ask Most

What configuration does 330930-045-03-00 specify?＋

330930-045-03-00 uses the 045 length option for 4.5 m and option 03 for an unarmored cable with a connector protector. Option 00 means agency approval is not required. The manufacturer ordering table defines each of these positions.

What physical connection does 330930-045-03-00 use?＋

330930-045-03-00 uses Bently Nevada gold-plated ClickLoc connectors in the NSv transducer system. The 03 cable option is unarmored and includes a connector protector. Match the complete cable reference and system length before connecting it to the probe and Proximitor Sensor.

Which machinery measurements can use 330930-045-03-00?＋

330930-045-03-00 is a cable component of the 3300 XL NSv system used for radial vibration, axial position, and phase-reference measurements on suitable machines. The cable is not a standalone sensor; it must be combined with the NSv probe and Proximitor Sensor.

How should 330930-045-03-00 be matched in the transducer system?＋

330930-045-03-00 must be paired with a compatible NSv proximity probe and Proximitor Sensor. Bently Nevada states that probe length plus extension-cable length must equal the sensor total length. Verify the installed component lengths before replacing only the cable.

What order details matter for 330930-045-03-00?＋

For the complete 330930-045-03-00 cable, record the 4.5 m length, unarmored 03 connector option, and 00 approval field. Match these values to the installed NSv probe and sensor total length before ordering a replacement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330930-045-03-00 label, the NSv probe length, Proximitor Sensor system length and quantity with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330930-045-03-00

The Bently Nevada 3300 XL NSv system datasheet lists the 330930 base and every option position in 330930-045-03-00.

Official manufacturer datasheet

Bently Nevada 3300 XL NSv Proximity Transducer System Datasheet 147385 defines the 330930 base model and the option values used in 330930-045-03-00.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL NSv SYSTEM CONTEXT

How 330930-045-03-00 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 330930-045-03-00 is a Bently Nevada NSv extension cable connecting a proximity probe to a compatible Proximitor Sensor. Its 4.5 m cable length must be combined with the selected probe length to match the sensor total length.

Bently Nevada · BRAND
Bently Nevada 3300 XL NSv SeriesPRODUCT FAMILY · NSv EXTENSION CABLE
CABLE LENGTH

4.5 m

The 045 option specifies a 4.5 m NSv extension cable.

CABLE CONSTRUCTION

Unarmored

Option 03 is without stainless-steel armor and includes a connector protector.

SYSTEM MATCHING

Probe + Cable

Probe length plus extension-cable length must equal the Proximitor Sensor total length.

System relationship: the NSv extension cable connects the proximity probe to its Proximitor Sensor; together, the components measure shaft vibration or position when their total lengths are matched.
APPLICATION AREAS

Functions and application roles for 330930-045-03-00

Compressor MonitoringThe NSv system supports machinery monitoring on centrifugal air, refrigeration and process-gas compressors.
Radial VibrationThe NSv transducer chain measures radial vibration and radial position on suitable small shafts.
APPLICATION CENTER 330930-045-03-00 3300 XL NSv Extension Cable
Axial PositionThe NSv system supports axial or thrust-position measurement in tight installation spaces.
Phase ReferenceA properly matched NSv transducer system can provide Keyphasor phase-reference signals.
