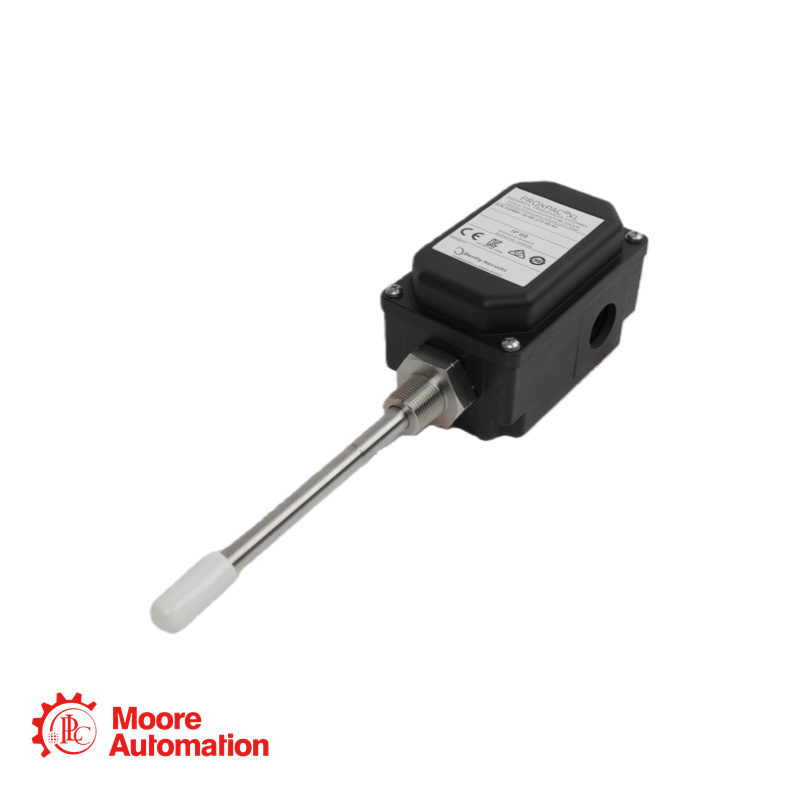

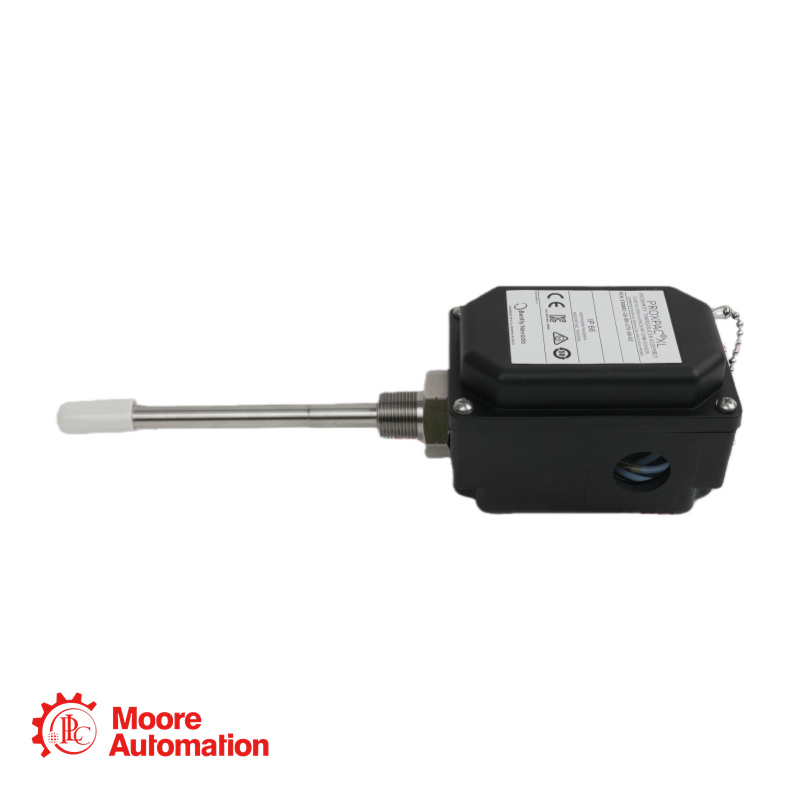

Bently Nevada 330881-BR-05-090-00-02 Proximity Transducer

Description

Specification

This is a metric PROXPAC XL self-contained transducer housing with a non-standard probe/approvals configuration indicated by code BR.  It features a 50mm standoff adapter, 90mm probe penetration, and uses 3/4-14 NPT mounting threads.  The assembly is constructed from durable composite material rated IP66 for harsh environments.

Base Assembly Model: 330881 (PROXPAC XL Proximity Transducer, Metric)
Standoff Adapter Length (B): 05 - 50 mm
Probe Penetration Length (C): 090 - 90 mm
Fittings Option (D): 00 - No fittings;  includes two plugs and two washers
Mounting Thread Option (E): 02 - 3/4-14 NPT (required if ordering Standoff Adapter Option)
Housing Material: UV-resistant, glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
Environmental Rating: Type 4X, IP66
Integrated Proximitor Sensor: 3300 XL Proximitor Sensor, 1-meter system length
Total Probe Penetration (B+C): 140 mm.  This is less than 300 mm (12 inches), so additional sleeve support is not required based on the standard rule.
Probe Operating Temperature (if a probe is included per option A): -52°C to +177°C (-62°F to +351°F)
Housing/Proximitor Operating Temperature: -52°C to +100°C (-62°F to +212°F)
