Bently Nevada 330703-000-060-10-02-05 3300 XL 11 mm Probe

Product Overview

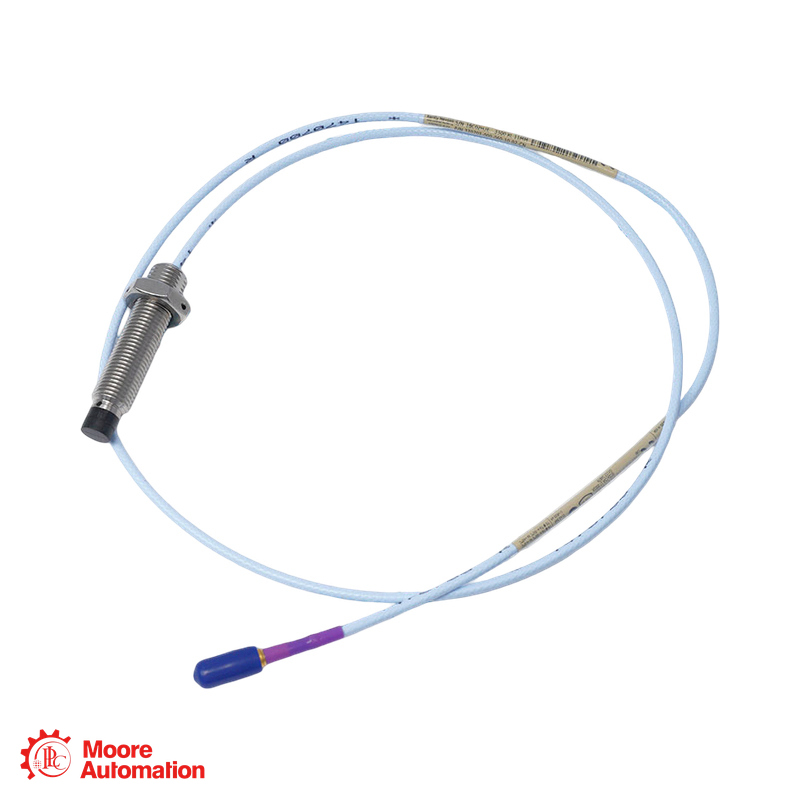

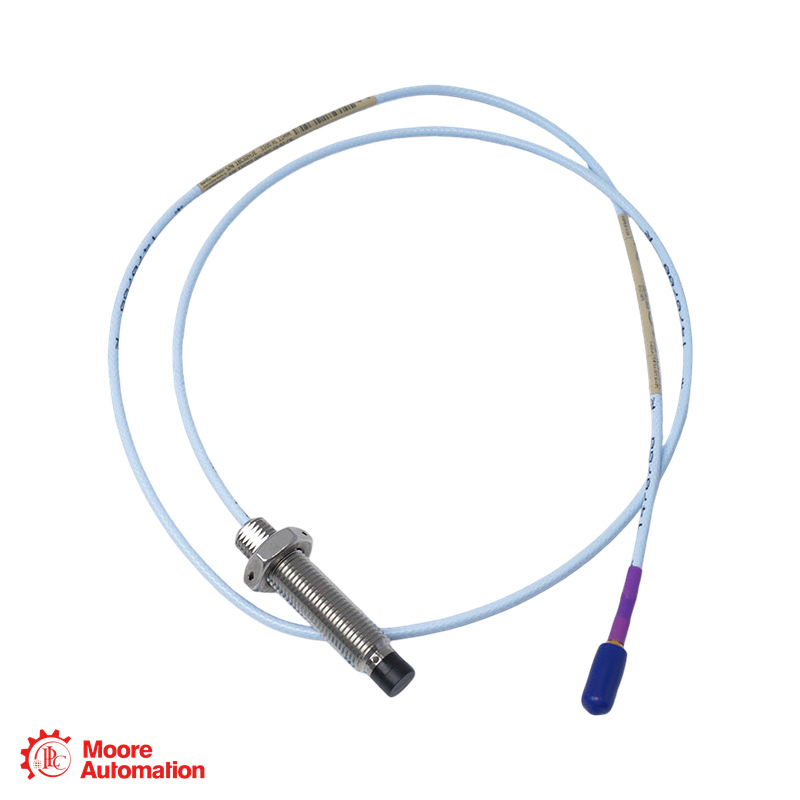

The Bently Nevada 330703-000-060-10-02-05 is a 3300 XL 11 mm proximity probe with an M14 × 1.5 threaded, unarmored case. It senses the distance to a metal target without contact and forms the probe element of a 3300 XL 11 mm proximity transducer system. That system is used for shaft position and vibration measurements where the 11 mm probe’s longer linear range is useful, including axial position, differential expansion, and rod-position measurements.
This configuration has a 60 mm overall case length, a 1 m standard probe cable, and a miniature coaxial ClickLoc connector without a connector protector. The probe’s case and cable configuration are defined by the complete ordering number, not just the 330703 base number.

Model Number Breakdown

Model: 330703-000-060-10-02-05 — 3300 XL 11 mm proximity probe
Probe Configuration: 330703 — M14 × 1.5 thread, without armor
Unthreaded Length Option: 000 — 0 mm
Overall Case Length Option: 060 — 60 mm
Total Length Option: 10 — 1.0 m (3.3 ft)
Connector and Cable-Type Option: 02 — Miniature coaxial ClickLoc connector, standard cable; no connector protector
Agency Approval Option: 05 — Multiple Approvals

Features

• 11 mm probe tip for non-contact shaft position and vibration measurement
• M14 × 1.5 threaded, unarmored probe case
• 1 m standard probe cable
• Miniature coaxial ClickLoc connector without connector protector
• Supports a 4.0 mm linear range as part of a matched 3300 XL 11 mm transducer system

Product Identification Configuration

Environmental Capabilities

Probe operating and storage temperature: −52°C to +177°C
Standard probe-cable operating and storage temperature: −52°C to +177°C

Industries Served

• Power Generation: Shaft-position and differential-expansion measurements on turbines and other rotating equipment.
• Oil & Gas: Position monitoring on turbine-driven machinery and reciprocating compressors, including rod-position applications.
• Petrochemicals: Non-contact shaft measurements on critical rotating machinery used in continuous processes.
• Heavy Industry: Position, speed, and phase-reference measurements where a 3300 XL 11 mm transducer system is specified.
