330190-085-01-05 Overview

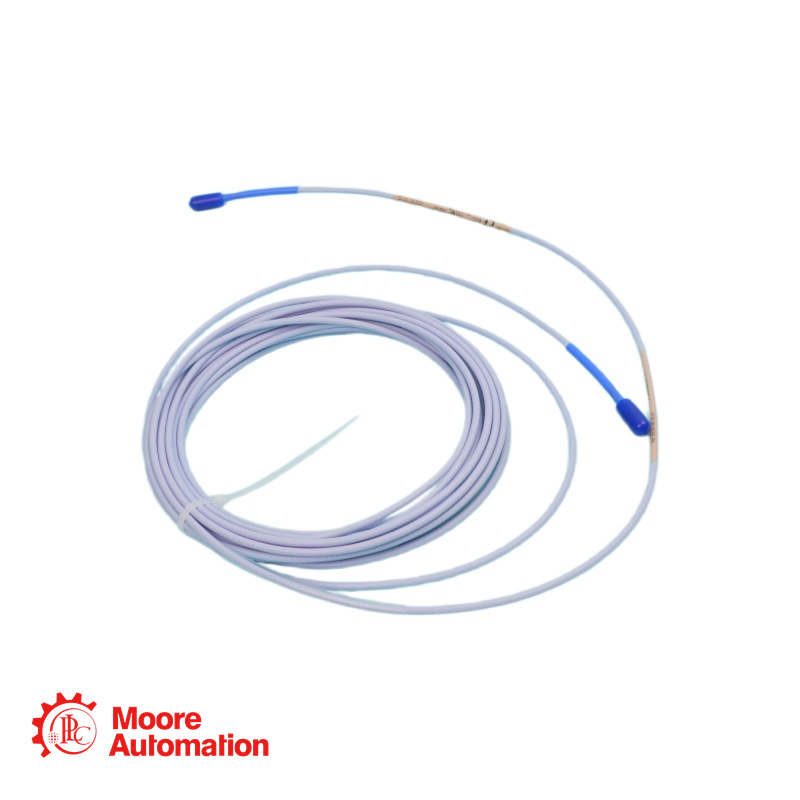

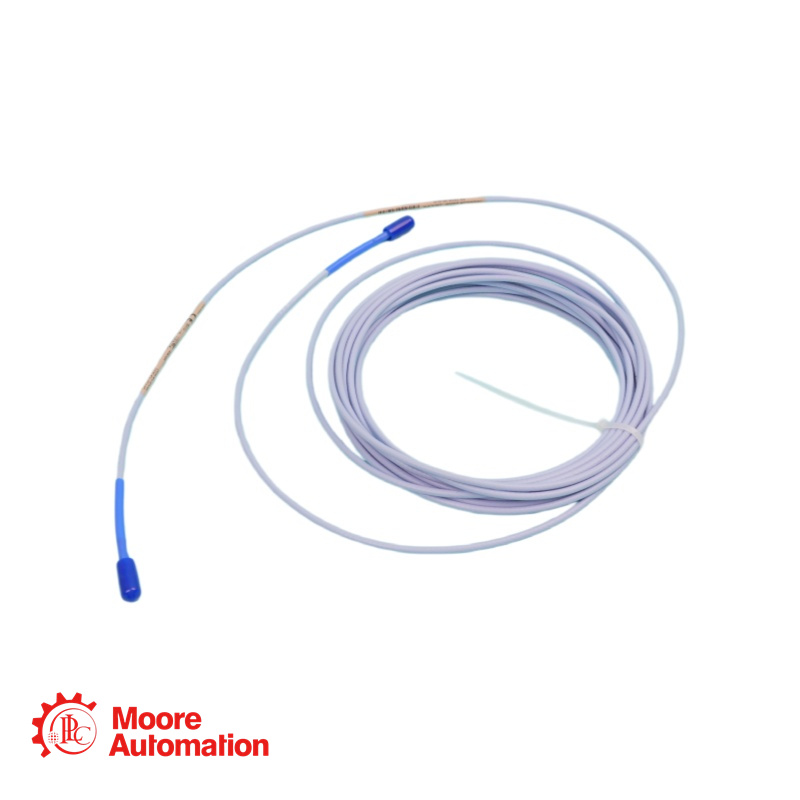

Bently Nevada 330190-085-01-05 is a 3300 XL Extended Temperature Range (ETR) Extension Cable. 330190-085-01-05 extended temperature range (ETR) probe and ETR extension cable are available for applications in which either the probe lead or extension cable may exceed the standard 177˚C (350˚F) temperature specification. The 330190-085-01-05 ETR probe has an extended temperature rating for up to 218˚C (425˚F). The 330190-085-01-05 ETR extension cable rating is up to 260˚C (500˚F). Both the ETR probe and cable are compatible with standard temperature probes and cables, for example, you can utilize an ETR probe with the 330130 extension cable. The ETR system uses the standard 3300 XL Proximitor Sensor. Note that when you use any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system.

330190-085-01-05 Parameters

－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－

Cable Type: 75 Ω triaxial, Perfluoroalkoxy (PFA) insulated

Armor: Flexible stainless steel armor with PFA outer jacket
Connector Type: Gold-plated brass ClickLoc™ miniature coaxial
Connector Material: Gold-plated brass or gold-plated beryllium copper
Temperature Range: -52°C to +260°C (-62°F to +500°F)
Minimum Bend Radius: 25.4 mm (1.0 in)
Maximum Connector Torque: 0.565 N·m (5 in·lb)

FAQ about 330190-085-01-05

1. What is the difference between the standard 330130 extension cable and the 330190 ETR cable?

The primary difference is the temperature rating and insulation material. The standard 330130 cable uses FEP insulation and is rated to +177°C (+350°F) . The 330190 ETR cable uses PFA insulation and is rated to +260°C (+500°F) , making it suitable for high-temperature environments.

2. What does the "-05" agency approval option mean?

The "-05" option indicates that this extension cable carries multiple hazardous area approvals, including CSA for North America, and ATEX and IECEx for international use. This allows it to be used in intrinsically safe and non-incendive applications when properly installed.

3. Can this ETR cable be used with standard temperature probes?

Yes, the ETR cable is compatible with standard temperature probes. However, note that when you use any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system. The system specifications will be those of the ETR system, not the standard system.

4. What is the minimum bend radius for this cable?

The minimum bend radius is 25.4 mm (1.0 inch) , both with and without armor. Exceeding this bend radius may damage the cable internally.

5. What type of connectors does this cable use?

It uses gold-plated brass ClickLoc™ miniature coaxial connectors. These connectors require only finger-tight torque (they will "click" when tight), and the locking mechanism prevents loosening from vibration. No special tools are required for installation or removal.

6.How do I ensure the total system length is correct when using this extension cable?

When ordering, make sure that the extension cable length and the probe length, when added together, equal the Proximitor Sensor total length. For example, a 0.5m probe with an 8.5m extension cable would require a 9.0m Proximitor Sensor.
