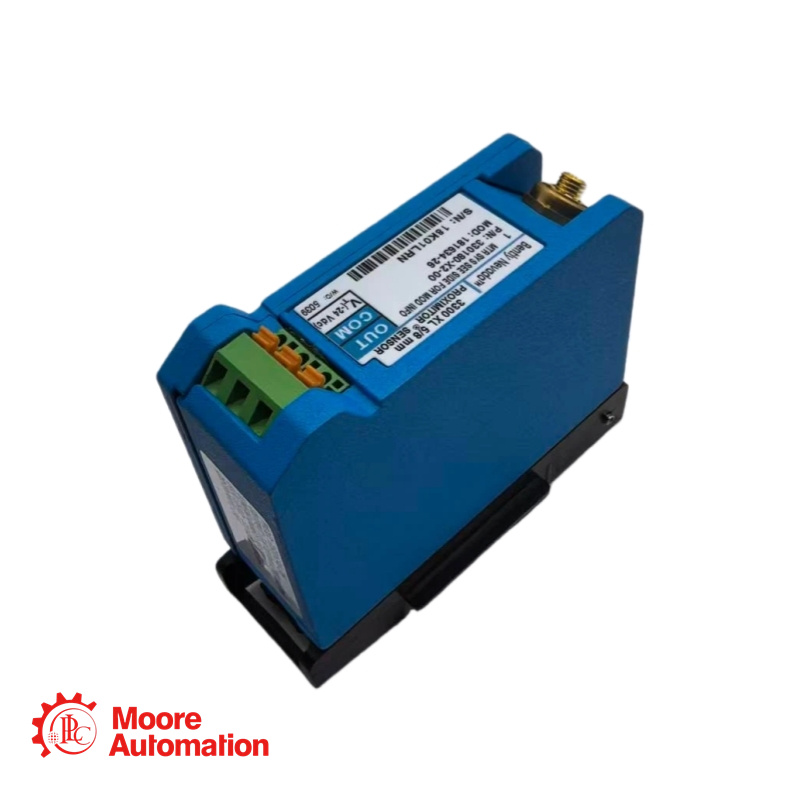

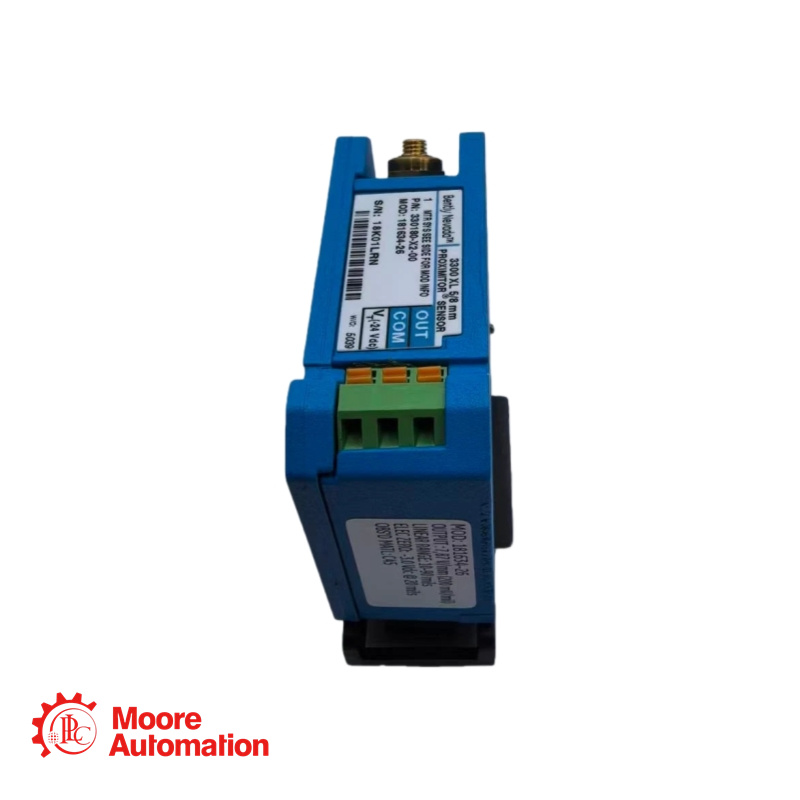

Bently Nevada 330180-X2-00 MOD:181634-02 Proximity Sensor

Description

Specification

The Bently Nevada 330180 Proximity Sensor incorporates numerous improvements over previous designs.  Its physical packaging allows you to use it in high-density DIN-rail installations.  You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting "footprint" with older Proximitor Sensor designs.  The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates.  The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals.  The 3300 XL Proximitor Sensor's improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.

Length and Mounting Configuration: System length of 1.0 meter (3.3 feet) with no mounting hardware provided (Option X2).
Agency Approvals: No specific agency certifications required (Option 00).
Electrical Input: Accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
Power Supply: Requires -17.5 Vdc to -26 Vdc when installed with non-incendive circuit per drawing 140979, with maximum consumption of 12 mA. Operates at -23 Vdc to -26 Vdc with barriers. Operation above -23.5 Vdc may reduce linear range.
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
Output Resistance: 50 Ω.
Temperature Range (Operating): -52°C to +100°C (-62°F to +212°F).
Temperature Range (Storage): -52°C to +105°C (-62°F to +221°F).
Frequency Response: (0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring.
