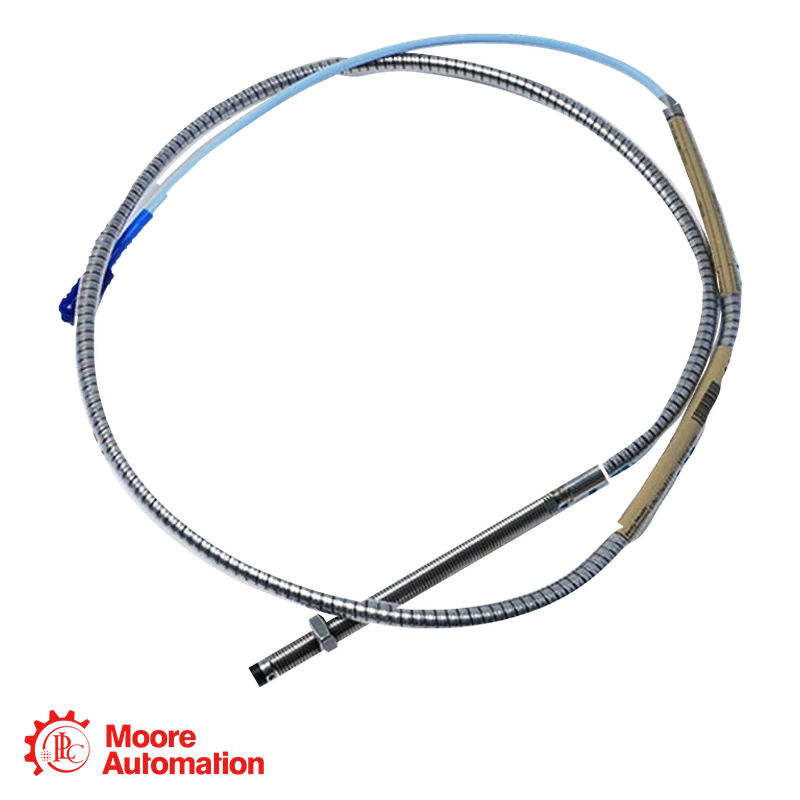

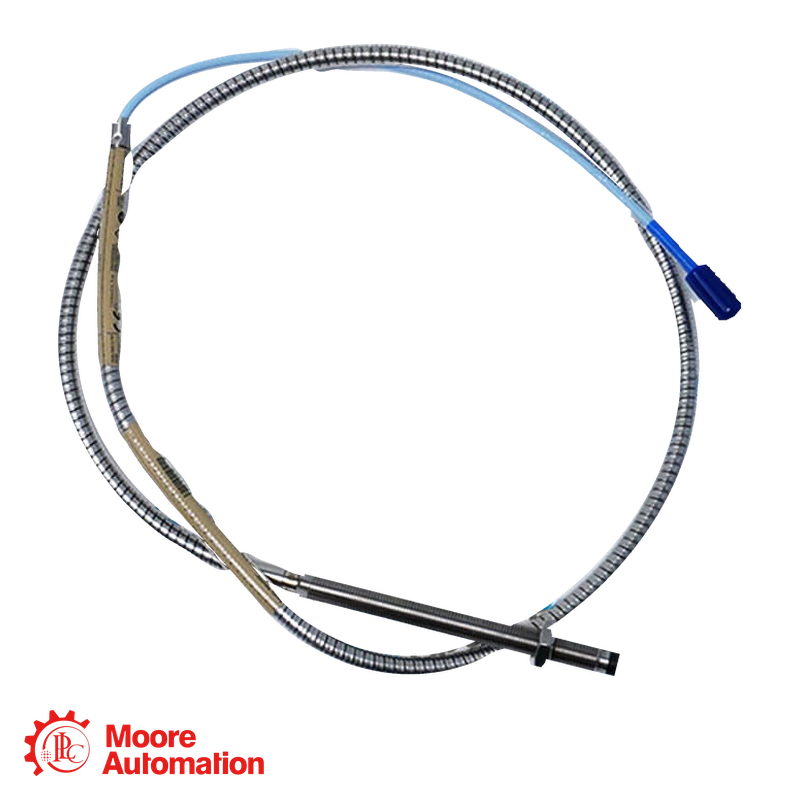

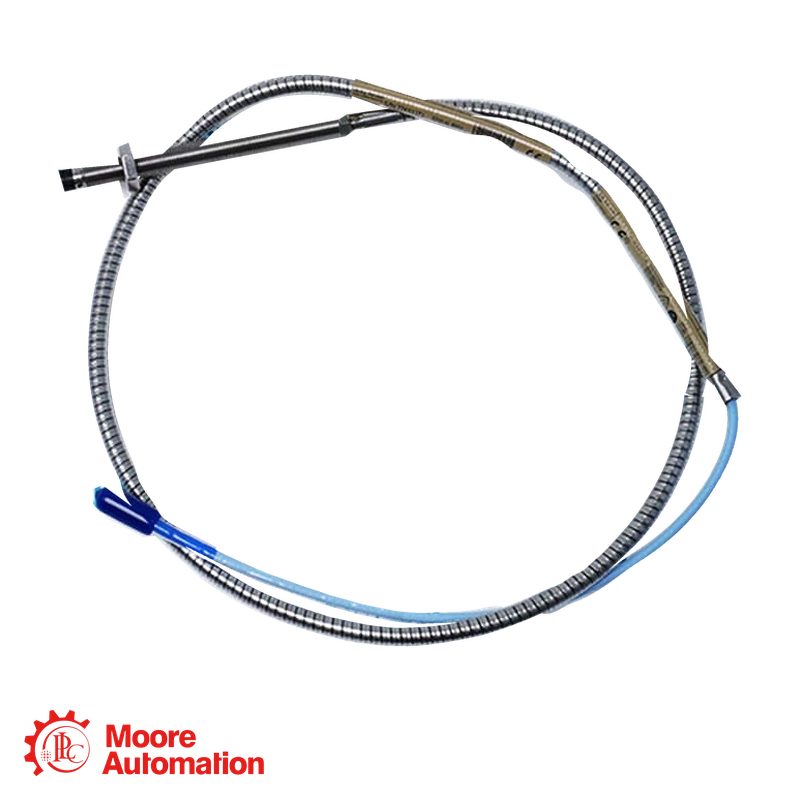

 /Bently Nevada 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe

3300 XL · 8 MM PROXIMITY PROBE

330104-00-14-10-11-00

330104-00-14-10-11-00 — A 3300 XL 8 mm proximity probe with M10 x 1 thread and armor, 0 mm unthreaded length, 140 mm overall case length, 1.0 m total length, a miniature coaxial ClickLoc connector with connector protector, FluidLoc cable and no agency approval requirement.

PROBE3300 XL 8 mm
CASE LENGTH140 mm
TOTAL LENGTH1.0 m
APPROVALNOT REQUIRED
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330104-00-14-10-11-00

M10 x 1 · with armor · 1.0 m total length

3300 XL 8 mm Proximity Probe

PROBE CONFIGURATION
330104-00-14-10-11-00 — A 3300 XL 8 mm proximity probe with M10 x 1 thread and armor, 0 mm unthreaded length, 140 mm overall case length, 1.0 m total length, a miniature coaxial ClickLoc connector with connector protector, FluidLoc cable and no agency approval requirement.
CONFIGURATION NOTE
330104 = 3300 XL 8 mm probe with M10 x 1 thread and armor; 00 = 0 mm unthreaded length; 14 = 140 mm overall case length; 10 = 1.0 m total length; 11 = miniature coaxial ClickLoc connector with connector protector and FluidLoc cable; and 00 = agency approval not required.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330104
Base model3300 XL 8 mm probe · M10 x 1 · with armor
00
Unthreaded length0 mm
14
Overall case length140 mm
10
Total length1.0 m · 3.3 ft
11
Connector and cableClickLoc connector with protector · FluidLoc cable
00
Agency approvalsNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

OFFICIAL DATASHEET REFERENCE
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 mm
CASE LENGTH140 mm
TOTAL LENGTH1.0 m
APPROVALSNot required
Configuration from manufacturer ordering data.
Configuration check Confirm the complete 330104 order code, thread, armor, unthreaded and case lengths, total cable length, connector/cable option, approvals and compatible Proximitor Sensor before replacement.
General Information −
BrandBently Nevada
Part number330104-00-14-10-11-00
Product type3300 XL 8 mm proximity probe
Product family3300 XL 8 mm
Measurement principleEddy-current proximity measurement
Probe constructionStandard-mount probe with armor
Configuration Dimensions ＋
Unthreaded length0 mm
Overall case length140 mm
Total length1.0 m (3.3 ft)
Connection and Approvals ＋
ConnectorMiniature coaxial ClickLoc connector with connector protector
Case threadM10 x 1
Cable typeFluidLoc cable
ArmorIncluded
Agency approvalsNot required
System Context ＋
The 3300 XL 8 mm probe with armor and FluidLoc cable connects through its protected ClickLoc coaxial interface to the extension cable and compatible 3300 XL 8 mm Proximitor Sensor. The complete probe-plus-extension-cable length must match the sensor system length.
Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194. The official ordering data defines base 330104 and options 00, 14, 10, 11 and 00.
FAQ

Questions Buyers Ask Most

What is 330104-00-14-10-11-00 used for?＋

330104-00-14-10-11-00 is a 3300 XL 8 mm probe with armor for non-contact shaft vibration and position measurement as part of a compatible probe, extension-cable and Proximitor Sensor system.

What does the 330104-00-14-10-11-00 code specify?＋

For 330104-00-14-10-11-00, 330104 identifies the M10 x 1 probe with armor; the first 00 is 0 mm unthreaded length; 14 is 140 mm case length; 10 is 1.0 m total length; 11 is the ClickLoc connector with connector protector and FluidLoc cable; and the final 00 means agency approval is not required.

Can 330104-00-14-10-11-00 be substituted with a similar part number?＋

Do not substitute 330104-00-14-10-11-00 by appearance alone. Match the full order code, thread, armor option, physical lengths, connector/cable type, approvals, target material, extension cable and Proximitor Sensor system length.

Which connector and cable configuration is used by 330104-00-14-10-11-00?＋

330104-00-14-10-11-00 uses a miniature coaxial ClickLoc connector with connector protector and FluidLoc cable. Its probe lead is configured for a 1.0 m total length and must connect to a compatible extension cable and Proximitor Sensor.

What should I provide for a 330104-00-14-10-11-00 quotation?＋

Send the complete 330104-00-14-10-11-00 nameplate, quantity, target material, thread, required probe and extension-cable lengths, Proximitor Sensor system length, hazardous-area requirements and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
330104-00-14-10-11-00

Official manufacturer reference and configuration context for Bently Nevada 330104-00-14-10-11-00.

Official manufacturer documentation

Bently Nevada Datasheet 141194 identifies 330104 as the M10 x 1 probe with armor and defines options 00, 14, 10, 11 and 00 used in 330104-00-14-10-11-00.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Use the complete 330104-00-14-10-11-00 order number because its suffixes define unthreaded length, overall case length, total length, connector/cable type and agency approvals.

PROXIMITY SYSTEM RELATIONSHIP

How 330104-00-14-10-11-00 Fits into a Proximity Measurement Chain

Bently Nevada is the manufacturer. 330104-00-14-10-11-00 is a 3300 XL 8 mm proximity probe with M10 x 1 thread and armor for a compatible extension-cable and Proximitor Sensor system.

Bently Nevada · BRAND
3300 XL 8 mm ProbePROXIMITY SYSTEM COMPONENT
PROXIMITY PROBE

3300 XL 8 mm Probe

The 330104 base identifies a standard-mount 3300 XL 8 mm probe with M10 x 1 thread and armor.

SYSTEM CABLE

Matched Extension Cable

The probe connects to a 3300 XL extension cable selected so probe length plus extension-cable length equals the Proximitor Sensor system length.

SENSOR INTERFACE

3300 XL Proximitor Sensor

A compatible 3300 XL 8 mm Proximitor Sensor supplies the conditioned proximity signal to the machinery-monitoring input.

System relationship: the probe, extension cable, Proximitor Sensor total length, target material, field wiring and monitor input must be compatible with the installed application.
APPLICATION AREAS

Application areas for 330104-00-14-10-11-00

Shaft Radial Vibration MonitoringMeasures relative shaft vibration on compatible rotating machinery and monitoring inputs.
Axial Position MeasurementMeasures axial shaft position when the installed target, mounting geometry and monitor input are compatible.
APPLICATION CENTER 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe
Shaft Position and Gap MeasurementProvides a conditioned signal proportional to probe-to-target gap for compatible position-monitoring applications.
Machinery Protection SystemsFeeds compatible machinery protection and condition-monitoring instruments with the conditioned proximity signal.
