PROBE AT MACHINE
8 mm Armored Probe
The 8 mm tip senses noncontacting shaft displacement through its 3/8-24 UNF threaded case.

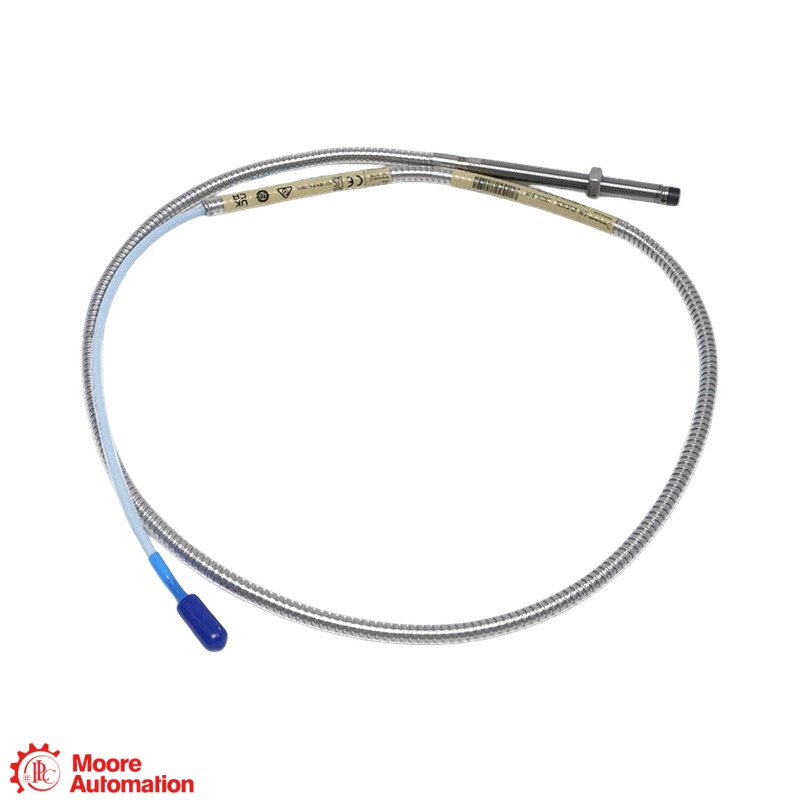

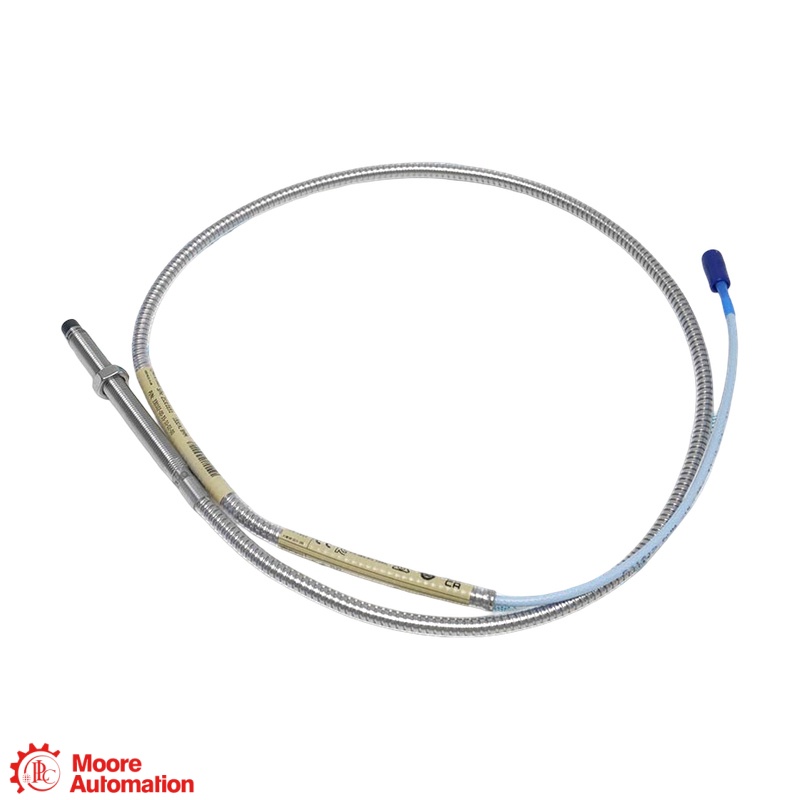

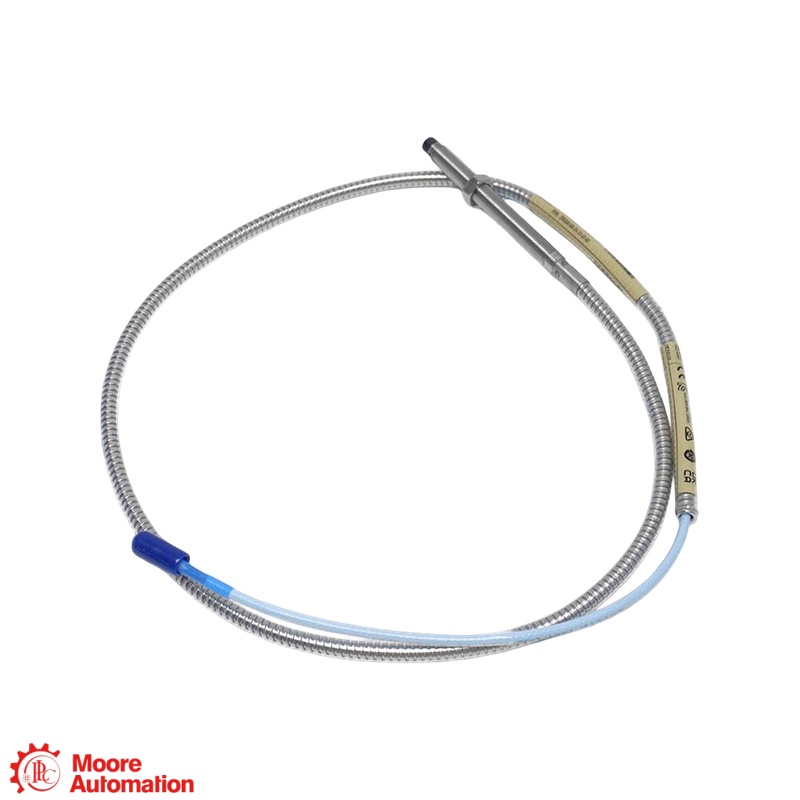

330102-00-30-10-01-05 — a Bently Nevada 3300 XL 8 mm armored proximity probe with a 3/8-24 UNF case thread, 0.0 in unthreaded length, 3.0 in overall case, 1.0 m lead, protected ClickLoc connector and CSA, ATEX and IECEx approvals.
Click “+” to expand more specifications.
Official Bently Nevada ordering information identifies the 3300 XL 8 mm probe family and decodes the six configuration fields. Check the full system length, extension cable and site approvals before installation.
Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AN lists the 330102 armored probe and the unthreaded-length, case-length, total-length, connector/cable and approval ordering options.
OPEN OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Ordering-code meanings are based on official Bently Nevada datasheet 141194 Rev. AN; confirm the current approval guide and installation manual before ordering.
Bently Nevada is the manufacturer. 330102-00-30-10-01-05 is an armored 8 mm probe. Its lead connects to a length-matched extension cable when required, then to a compatible Proximitor sensor; the sensor output goes to the machinery monitor.
The 8 mm tip senses noncontacting shaft displacement through its 3/8-24 UNF threaded case.
Combine the 1.0 m probe lead with the correct extension cable if required by the selected Proximitor system length.
The compatible Proximitor conditions the signal for the selected machinery monitor.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete model, complete suffix, quantity and delivery destination.
