 /Bently Nevada 330101-23-41-10-02-05 3300 XL 8 mm Proximity Probe

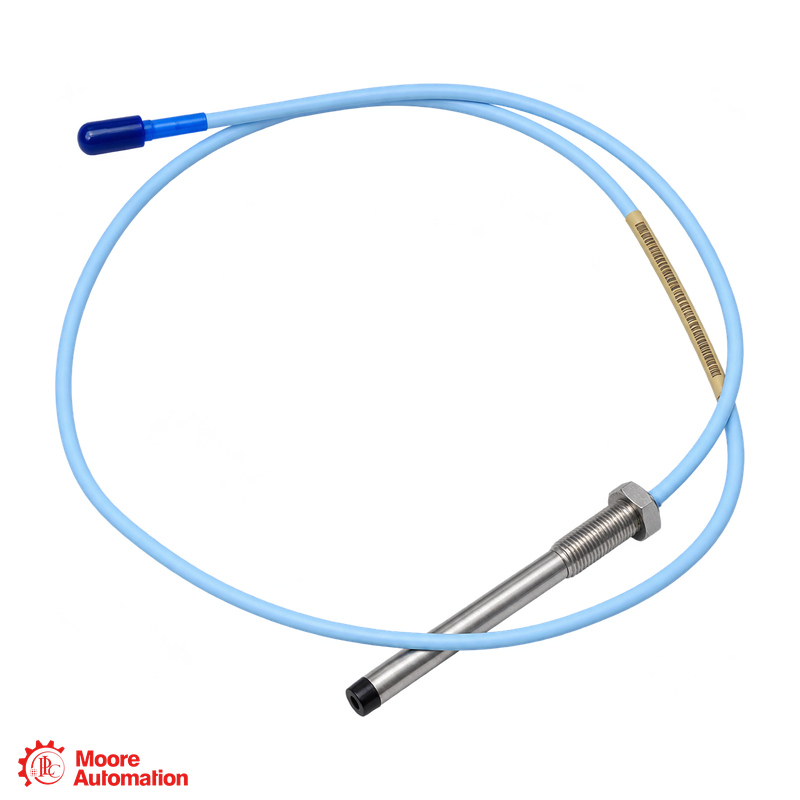

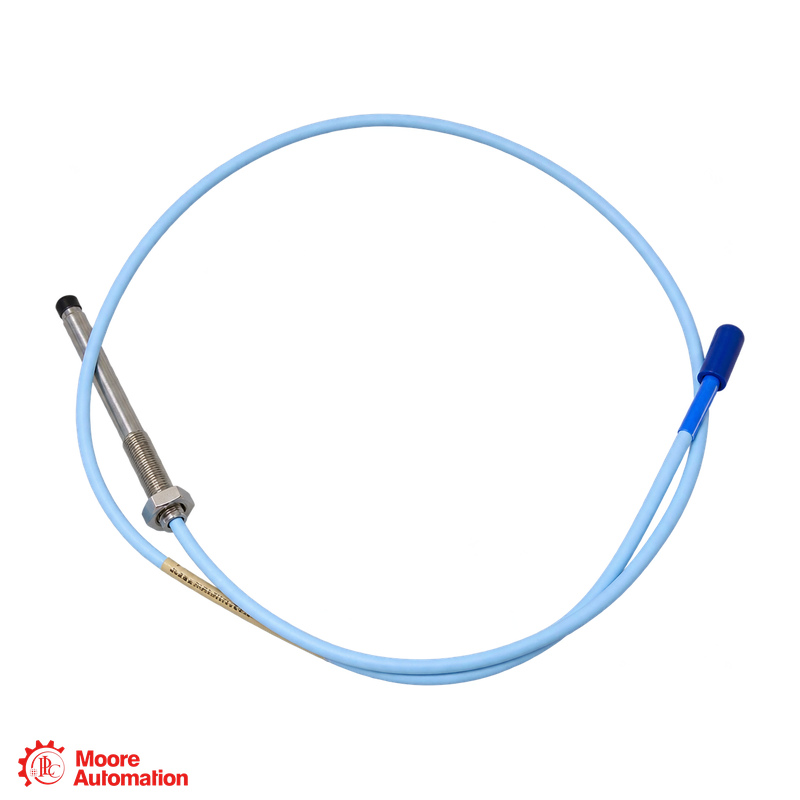

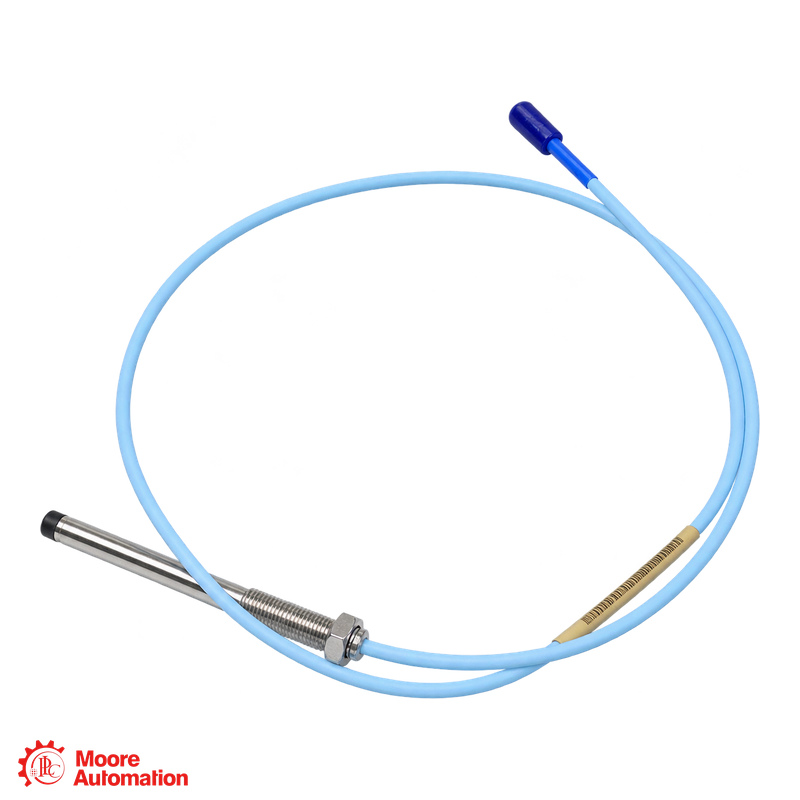

Bently Nevada 330101-23-41-10-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-23-41-10-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-23-41-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-23-41-10-02-05 3300 XL 8 mm Proximity Probe

3300 XL SERIES · 8 MM PROXIMITY PROBE

330101-23-41-10-02-05

330101-23-41-10-02-05 — a Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF threads, 2.3 in unthreaded length, 4.1 in overall case length, 1.0 m standard cable and CSA, ATEX and IECEx approval option.

THREAD3/8-24 UNF
CABLE1.0 m
CASE4.1 in
FREE LEN.2.3 in
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROBE
3300 XL 8 MM SERIES

330101-23-41-10-02-05

3/8-24 UNF · 1.0 m cable · approval option 05

3300 XL 8 mm Proximity Probe

3300 XL 8 MM PROXIMITY PROBE
330101-23-41-10-02-05 — A Bently Nevada 3300 XL 8 mm probe with 3/8-24 UNF threads, 2.3 in unthreaded length, 4.1 in overall case length and a 1.0 m standard cable.
CONFIGURATION NOTE
330101 identifies the 3300 XL 8 mm probe with 3/8-24 UNF threads and no armor; 23 specifies 2.3 in unthreaded length; 41 specifies 4.1 in overall case length; 10 selects 1.0 m total probe length; 02 specifies a standard cable with miniature coaxial ClickLoc connector; 05 selects CSA, ATEX and IECEx approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330101
Probe family3300 XL 8 mm probe; 3/8-24 UNF thread; no armor
23
Unthreaded length2.3 in
41
Overall case length4.1 in
10
Total probe length1.0 m (3.3 ft)
02
Connector and cableMiniature coaxial ClickLoc connector; standard cable
05
Agency approvalsCSA, ATEX and IECEx
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

THREAD3/8-24 UNF
CABLE1.0 m
CASE4.1 in
FREE LEN.2.3 in
Manufacturer-defined 3300 XL probe configuration.
Configuration note330101 identifies the 3300 XL 8 mm probe with 3/8-24 UNF threads and no armor; 23 specifies 2.3 in unthreaded length; 41 specifies 4.1 in overall case length; 10 selects 1.0 m total probe length; 02 specifies a standard cable with miniature coaxial ClickLoc connector; 05 selects CSA, ATEX and IECEx approvals.
General Information −
BrandBently Nevada
Part number330101-23-41-10-02-05
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm
Probe thread3/8-24 UNF
Total probe length1.0 m (3.3 ft)
Probe Configuration ＋
Unthreaded length2.3 in
Overall case length4.1 in
ConnectorMiniature coaxial ClickLoc
Cable typeStandard cable
Connector protectorNot included (option 02)
Agency approvalsCSA, ATEX, IECEx
Connection and Environment ＋
Probe tip diameter8 mm
ArmorNone
Probe operating/storage-52 to +177 °C
Connector fasteningFinger-tight ClickLoc
System length1.0 m (probe only)
FAQ

Questions Buyers Ask Most

What configuration does 330101-23-41-10-02-05 specify?＋

330101-23-41-10-02-05 is a 3300 XL 8 mm probe with 3/8-24 UNF threads and no armor. Codes 23 and 41 specify 2.3 in unthreaded length and 4.1 in overall case length; 10, 02 and 05 define total length, connector/cable and approvals.

What cable length is selected for 330101-23-41-10-02-05?＋

330101-23-41-10-02-05 uses total probe length option 10, which specifies 1.0 m (3.3 ft). Bently Nevada identifies a 1 m 3300 XL system as probe-only, without an extension cable.

Which connector and cable are specified by 330101-23-41-10-02-05?＋

330101-23-41-10-02-05 uses option 02: a miniature coaxial ClickLoc connector with standard cable, without the optional connector protector.

Which approvals are selected for 330101-23-41-10-02-05?＋

330101-23-41-10-02-05 uses agency approval option 05, listed by Bently Nevada for CSA, ATEX and IECEx approvals.

What mounting and temperature details apply to 330101-23-41-10-02-05?＋

330101-23-41-10-02-05 has a 3/8-24 UNF threaded probe case with 2.3 in unthreaded length and 4.1 in overall case length. The standard probe operating and storage range in the manufacturer datasheet is -52 to +177 °C.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330101-23-41-10-02-05 label, installed 3300 XL system length, machine mounting details, quantity and application with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330101-23-41-10-02-05

The Bently Nevada 3300 XL 8 mm datasheet defines the 330101 probe and each ordering option used in 330101-23-41-10-02-05.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 defines the 330101 8 mm probe and the unthreaded length, case length, total length, connector/cable and approval options in 330101-23-41-10-02-05.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL PROXIMITY TRANSDUCER CONTEXT

How 330101-23-41-10-02-05 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 330101-23-41-10-02-05 is a 3300 XL 8 mm proximity probe. Its 3/8-24 UNF threaded case, 1.0 m standard cable and ClickLoc connector are selected by the complete order number. In a 1 m transducer system the probe connects to the matching Proximitor Sensor without an extension cable.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SeriesPRODUCT FAMILY · PROXIMITY PROBE
PROBE CASE

3300 XL 8 mm

Code 330101 specifies a 3300 XL 8 mm probe with 3/8-24 UNF thread and no armor.

PROBE CABLE

1.0 m

Code 10 specifies 1.0 m total probe length.

MOUNTING THREAD

3/8-24 UNF

The 330101 probe case uses a 3/8-24 UNF thread.

System relationship: the 330101 probe is the sensing element of a 3300 XL 8 mm proximity transducer system; a 1 m system uses the probe with a matching Proximitor Sensor and no extension cable.
APPLICATION AREAS

Functions and application roles for 330101-23-41-10-02-05

Radial VibrationProvides non-contact shaft-position input when used in a complete 3300 XL 8 mm system for radial vibration monitoring.
Keyphasor MeasurementCan be used as the proximity sensing element for Keyphasor phase-reference measurement in a correctly configured 3300 XL system.
APPLICATION CENTER 330101-23-41-10-02-05 3300 XL 8 mm Proximity Probe
1 m Probe SystemThe 1.0 m probe connects to a matching Proximitor Sensor without an extension cable.
Threaded Probe MountingUses a 3/8-24 UNF threaded case with 2.3 in unthreaded and 4.1 in overall case length.
