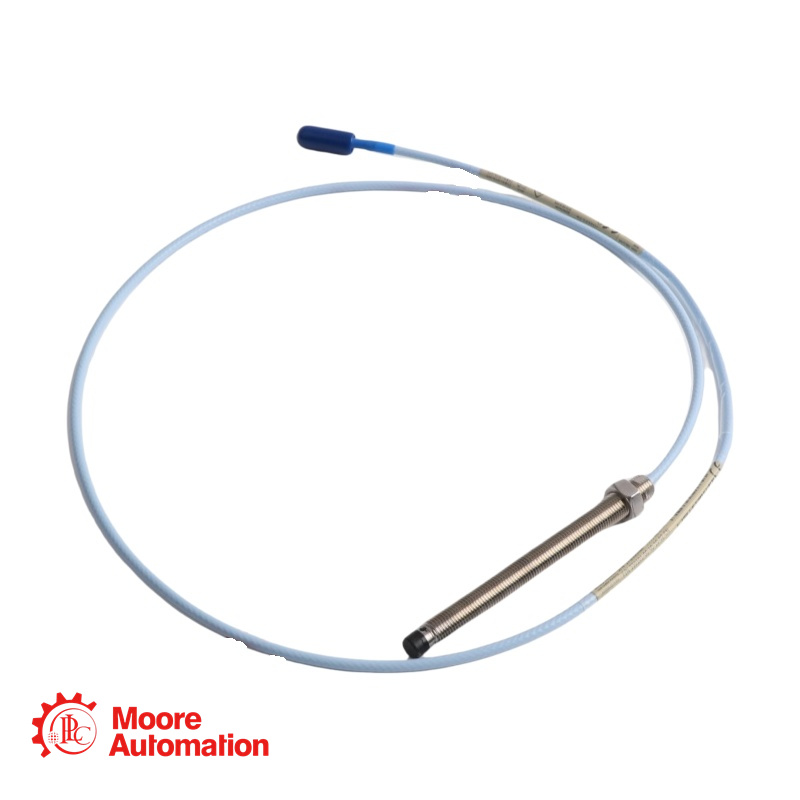

Bently Nevada 330101-00-48-10-02-00 Proximity Probe

We’d Love to Hear From You

Sales Manager: Frida
Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

About 330101-00-48-10-02-00

Base model: 330101 (3300 XL 8 mm Probe, 3/8‑24 UNF thread, without armor)
AA = 00: Unthreaded length = 0.0 in (minimum)
BB = 48: Overall case length = 4.8 in
CC = 10: Total probe cable length = 1.0 meter
DD = 02: Connector and Cable Type = Miniature coaxial ClickLoc connector, standard cable (no connector protector)
EE = 00: Agency Approval Option = Not required (standard compliance only, e.g., CE, RoHS)

Thread: 3/8‑24 UNF.
Armor: No.
Cable: 75 Ω triaxial, FEP insulated.
Probe Tip Material: PPS.
Case Material: AISI 303/304 Stainless Steel.
Operating Temperature: Standard: -52°C to +177°C.
Linear Range: 2.0 mm.
Scale Factor: 7.87 V/mm ±5% (for 1‑meter or 5‑meter systems).
Thread Engagement Limit: 0.563 in max for 3/8‑24 threads.
