The Bently Nevada 3300/20-05-03-01-00-00 is a dual thrust position monitor designed for continuous measurement of shaft axial position
Nhãn hiệu :
Bently Nevadamột phần số :
3300/20-05-03-01-00-00Trọng lượng :
1.2 kgKích thước :
5.1 × 20.3 × 33.0 cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Dual Thrust Position Monitor
|
GET THE BEST PRICE |
SALES CONTACT |
|
Contact Person |
Frida |
|
|
|
|
☎ Mobile / WhatsApp |
Product Overview

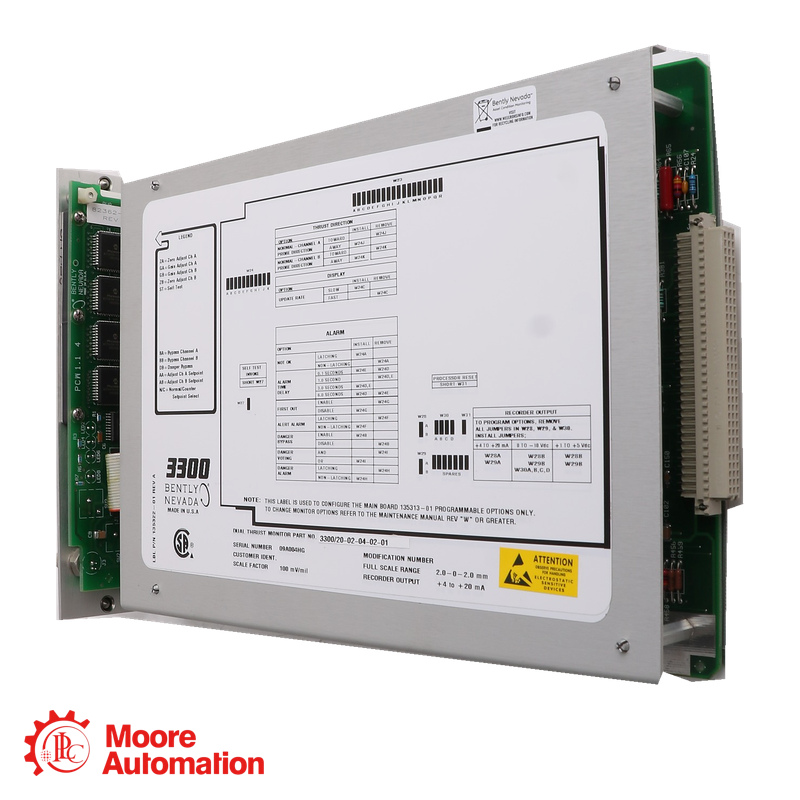

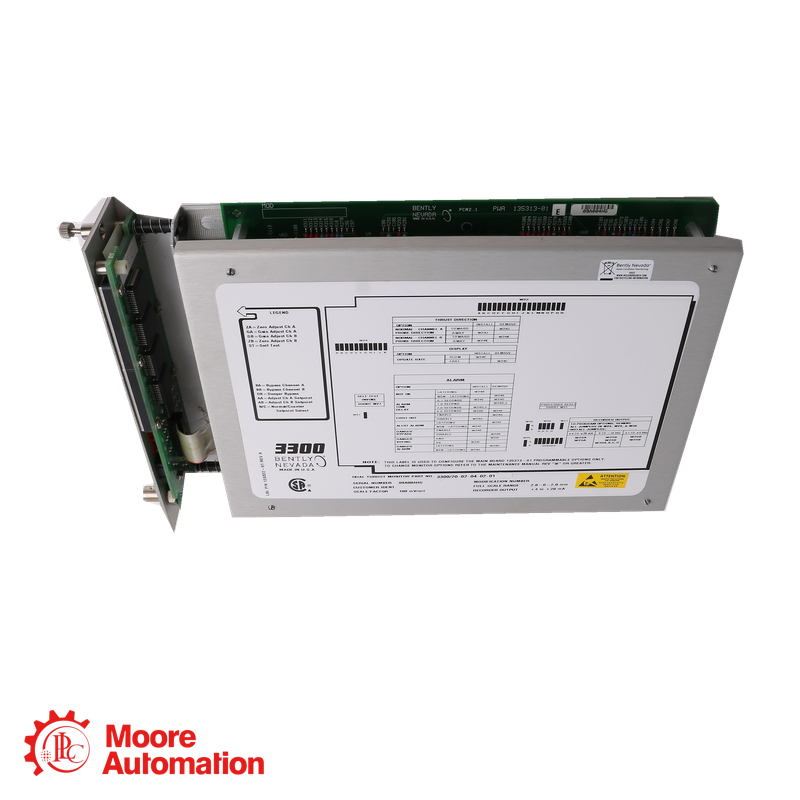

The Bently Nevada 3300/20-05-03-01-00-00 is a dual thrust position monitor designed for continuous measurement of shaft axial position. Its two independent measurement channels help operators observe changes in shaft movement relative to the machine’s axial clearance and identify conditions that may indicate thrust bearing problems. This configuration provides a 50-0-50 mil measurement range and works with 7200 Series 14 mm or 3300 HTPS Proximitor systems at a sensitivity of 100 mV/mil. The module includes epoxy-sealed alarm relays and occupies one position in a 3300 monitoring rack.
Order Number Breakdown
3300/20 — Dual Thrust Position Monitor
05 — 50-0-50 mil full-scale range
03 — For 7200 Series 14 mm or 3300 HTPS Proximitor systems; 100 mV/mil sensitivity
01 — Epoxy-sealed alarm relay option
00 — Agency approval not required
00 — No safety barrier
Technical Information
|
Parameter |
Value |
|
Manufacturer |
Bently Nevada |
|
Product Line |
3300 System |
|
Ordering Number |
3300/20-05-03-01-00-00 |
|
Product Type |
Dual Thrust Position Monitor |
|
Measurement Channels |
2 independent channels |
|
Full-Scale Range |
50-0-50 mils |
|
Compatible Proximity Systems |
7200 Series 14 mm or 3300 HTPS Proximitor systems |
|
Input Sensitivity |
100 mV/mil (4 V/mm) |
|
Accepted Signal Inputs |
One or two proximity-probe signals |
|
Input Impedance |
10 kΩ |
|
Alarm Relay Option |
Epoxy-sealed alarm relays |
|
Nominal Power Consumption |
1.5 W |
|
Signal-Conditioning Accuracy at 25°C |
±0.33% of full scale typical; ±1% maximum |
|
Alarm Types |
Bi-directional Alert and Danger alarms |
|
Alarm Setpoint Range |
0–100% of full scale |
|
Alarm Repeatability |
±0.39% of full scale |
|
Alarm Delay Options |
0.1, 1, 3, or 6 seconds |
|
Danger Relay Voting |
AND or OR, field-programmable |
|
Recorder Output Options |
4–20 mA, 1–5 VDC, or 0 to −10 VDC |
|
Transducer Supply Voltage |
−24 VDC or −18 VDC, field-programmable |
|
Operating Temperature |
0°C to +65°C |
|
Storage Temperature |
−40°C to +85°C |
|
Relative Humidity |
Up to 95%, non-condensing |
|
Rack Requirement |
One rack position |
|
Weight |
1 kg (2.2 lb) |
Benefits&Features
• Monitors two independent thrust position channels continuously
• Measures shaft axial position relative to the machine’s axial clearance
• Provides a 50-0-50 mil full-scale measurement range
• Supports 7200 Series 14 mm and 3300 HTPS Proximitor systems
• Offers adjustable Alert and Danger alarm setpoints
• Supports field-programmable AND or OR Danger relay voting
• Provides an independent recorder output for each channel
• Uses epoxy-sealed alarm relays for dependable monitoring applications
Application Areas
-Thrust bearing condition monitoring on turbines and compressors
- Shaft axial position measurement on rotating machinery
- Machinery protection systems requiring two independent thrust channels
-Industrial monitoring systems using 3300 Series racks
-Critical rotating equipment requiring adjustable Alert and Danger alarms
Main brands
No.
Brand
Main Product Lines
1
ABB
DSQC Series industrial robot parts; Bailey INFI 90; DCS
2
Honeywell
51 Series; MU Series; MC Series; TC Series; CC Series
3
General Electric (GE)
IC693 Series; IC697 Series; IC695 Series; DS200 Series
4
PLC
1756 Series; 1747 Series; 1746 Series
5
Schneider Electric
140 Series
6
Bently Nevada
3500 Series; 3300 Series; 330180 cables
7
Foxboro
FBM203; FBM204; FBM217; FBM231; FCP240; FCP270
8
Westinghouse
1C Series; 5X Series
9
Triconex
3008; 3511; 3625; 3664; 3721; 3700A
10
Siemens
6DD Series; 6DP Series; 6ES5 Series; 6DR Series; 6GK Series
Frequently Asked Questions
1. What does the 3300/20-05-03-01-00-00 monitor?
It continuously measures two independent channels of shaft axial position relative to the machine’s axial clearance. Changes in the measured position can provide an early indication of thrust bearing problems.
2. Which proximity systems are compatible with this configuration?
The “03” input option is intended for 7200 Series 14 mm or 3300 HTPS Proximitor systems operating at 100 mV/mil sensitivity.
3. Does the monitor support dual-channel alarm voting?
Yes. Danger relay voting can be field-programmed for AND or OR operation. Bently Nevada recommends a two-probe arrangement with AND voting for critical thrust position monitoring.
Contact Below to Get Best Price
GET THE BEST PRICE
Sales Contact
Email
Mobile / WhatsApp
Frida
Product Supply & Ordering Information
Please provide the complete part number, required quantity, and a clear nameplate photograph when requesting a quotation. Moore can confirm model identity, availability, lead time, packaging, shipping arrangements, and order details before supply.
Supply Advantages
✔ In Stock
✔ Worldwide shipping support
✔ Tested before shipment
✔1 Year Warranty
Company Profile
About Us: A professional supplier of industrial automation spare parts, mainly providing module spare parts for globally renowned brands of DCS systems, PLC systems, robot systems, and large servo control systems.
Main business: Distribution and supply of modules and components from brands including ABB, GE, PLC, Bentley, Honeywell, Siemens, Westinghouse Electric, Emerson, ICS, etc.
Inventory size: With over 9 million inventory parts, we focus on providing discontinued or difficult to purchase hardware.
Service scope: Our clients are located in over 165 countries worldwide, serving multiple industries such as metallurgy, power, chemical, oil and gas.
Product category: Rare, legacy or brand new PLC, HMI, DCS, hard drive, sensor, power supply.
