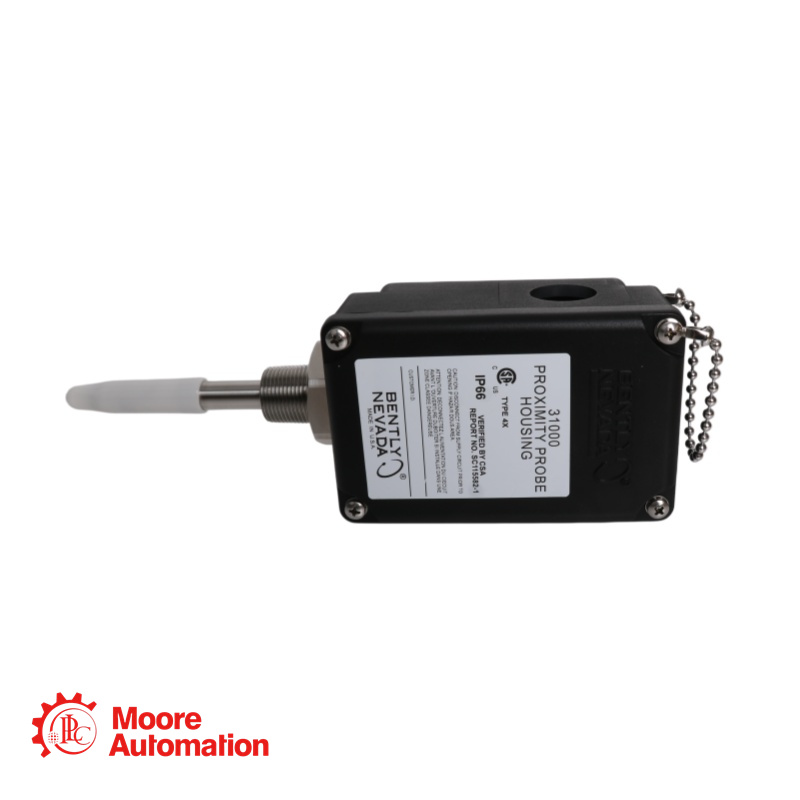

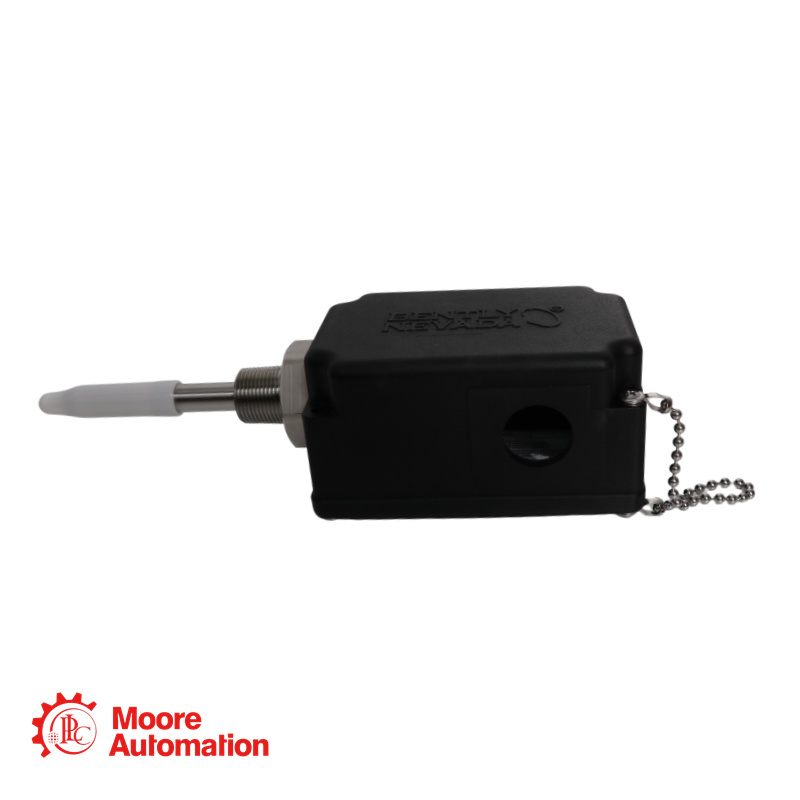

Bently Nevada 31000-16-05-00-080-03-02 Proximity Probe Housing Assembly

How to Get Price? Contact Below:

31000-16-05-00-080-03-02 Overview

The 31000-16-05-00-080-03-02 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements.
The 31000-16-05-00-080-03-02 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.

31000-16-05-00-080-03-02 Parameters

Housing Material: Aluminum body with stainless steel sleeve
Probe Type : 3300 XL 8mm reverse mount probe with connector protector
Probe Cable Length: 0.5 meter (20 inches)
Probe Features: Connector protector installed for environmental sealing
Temperature Range (Probe): -34°C to +177°C (-30°F to +351°F) operating

FAQ about 31000-16-05-00-080-03-02

1. What is the difference between the 31000 series and the older 21000 series?

The 31000/32000 series is a newer design that offers more flexible mounting options, better environmental resistance, and other improved features compared to the 21000 and 24701 series. Bently Nevada recommends this series for installations where an explosion-proof housing is not required.

2. What does it mean that the standoff adapter option is "00"?

Option "00" for the standoff adapter (C dimension) means that no standoff adapter is included. The housing will mount directly to the machine surface, and the probe penetration (D dimension) of 8.0 inches is measured from that mounting surface.

3. What is the purpose of the connector protector on the probe (option "16")?

The connector protector provides environmental sealing for the connection point between the probe and extension cable. It prevents moisture, oil, and other contaminants from entering the ClickLoc™ connector, which could otherwise degrade signal quality and cause measurement errors.

4. What is the total probe penetration length (8.0 inches)?

The total probe penetration length is 8.0 inches (203 mm). This is well within acceptable limits for a 0.5 meter probe cable and does not require additional sleeve support.

5. What type of probe is included with this 31000-16-05-00-080-03-02 assembly?

Option "16" specifies a 3300 XL 8mm reverse mount probe with a connector protector installed. The probe cable length is 0.5 meter, as specified by the "05" option.

6.What is the purpose of the fittings option "03"?

Option "03" provides a comprehensive set of conduit fittings including one plug, one reducer (3/4-14 NPT to 1/2-14 NPT), and a cable seal grip with grommets. This allows for flexible conduit connections and proper sealing of the cable entry point to maintain the environmental integrity of the housing.
