Nhãn hiệu :
Bently Nevadamột phần số :
21508-02-12-50-02Trọng lượng :
0.04kgKích thước :
1.8x1.8x107cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Reverse Mount Probe
PRODUCT AT A GLANCE

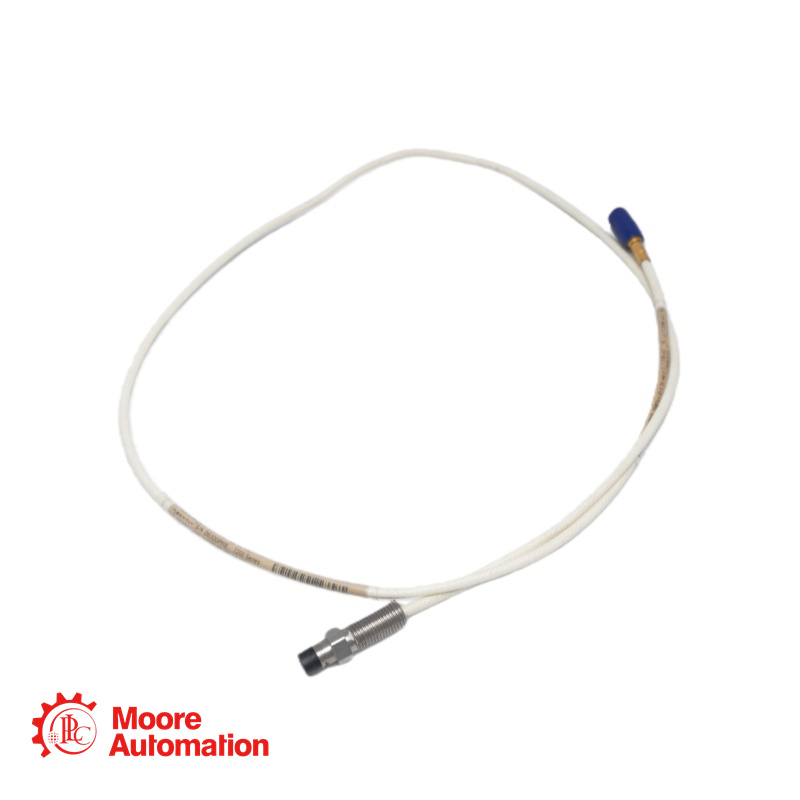

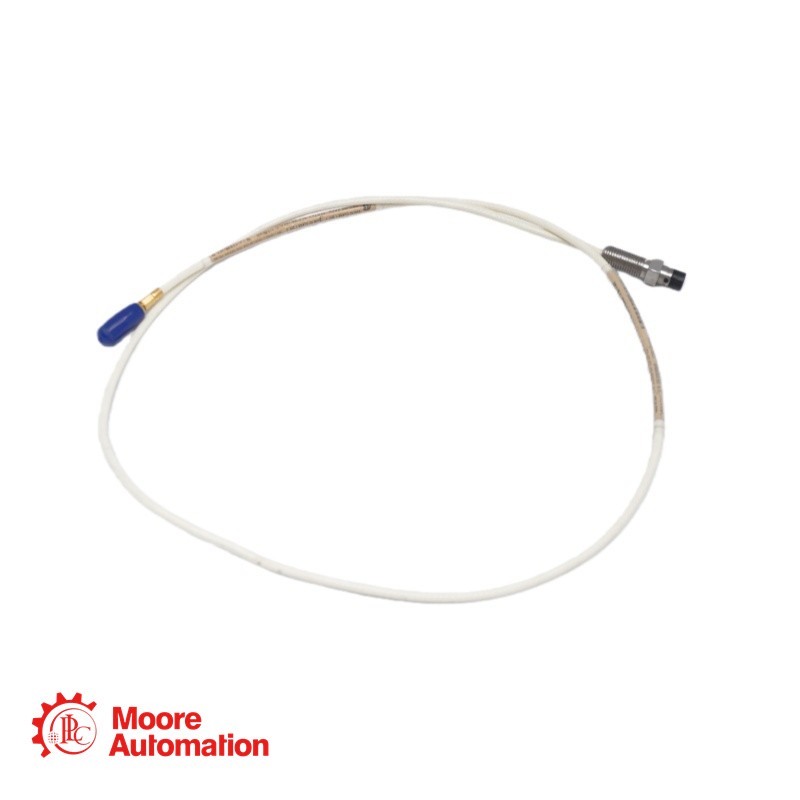

The Bently Nevada 21508-02-12-50-02 is a Reverse Mount Proximity Probe from the 3300 XL series. Unlike standard mount probes, the reverse mount design features external threads on the probe body, allowing it to be installed from the outside of a machine casing into a threaded mounting hole.
TECHNICAL SPECIFICATIONS
Sensor Type: Eddy-Current Displacement Proximity Probe (Reverse Mount)
Probe Tip Diameter: 8 mm (standard for the 21508 series).
Cable Length: 5.0 meters (indicated by the "-50-" code).
Probe Body Material: AISI 304 Stainless Steel
Operating: -52°C to +177°C (-62°F to +351°F)
Scale Factor (Sensitivity): 200 mV/mil (7.87 V/mm)
Frequency Response: 0 to 10 kHz.
HOW REQUEST A QUOTE FROM US?
Sales Manager: Frida
Phone/Whatsapp/Wechat:+86 15359408275
Email:sales5@mooreplc.com
FREQUENTLY ASKED QUESTIONS
Q:Is this 21508-02-12-50-02 have warranty?
A:Yes. We offer original new product with one year warranty.
Q:What is the thread specification for this 21508-02-12-50-02 probe?
A:This probe has an M10 x 1.0 metric external thread (indicated by the suffix -02-). The mounting hole in the casing must be tapped to match this thread.
Q:How long is the attached cable?
A:The integral cable length is 5.0 meters.
Quality & Condition Assurance
Our products are all brand-new with original factory seals.
We also offer a one-year warranty for you.
For the current stock, we can provide you with photos and videos.
For those items that need to be purchased, we can provide you with photos and videos before the shipment.
If any quality issues arise with the product within one year, you can contact our team.
Before You Buy
Our Payment Term is T/T.
Our Commercial Terms are EXW or DAP.
For shipping, we can use your account: DHL, UPS, TNT, CHIRLINE, FEDEX
Or we can calculate the shipping cost for you and have our freight forwarder handle the delivery.
Or you could provide us with your freight forwarder's contact information, and we will send it to the address of your freight forwarder.
