 /Bently Nevada 21000-34-05-00-036-03-02 Proximity Probe Housing Assembly

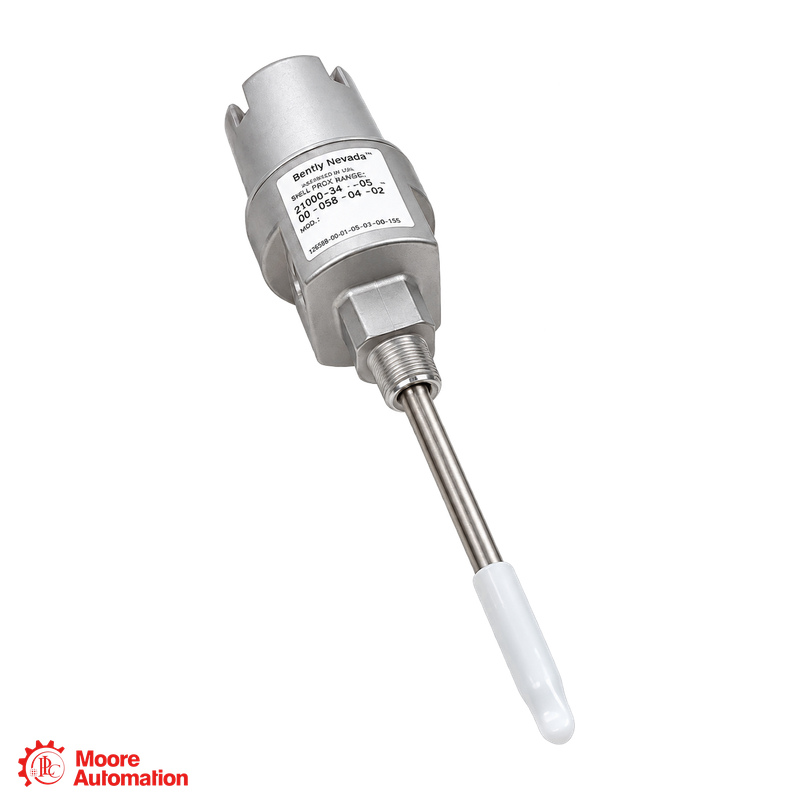

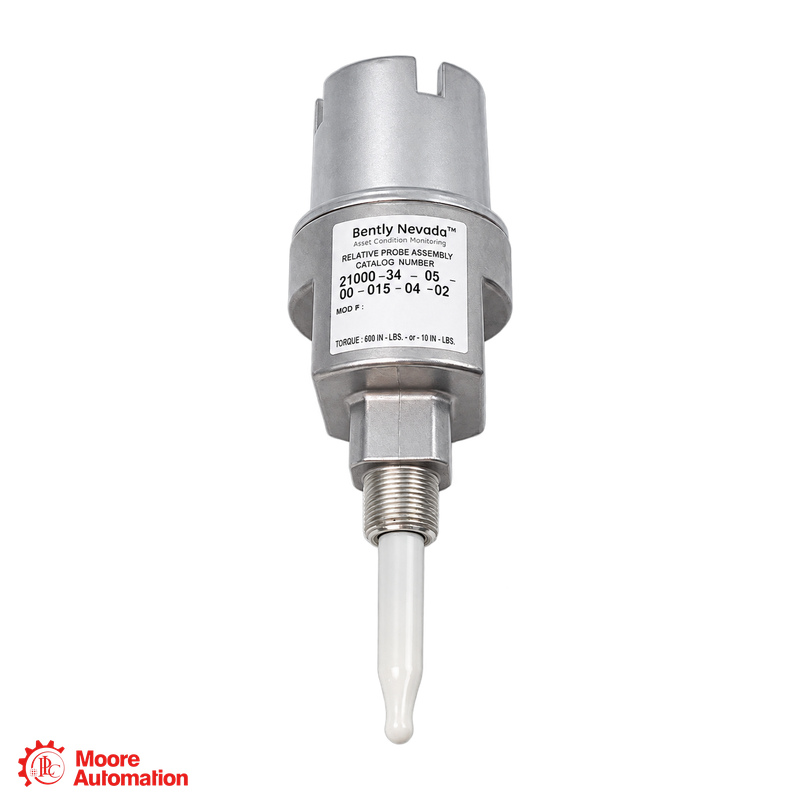

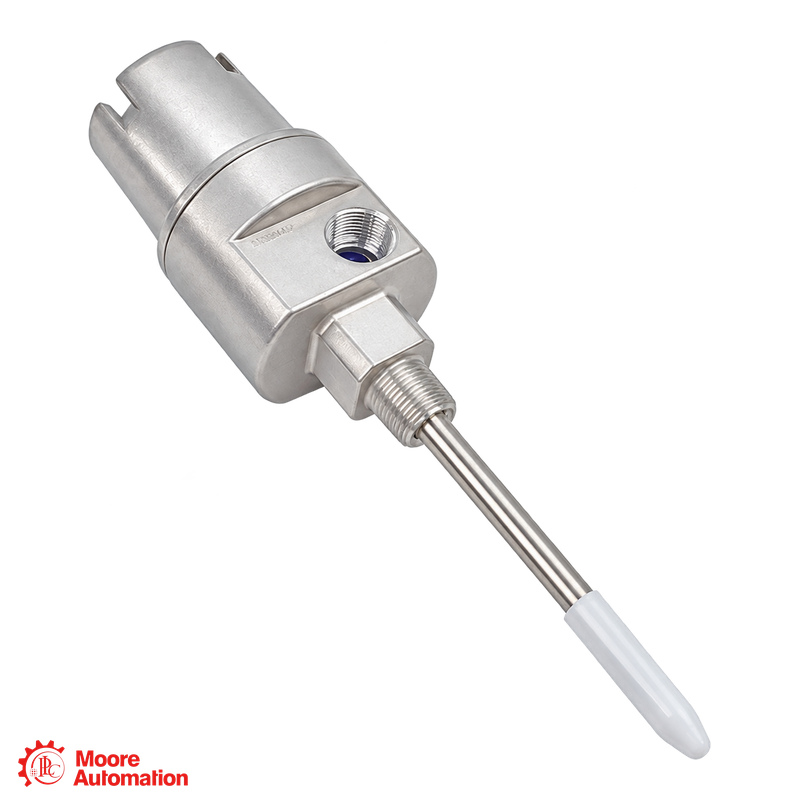

Bently Nevada 21000-34-05-00-036-03-02 Proximity Probe Housing Assembly
Bently Nevada 21000-34-05-00-036-03-02 Proximity Probe Housing Assembly
Bently Nevada 21000-34-05-00-036-03-02 Proximity Probe Housing Assembly

Bently Nevada 21000-34-05-00-036-03-02 Proximity Probe Housing Assembly

21000 SERIES · PROXIMITY PROBE HOUSING ASSEMBLY

21000-34-05-00-036-03-02

21000-34-05-00-036-03-02 — a Bently Nevada aluminum proximity probe housing assembly with a protected 3300 XL 8 mm probe, 0.5 m probe cable and 3.6 in probe penetration.

PROBE3300 XL 8 mm
CABLE0.5 m
DEPTH3.6 in
THRD.3/4-14 NPT
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● PROXIMITY PROBE HOUSING
21000 HOUSING ASSEMBLY

21000-34-05-00-036-03-02

3300 XL 8 mm · 0.5 m cable · 3.6 in penetration

Proximity Probe Housing Assembly

ALUMINUM EXTERNAL PROBE HOUSING
21000-34-05-00-036-03-02 — A Bently Nevada 21000 aluminum housing assembly equipped with a protected 3300 XL 8 mm probe, 0.5 m probe cable and 3.6 in probe penetration.
CONFIGURATION NOTE
21000 identifies the aluminum proximity probe housing assembly; 34 selects a 3300 XL 8 mm probe with connector protector and selectable hazardous-area approvals; 05 sets a 0.5 m probe cable; 00 specifies no standoff adapter; 036 sets 3.6 in probe penetration; 03 selects the listed plug, reducer and cable seal grip fittings; 02 specifies a 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

21000
Housing familyAluminum proximity probe housing assembly
34
Probe option3300 XL 8 mm with connector protector; selectable approval option
05
Probe cable length0.5 m (20 in)
00
Standoff adapterNone
036
Probe penetration3.6 in
03
Fittings3/4-14 NPT plug, reducer and cable seal grip
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
PROXIMITY PROBE HOUSING ASSEMBLY

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 mm
CABLE0.5 m
PENETRATION3.6 in
MOUNT THREAD3/4-14 NPT
Manufacturer-defined housing configuration.
Configuration note21000 identifies the aluminum proximity probe housing assembly; 34 selects a 3300 XL 8 mm probe with connector protector and selectable hazardous-area approvals; 05 sets a 0.5 m probe cable; 00 specifies no standoff adapter; 036 sets 3.6 in probe penetration; 03 selects the listed plug, reducer and cable seal grip fittings; 02 specifies a 3/4-14 NPT mounting thread.
General Information −
BrandBently Nevada
Part number21000-34-05-00-036-03-02
Product typeProximity Probe Housing Assembly
Product family21000
Housing bodyAluminum
Sleeve material304 stainless steel
Housing Configuration ＋
Probe option3300 XL 8 mm probe with connector protector
Probe cable length0.5 m (20 in)
Standoff adapterNot included
Probe penetration3.6 in
Fittings3/4-14 NPT plug, reducer and cable seal grip
Mounting thread3/4-14 NPT
Mechanical Design ＋
Body materialAluminum
Sleeve material304 stainless steel
Typical housing mass1.1 kg without fittings
EnclosureCSA Type 4
External mountingAPI 670 compliant housing
Installation Interface ＋
Mounting thread3/4-14 NPT
Fittings option03
Standoff adapter option00: none
Probe penetration option036: 3.6 in
FAQ

Questions Buyers Ask Most

What configuration does 21000-34-05-00-036-03-02 specify?＋

21000-34-05-00-036-03-02 combines the 21000 aluminum housing with option 34 for a protected 3300 XL 8 mm probe, option 05 for 0.5 m probe cable, and option 036 for 3.6 in probe penetration. Codes 00, 03 and 02 specify the standoff, fittings and mounting thread.

Which probe and cable are included with 21000-34-05-00-036-03-02 ?＋

21000-34-05-00-036-03-02 includes the option-34 3300 XL 8 mm probe with connector protector and a 0.5 m probe cable. The housing assembly requires a correctly matched extension cable and Proximitor Sensor to form a working proximity transducer system.

What housing materials and mass apply to 21000-34-05-00-036-03-02?＋

21000-34-05-00-036-03-02 uses an aluminum housing body and a 304 stainless-steel sleeve. The manufacturer lists 1.1 kg as typical mass for the 21000 housing without fittings; the assembled mass with option-03 fittings is not stated.

How does 21000-34-05-00-036-03-02 mount to the machine case?＋

21000-34-05-00-036-03-02 uses the option-02 3/4-14 NPT mounting thread. Its option-03 fitting set includes a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer and a cable seal grip with grommets.

What details should be checked when replacing 21000-34-05-00-036-03-02?＋

For the complete 21000-34-05-00-036-03-02 housing assembly, record the 3.6 in penetration, 0.5 m probe cable, option-03 fittings, 3/4-14 NPT mounting thread and installed transducer-system components before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 21000-34-05-00-036-03-02 label, probe penetration, housing thread, cable length, fitting requirements and quantity with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
21000-34-05-00-036-03-02

The Bently Nevada 21000 housing datasheet defines the 21000 base and option positions used in 21000-34-05-00-036-03-02.

Official manufacturer datasheet

Bently Nevada Datasheet 141600 defines the 21000 aluminum proximity probe housing and the probe, cable, standoff, penetration, fitting and mounting-thread options in 21000-34-05-00-036-03-02.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

PROXIMITY PROBE HOUSING SYSTEM CONTEXT

How 21000-34-05-00-036-03-02 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 21000-34-05-00-036-03-02 is a 21000 aluminum housing assembly for an externally mounted 3300 XL 8 mm proximity probe. Its 0.5 m probe cable, 3.6 in penetration and 3/4-14 NPT mounting thread are selected by its ordering code.

Bently Nevada · BRAND
Bently Nevada 21000 SeriesPRODUCT FAMILY · PROBE HOUSING ASSEMBLY
PROBE OPTION

3300 XL 8 mm

Code 34 specifies the probe with connector protector and selectable approval option.

PROBE PENETRATION

3.6 in

Code 036 specifies 3.6 in probe penetration.

MOUNTING THREAD

3/4-14 NPT

Code 02 specifies the 3/4-14 NPT housing mounting thread.

System relationship: the 21000 housing supports an externally mounted proximity probe; the probe, matching extension cable and Proximitor Sensor form the measurement chain for shaft vibration or position.
APPLICATION AREAS

Functions and application roles for 21000-34-05-00-036-03-02

External Probe HousingProtects and supports the probe at an external machine-case mounting point.
Shaft Vibration MonitoringThe installed 3300 XL 8 mm transducer chain can measure shaft vibration on fluid-film bearing machines.
APPLICATION CENTER 21000-34-05-00-036-03-02 21000 Proximity Probe Housing Assembly
Shaft Position MonitoringThe matching proximity transducer system can measure static probe-to-target distance.
Machine-Case PenetrationThe 3.6 in penetration option positions the probe through the machine case.
