 /Bently Nevada 21000-16-10-00-076-03-02 Proximity Probe Housing Assembly

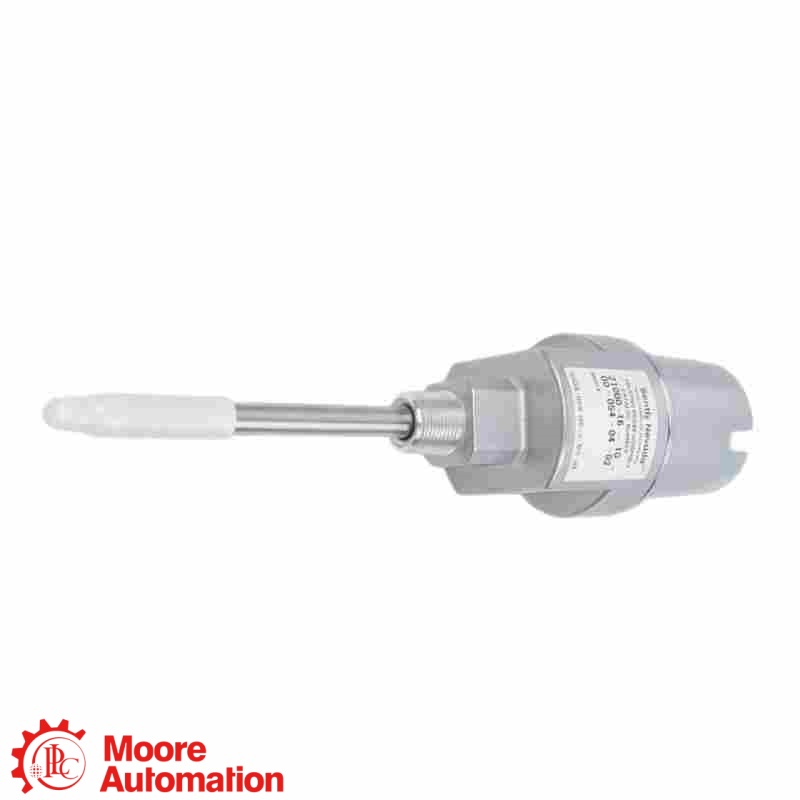

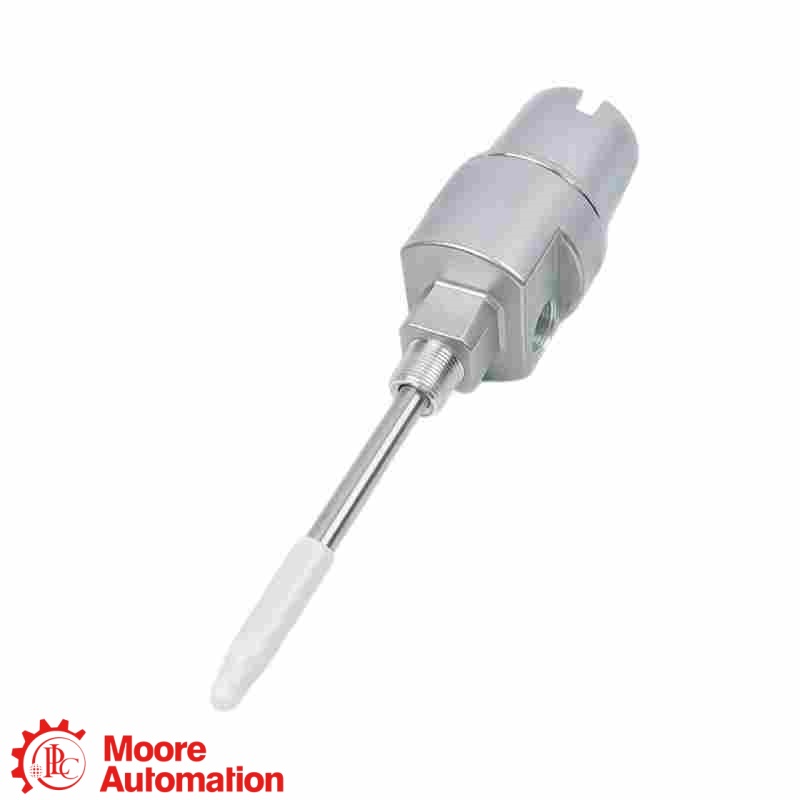

Bently Nevada 21000-16-10-00-076-03-02 Proximity Probe Housing Assembly
Bently Nevada 21000-16-10-00-076-03-02 Proximity Probe Housing Assembly
Bently Nevada 21000-16-10-00-076-03-02 Proximity Probe Housing Assembly

Bently Nevada 21000-16-10-00-076-03-02 Proximity Probe Housing Assembly

21000 · PROBE HOUSING

21000-16-10-00-076-03-02

21000-16-10-00-076-03-02 — A Bently Nevada 21000 proximity probe housing assembly with a 3300 XL 8 mm probe, 1.0 m cable, no standoff adapter, 7.6 in penetration, option 03 fittings and 3/4-14 NPT mounting.

PROBE3300 XL 8 MM
CABLE1.0 M
PENETRATION7.6 IN
MOUNTING3/4-14 NPT
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 21000 PROXIMITY PROBE HOUSING
21000 PROXIMITY PROBE HOUSING

21000-16-10-00-076-03-02

3300 XL 8 mm · 1.0 m cable · 7.6 in penetration · 3/4-14 NPT

Proximity Probe Housing Assembly

PROBE MOUNTING ROLE
21000-16-10-00-076-03-02 — This 21000 assembly houses and positions a 3300 XL 8 mm proximity probe for machinery vibration and position measurements.
CONFIGURATION NOTE
21000 identifies the aluminum proximity-probe housing; 16 specifies a 3300 XL 8 mm probe, 10 a 1.0 m cable, 00 no standoff adapter, 076 a 7.6 in penetration, 03 the fitting set, and 02 a 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

21000
Base modelAluminum proximity-probe housing
16
Probe option3300 XL 8 mm probe
10
Probe cable length1.0 m (39 in)
00
Standoff adapterNone
076
Probe penetration7.6 in (193 mm)
03
Fittings optionPlug · Reducer · Cable seal grip
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Official Datasheet ↗
21000 PROXIMITY PROBE HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 MM
CABLE1.0 M
PENETRATION7.6 IN
MOUNTING3/4-14 NPT
Configuration from the official 21000 and 24701 Proximity Probe Housing Assemblies datasheet.
Configuration check Confirm the full housing code, probe type, cable length, standoff, penetration, fittings and mounting thread against the machine installation before ordering.
General Information −
BrandBently Nevada
Part number21000-16-10-00-076-03-02
Product typeProximity Probe Housing Assembly
Product family21000 Proximity Probe Housing Assembly
Housing constructionAluminum body · 304 stainless steel sleeve
Installed probe3300 XL 8 mm proximity probe
Probe and Dimensions ＋
Probe cable length1.0 m (39 in)
Standoff adapterNone · option 00
Probe penetration7.6 in (193 mm) · option 076
Fittings and Mounting ＋
Fittings option03
Fitting set3/4-14 NPT plug · 3/4-to-1/2 NPT reducer · cable seal grip
Mounting thread3/4-14 NPT · option 02
Housing materialAluminum body with 304 stainless steel sleeve
Selected configurationUse the complete order code; approval is not encoded as a separate option here
Environment and Documentation ＋
For the installed 3300 XL 8 mm probe, the datasheet lists -51°C to +177°C (-60°F to +351°F) operating and storage range and cautions that exposure below -34°C may prematurely affect pressure seals.
Source: Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies Datasheet, Part Number 141600, Rev. AC. Dimensions, installation limits and environmental values require the complete configured housing and the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 21000-16-10-00-076-03-02 used for?＋

21000-16-10-00-076-03-02 is a configured 21000 housing assembly that positions and protects a 3300 XL 8 mm proximity probe.

What does the 21000-16-10-00-076-03-02 code specify?＋

For 21000-16-10-00-076-03-02, 21000 is the aluminum housing; 16-10-00-076-03-02 specifies the 8 mm probe, 1.0 m cable, no standoff, 7.6 in penetration, fittings and mounting thread.

Can 21000-16-10-00-076-03-02 be substituted with a similar part number?＋

Do not substitute 21000-16-10-00-076-03-02 by appearance or family name alone. Compare the complete housing code, probe type, cable length, standoff, penetration, fittings, thread and installed machine dimensions.

What mechanical configuration does 21000-16-10-00-076-03-02 provide?＋

21000-16-10-00-076-03-02 specifies a 3300 XL 8 mm probe, 1.0 m cable, no standoff adapter, 7.6 in penetration, option 03 fittings and 3/4-14 NPT mounting.

What should I provide for a 21000-16-10-00-076-03-02 quotation?＋

Send the complete 21000-16-10-00-076-03-02 nameplate, quantity, probe and Proximitor details, machine mounting dimensions, hazardous-area requirement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete housing label, probe system and machine mounting dimensions for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
21000-16-10-00-076-03-02

Official manufacturer documentation for the Bently Nevada 21000 proximity probe housing assembly, shown here for exact model verification.

Official manufacturer datasheet

Bently Nevada Datasheet 141600 defines the 21000-AA-BB-CC-DDD-EE-FF ordering structure and identifies every option used in this exact housing configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies Datasheet, Part Number 141600, Rev. AC.

21000 PROBE HOUSING RELATIONSHIP

How 21000-16-10-00-076-03-02 Fits into the Proximity Measurement Chain

Bently Nevada is the manufacturer. 21000-16-10-00-076-03-02 is a 21000 aluminum housing assembly configured with a 3300 XL 8 mm probe, 1.0 m cable, 7.6 in penetration and 3/4-14 NPT mounting.

Bently Nevada · BRAND
Bently Nevada 21000 Housing AssemblyPRODUCT FAMILY · SENSOR ACCESSORY
HOUSING AND SLEEVE

21000 Assembly

The 21000 assembly uses an aluminum body and 304 stainless steel sleeve to house and position the proximity probe.

PROBE AND DIMENSIONS

3300 XL 8 mm Probe

The configuration includes a 1.0 m probe cable, no standoff adapter and 7.6 in probe penetration.

FITTINGS AND MOUNTING

Option 03 · 3/4-14 NPT

The fitting set includes a plug, reducer and cable seal grip; mounting thread option 02 is 3/4-14 NPT.

System relationship: the complete order code, penetration length, fittings and mounting thread must match the machine installation and probe system.
APPLICATION AREAS

Installation and measurement roles for 21000-16-10-00-076-03-02

Probe ProtectionProtects and positions the installed proximity probe at the machine case.
Radial VibrationSupports proximity-probe installation for non-contact radial-vibration measurement.
APPLICATION CENTER 21000-16-10-00-076-03-02 Proximity Probe Housing Assembly
Axial PositionSupports proximity-probe installation for non-contact axial-position measurement.
Machine-Case MountingProvides a defined penetration, fitting arrangement and mounting thread for the machine installation.
