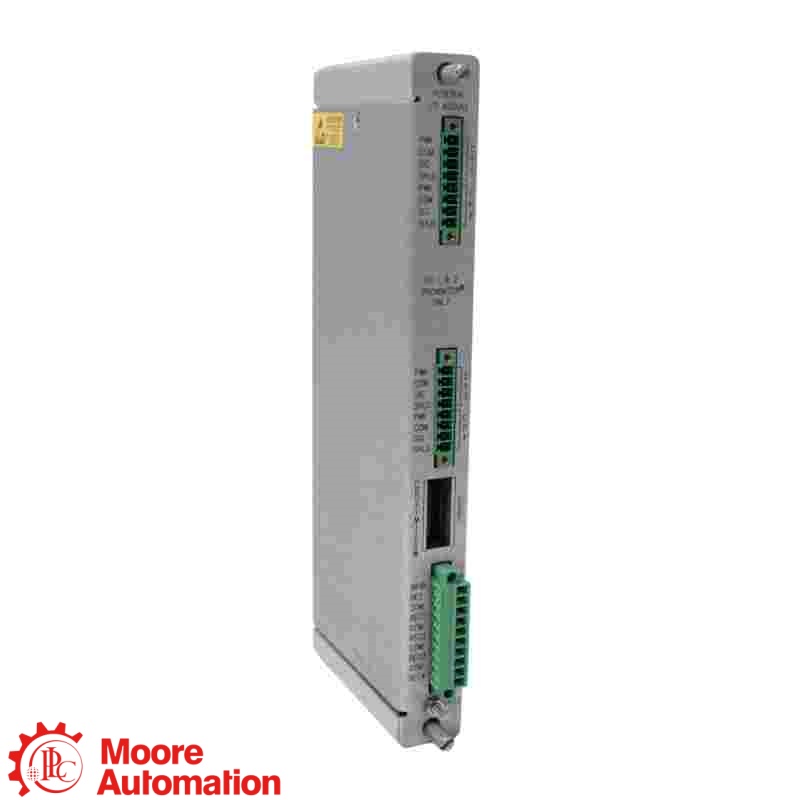

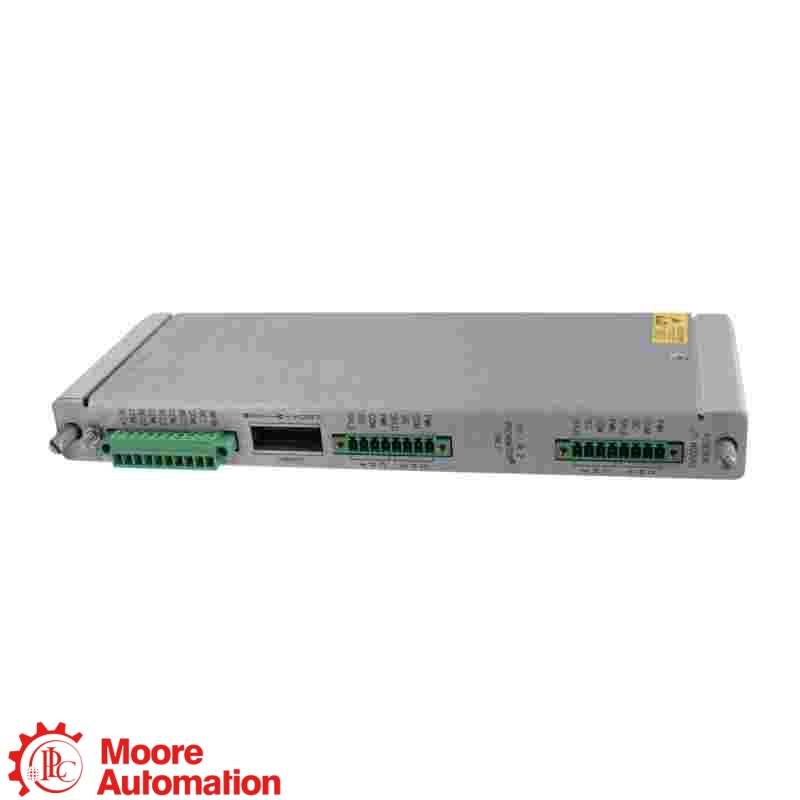

Bently Nevada 135137-01 3500/45 Position I/O Module with Internal Terminations
Bently Nevada 135137-01 3500/45 Position I/O Module with Internal Terminations
Bently Nevada 135137-01 3500/45 Position I/O Module with Internal Terminations

Bently Nevada 135137-01 3500/45 Position I/O Module with Internal Terminations

3500 SERIES · POSITION MONITORING

135137-01

135137-01 — A Bently Nevada 3500/45 Position I/O Module with internal terminations for use with Proximitor sensors, Rotary Position Transducers (RPTs), or DC LVDTs.

MODULEPosition I/O
TERMINATIONInternal
MONITOR3500/45
INPUTSProximitor · RPT · DC LVDT
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3500 MACHINERY PROTECTION
3500/45 POSITION I/O MODULE

135137-01

Internal terminations · Proximitor · RPT · DC LVDT

3500/45 Position I/O Module

MODULE IDENTIFICATION
135137-01 — A Position I/O Module with internal terminations for the 3500/45 Position Monitor, supporting Proximitor sensors, Rotary Position Transducers and DC LVDTs.
CONFIGURATION NOTE
Baker Hughes Datasheet 141537 lists 135137-01 as the Position I/O Module with internal terminations for use with Proximitors, RPTs or DC LVDTs in the 3500/45 Position Monitor system.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MODEL REFERENCE

Model number identification

135137-01
Base modelPosition I/O Module
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

VIEW OFFICIAL 3500/45 DATASHEET
3500/45 POSITION I/O MODULE

Engineering data at a glance

Click “+” to expand more specifications.

MODULEPosition I/O
TERMINATIONInternal
SIGNAL INPUTS1 to 4
INPUT FAMILYProx · RPT · DC LVDT
Identification and input compatibility from Baker Hughes Datasheet 141537.
Configuration check Confirm the exact 135137-01 part number, 3500/45 monitor, internal-termination requirement, installed transducer type, wiring and configured measurement before ordering.
General Information −
BrandBently Nevada
Part number135137-01
Product type3500/45 Position I/O Module
Product family3500/45 Position Monitor
Measurement principlePosition input interface with internal terminations
OutputAccepts Proximitor, RPT or DC LVDT signals for the 3500/45 monitor
Detailed Measurement Data ＋
Signal inputs1 to 4 inputs
DC LVDT input impedance1 MΩ
Proximitor / RPT input impedance10 kΩ
Cable and Installation ＋
Module rolePosition I/O Module for 3500/45
Termination styleInternal terminations
Supported transducersProximitor sensors, RPTs and DC LVDTs
External-termination counterpart135145-01 is the distinct external-termination module
Wiring checkVerify rack slot, transducer wiring and configured measurement
Environment and System Limits ＋
Use 135137-01 only with a correctly configured 3500/45 Position Monitor. Verify the installed transducer type, input scaling, wiring, monitor configuration and rack requirements for the measurement application.
Source: Baker Hughes 3500/45 Position Monitor Datasheet 141537. Baker Hughes Datasheet 141537 explicitly lists 135137-01 as a Position I/O Module with internal terminations for Proximitors, RPTs or DC LVDTs.
FAQ

Questions Buyers Ask Most

What is 135137-01 used for?＋

135137-01 is the internal-termination Position I/O Module used to connect compatible Proximitor sensors, Rotary Position Transducers or DC LVDTs to a 3500/45 Position Monitor.

What does the 135137-01 code specify?＋

Baker Hughes lists 135137-01 as the complete spare part number for a Position I/O Module with internal terminations. The official datasheet does not require splitting the number into separately decoded option fields.

Can 135137-01 be substituted with a similar part number?＋

Do not substitute 135137-01 with 135145-01 or another I/O module by appearance alone. 135137-01 uses internal terminations, while 135145-01 is listed as the external-termination counterpart; verify monitor, transducers and wiring.

Is 135137-01 a complete measurement system?＋

No. 135137-01 is the I/O module component, not a complete position-monitoring system. It requires a compatible 3500/45 Position Monitor, configured channels, transducers and rack wiring.

What should I provide for a 135137-01 quotation?＋

Send the complete 135137-01 nameplate, quantity, 3500/45 monitor information, installed transducer types, termination and wiring details, measurement application and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
135137-01

Official manufacturer documentation and system context for Bently Nevada 135137-01.

Official 3500/45 manufacturer datasheet

Baker Hughes Datasheet 141537 explicitly lists 135137-01 as the Position I/O Module with internal terminations for use with Proximitors, RPTs or DC LVDTs.

VIEW OFFICIAL 3500/45 DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Baker Hughes Datasheet 141537 lists the exact 135137-01 spare and distinguishes it from the 135145-01 external-termination module.

3500/45 POSITION SIGNAL CHAIN

How 135137-01 Fits into the 3500/45 Position Monitoring Chain

Bently Nevada is the manufacturer. 135137-01 is the internal-termination Position I/O Module between compatible position transducers and the 3500/45 Position Monitor.

Bently Nevada · BRAND
3500/45 Position Monitoring ChainTRANSDUCER · I/O · MONITOR
POSITION TRANSDUCERS

Proximitor · RPT · DC LVDT

Compatible transducers provide position-related signals. Confirm the sensor type, scaling, wiring and intended measurement.

I/O INTERFACE

135137-01 Position I/O Module

The internal-termination module connects compatible Proximitor, RPT or DC LVDT signals to the monitor channels.

MONITORING MODULE

3500/45 Position Monitor

The monitor processes up to four configured position inputs and provides the applicable rack monitoring functions.

System relationship: the transducers, 135137-01 I/O module, 3500/45 monitor, channel configuration and rack wiring must be verified as one compatible chain.
APPLICATION AREAS

3500/45 application context for 135137-01

Axial / Thrust PositionSupports compatible Proximitor-based position inputs when the 3500/45 channel is configured for axial or thrust position.
Differential ExpansionSupports compatible Proximitor configurations used by the 3500/45 for differential-expansion measurements.
APPLICATION CENTER 135137-01 135137-01 Position I/O Module
Case ExpansionSupports compatible DC LVDT inputs used in 3500/45 case-expansion configurations.
Valve / Rotary PositionSupports compatible RPT inputs used in 3500/45 valve or rotary-position configurations.
