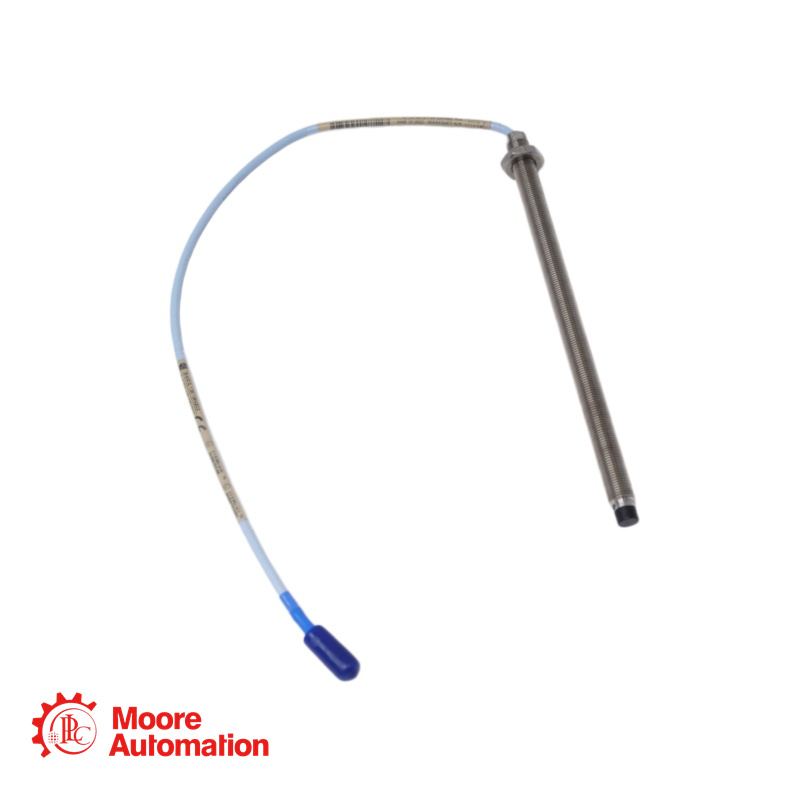

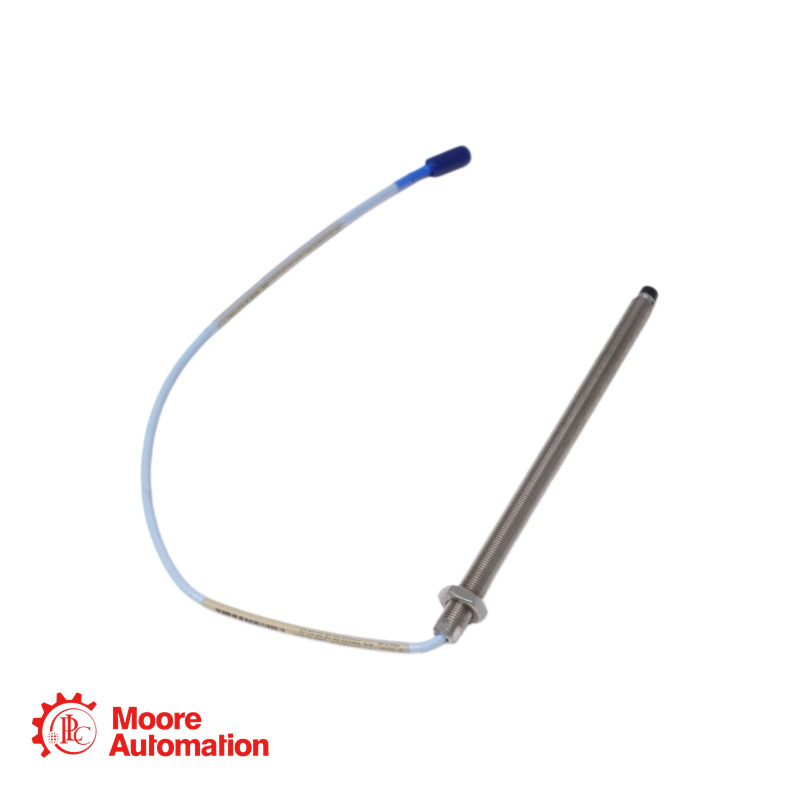

330103-00-18-10-02-00 Bently Nevada Proximity Probe

How can I get price?

330103-00-18-10-02-00

Sales Manager:Frida
◆Phone/Whatsapp:+86 15359408275
◆Email:sales5@mooreplc.com

Description - Proximity Probe

330103-00-18-10-02-00

3300 XL 8 mm Proximity Probe, M10 x 1 metric thread, without armor, 0 mm unthreaded length, 180 mm case length, 1.0 m total length, miniature coaxial ClickLoc connector with standard cable (no connector protector), no hazardous area approvals (00).

Parameter - Proximity Probe

330103-00-18-10-02-00

Thread Size: M10 x 1 (metric)
Armor: Without armor (standard flexible cable)
Unthreaded Length (A): 00 = 0.0 mm (flush mount)
Overall Case Length (B): 18 = 180 mm (7.09 inches)
Total Probe Cable Length (C): 10 = 1.0 meter (3.3 feet)
Connector Type (D): 02 = Miniature coaxial ClickLoc connector, standard cable (no connector protector)
Impedance: 75 Ω triaxial cable
Agency Approvals (E):00 – Not required (no hazardous area certification)
Minimum Target Size: 15.2 mm (0.6 in) diameter flat target
Recommended Minimum Shaft Diameter: 76.2 mm (3 in)
Minimum Cable Bend Radius: 25.4 mm (1.0 in)
Probe Case Torque (Recommended): 11.2 N·m (100 in·lbf)
Probe Case Torque (Maximum): 33.9 N·m (300 in·lbf)

FAQ - Proximity Probe

330103-00-18-10-02-00

Q: What is the difference between 330103 and 330101?
A:
330101 = 3/8-24 UNF thread (inch)
330103 = M10 x 1 thread (metric)
Both are 3300 XL 8 mm probes with identical performance. Choose based on your mounting thread requirement.

Q: Why does this probe have 00 agency approval? Is it hazardous area rated?
A:00 = No hazardous area approvals.
This probe is not certified for use in explosive atmospheres.
If you need hazardous area certification (CSA, ATEX, IECEx), select Option 05 instead (e.g., 330103-00-18-10-02-05).

Q: Can I use this probe with a 3300 XL Proximitor Sensor calibrated to non-4140 steel?
A:Yes, but accuracy and interchangeability specifications do not apply to non-AISI 4140 steel targets. Calibration to other materials is available upon request at time of order.

Model Comparison - Proximity Probe

Specification

330103-00-18-10-02-00

330103-03-09-10-02-00

330103-00-04-10-02-00

330104-00-18-10-02

Base Model

330103 (M10x1, unarmored)

330103 (M10x1, unarmored)

330103 (M10x1, unarmored)

330104 (M10x1, armored)

Unthreaded Length

00 (0 mm)

03 (30 mm)

00 (0 mm)

00 (0 mm)

Case Length

18 (180 mm)

09 (90 mm)

04 (40 mm)

18 (180 mm)

Total Length

10 (1.0 m)

10 (1.0 m)

10 (1.0 m)

10 (1.0 m)

Connector/Cable

02 (ClickLoc, Std)

02 (ClickLoc, Std)

02 (ClickLoc, Std)

02 (ClickLoc, Std)

Armor

No

No

No

Yes

Agency Approval

00 (Not required)

00 (Not required)

00 (Not required)

N/A
