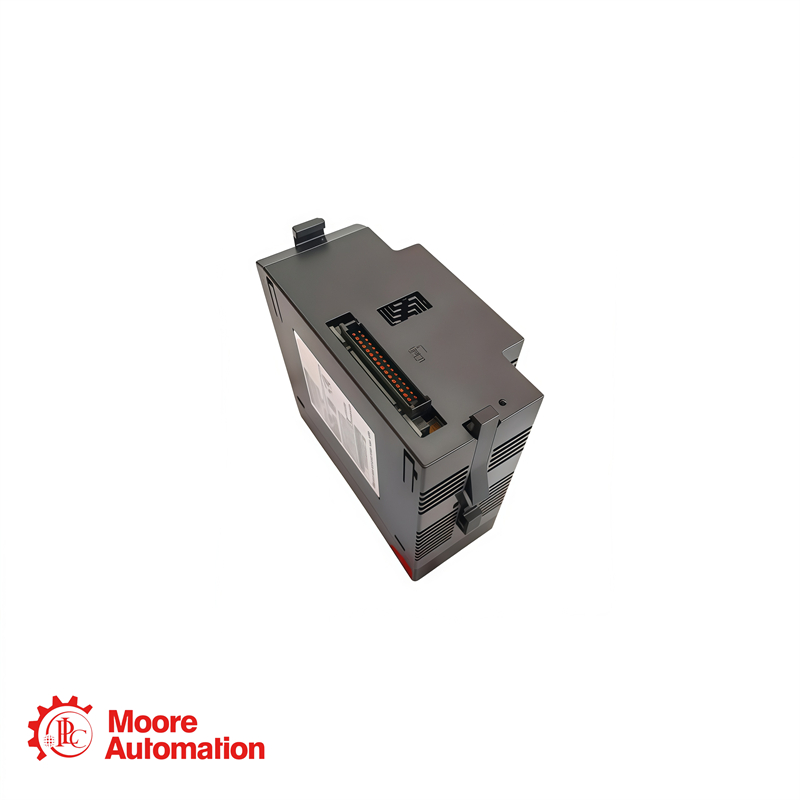

GE IC695ALG608-EA Analog Input Module

IC695ALG608-EA

GE Analog Input Module

-------------------------------------------------------------

-------------------------------------------------------------

Product Description

Input channels: 8 single-ended or 4 differential, non-isolated, no isolation between channels.
Input ranges: Voltage: ±10 V, 0-10 V, ±5 V, 0-5 V, 1-5 V
Current: 0-20 mA, 4-20 mA, ±20 mA
Resolution: 24-bit (ADC) → 32-bit IEEE floating point or integer
Sampling rate: 1 kHz per channel (configurable from 800 Hz to 1 kHz)
Accuracy: Voltage: ±0.05% FSR; Current: ±0.05% FSR
Common-mode rejection: >80 dB (50/60 Hz)
Input impedance: Voltage: >1 MΩ; Current: 250 Ω precision resistor
Backplane current: 3.3 V 450 mA / 5 V 600 mA
Diagnostics: Wire break, overrange, underrange, channel status LED
Terminal type: Compatible IC694TBB032 (box type), IC694TBS032 (spring-loaded), extended shield terminals
Mounting method: RX3i universal backplane, single slot, hot-swappable
Operating temperature: –40 to +70°C
Storage temperature: –40 to +85°C
Relative humidity: 5 to 95% RH, non-condensing
