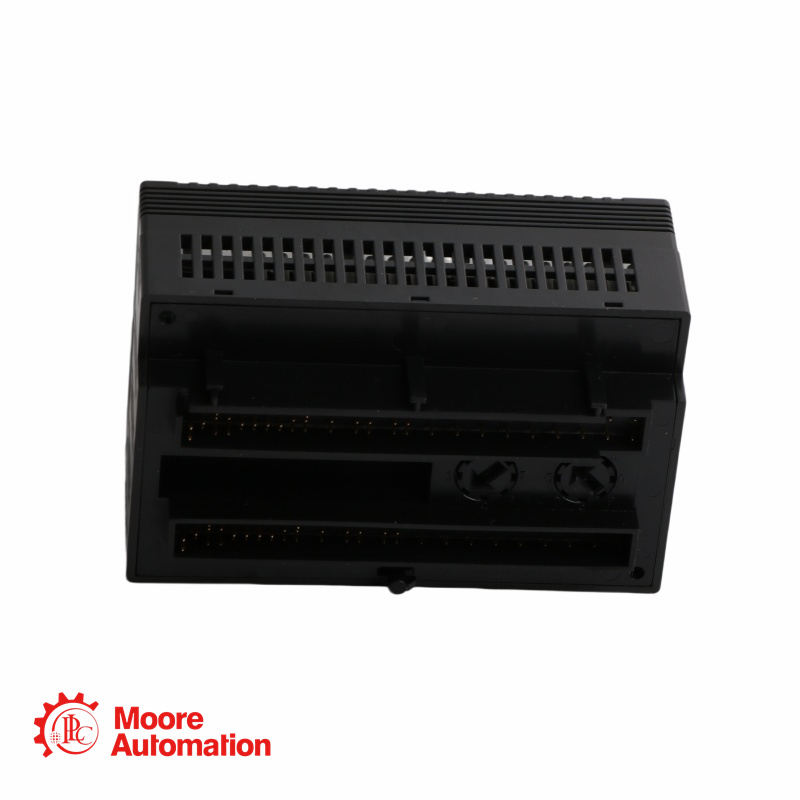

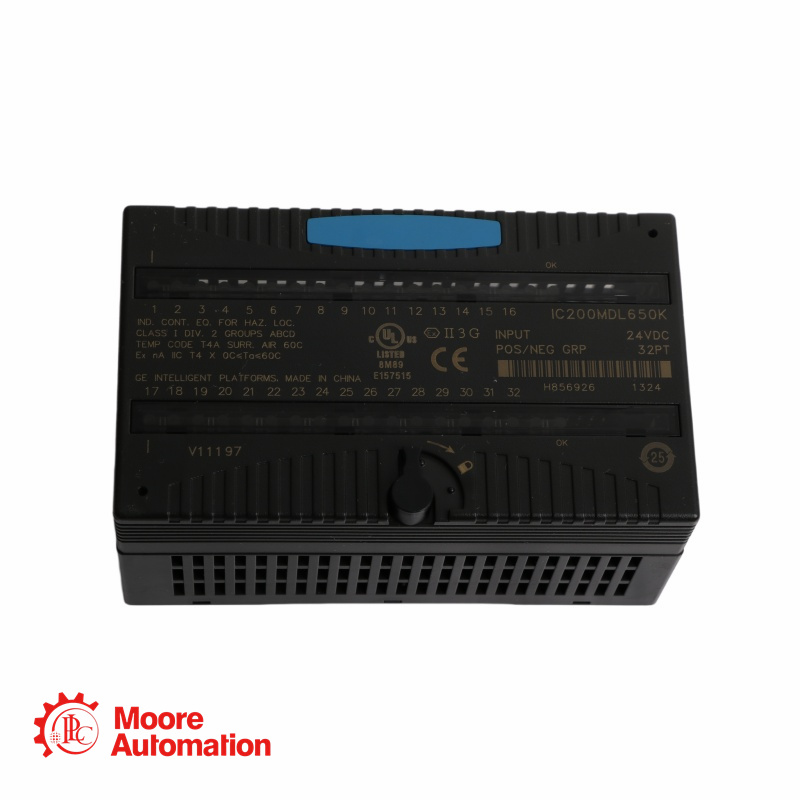

GE Fanuc VersaMax IC200MDL650K 32-Point 24VDC Discrete Input Module

Product Parameters

Item

Specification

Brand

GE

Product Series

VersaMax

Product Model

IC200MDL650K

Product Type

24VDC Discrete Input Module

Input Points

32 points, 4 groups of 8

Input Voltage

0 to +30VDC, +24VDC nominal

Logic Type

Positive / negative logic input

ON / OFF Voltage

ON: +15 to +30VDC; OFF: 0 to +5VDC

ON / OFF Current

ON: 2.0 to 5.5mA; OFF: 0 to 0.5mA

Backplane Current

50mA maximum at 5V output

Input Response / Filter

0.5ms max.; filter options: 0ms, 1.0ms, 7.0ms

Frequently asked questions

Q1: Why does the IC200MDL650K suffix matter when replacing a module?
A: The suffix may indicate a revision or supplier listing code, so buyers should confirm compatibility with the installed base model IC200MDL650.

Q2: Can IC200MDL650K support both sourcing and sinking input devices?
A: Yes, each input group can be wired for positive or negative logic, allowing flexible field device connection.

Q3: How does input filtering help in real applications?
A: Configurable filter times help reduce false signals caused by noise spikes or switch bounce.

Q4: What should be checked before installation?
A: Confirm input voltage, wiring logic, carrier type, revision level, and whether the system needs thermal derating at 30VDC.
