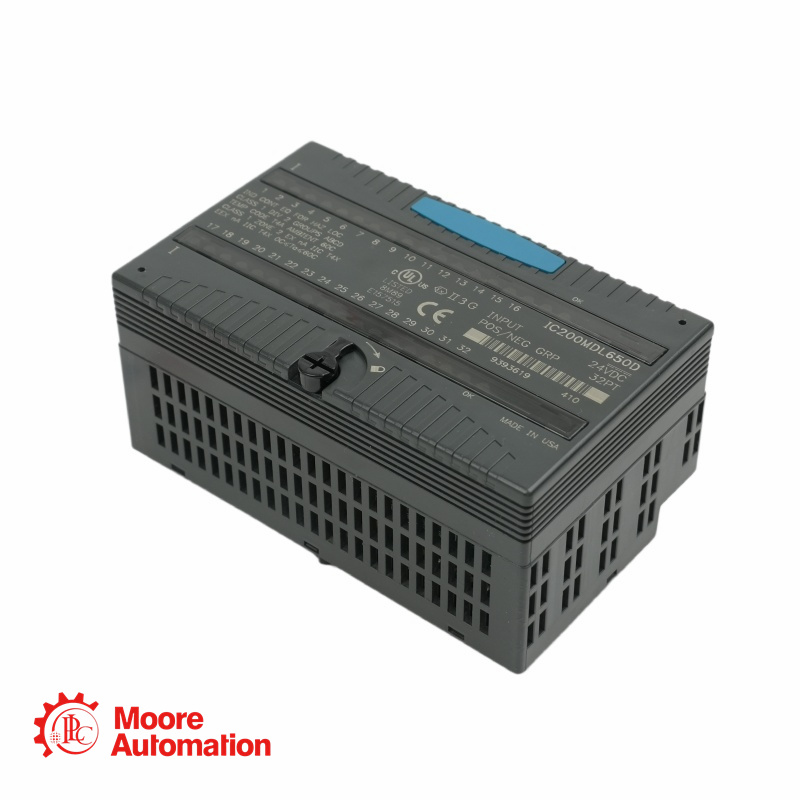

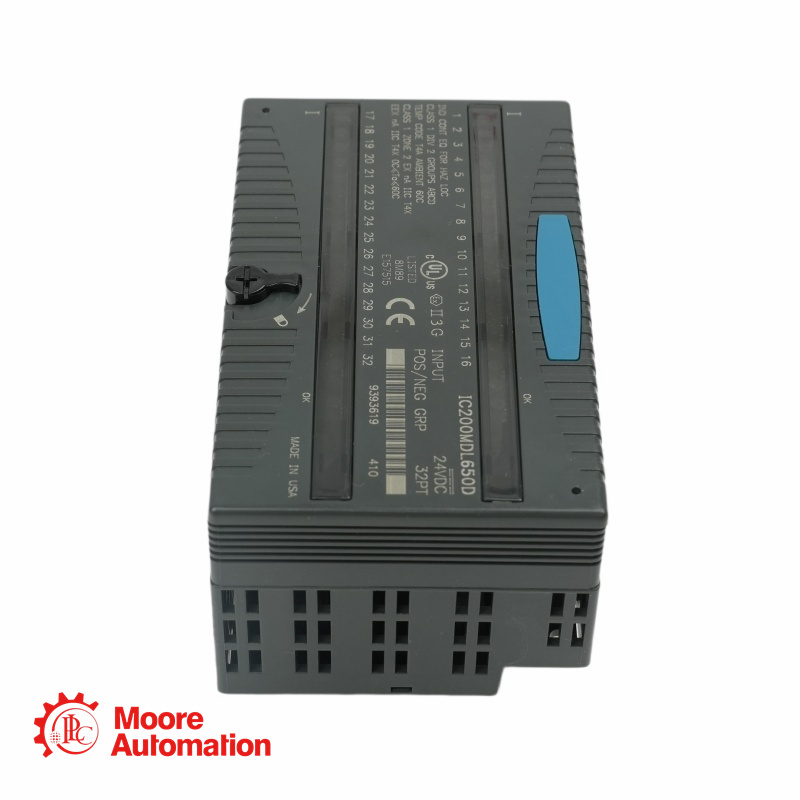

GE Fanuc VersaMax IC200MDL650E 32-Point 24VDC Discrete Input Module

Product Parameters

Item

Specification

Brand

GE

Product Series

VersaMax

Product Model

IC200MDL650E

Product Type

24VDC Discrete Input Module

Input Points

32 points, 4 groups of 8

Input Voltage

0 to +30VDC, +24VDC nominal

Logic Type

Positive / negative logic input

ON / OFF Voltage

ON: +15 to +30VDC; OFF: 0 to +5VDC

ON / OFF Current

ON: 2.0 to 5.5mA; OFF: 0 to 0.5mA

Backplane Current

50mA maximum at 5V output

Input Response / Filter

0.5ms max.; filter options: 0ms, 1.0ms, 7.0ms

Frequently asked questions

Q1: How is IC200MDL650E different from IC200MDL650K?
A: IC200MDL650E is a documented revision in the PDF, updated with V0 plastic housing. IC200MDL650K appears to be a later supplier/revision suffix.

Q2: Can IC200MDL650E be used for both positive and negative logic wiring?
A: Yes, each group of 8 inputs can be wired for positive or negative logic field devices.

Q3: Why are configurable filter times important for this module?
A: They help reduce false input signals caused by electrical noise, contact bounce, or unstable field switching.

Q4: What should be checked before replacing an IC200MDL650E?
A: Check the part suffix, carrier type, input wiring logic, voltage level, and PLC configuration compatibility.
