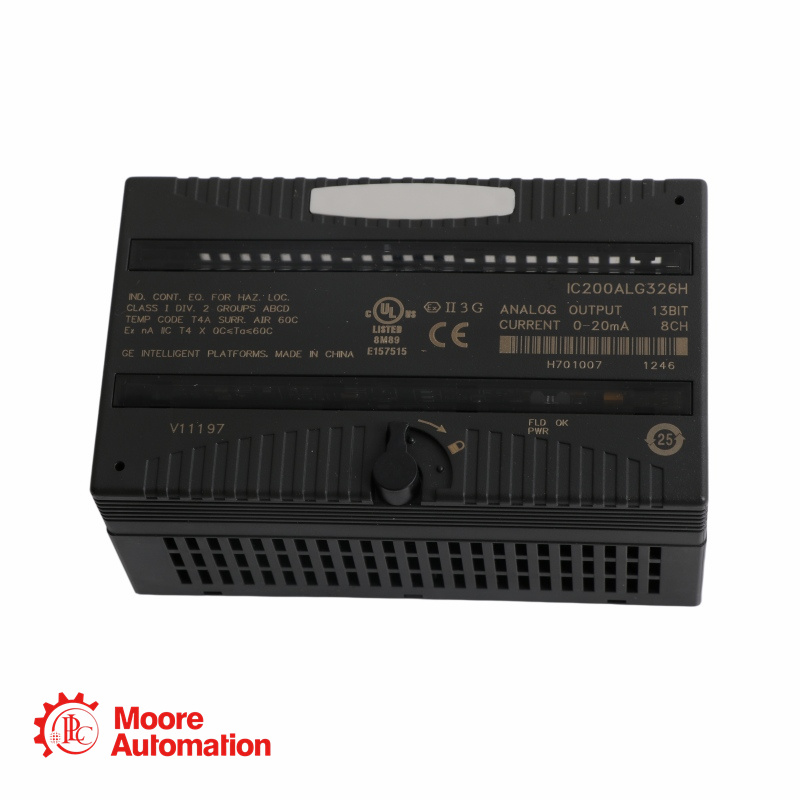

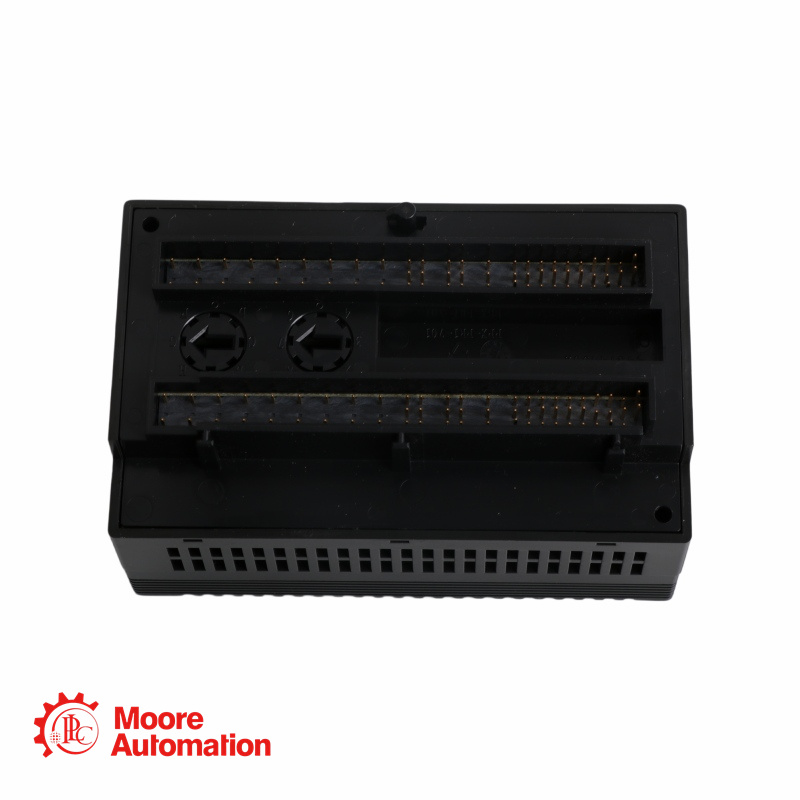

GE Fanuc IC200ALG326H is a VersaMax eight-channel 13-bit current analog output module for PLC current-loop control and process automation applications.
Nhãn hiệu :
GEmột phần số :
IC200ALG326HTrọng lượng :
0.20kgKích thước :
11cm x 6.68cm x 5cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
VersaMax 8-channel 13-bit current analog output module for 4–20mA and 0–20mA PLC signal control.
|
Grab an Extra Discount - Contact Us |
|||||||||||||||||||||||||||||||||
|
Name：Sylvie |
|||||||||||||||||||||||||||||||||
|
Whatsapp：+86 18030235312 |
|||||||||||||||||||||||||||||||||
|
Email：sales8@askplc.com
Product Parameters
Item
Specification
Brand
GE
Product Series
VersaMax
Product Model
IC200ALG326H
Base Model
IC200ALG326
Product Type
13-Bit Current Analog Output Module
Output Channels
8 single-ended current outputs, one group
Output Current Range
4–20mA default; 0–20mA jumper configurable
External Power Supply
+18 to +30VDC
Current Consumption
2A inrush max.; 100mA max. no load; 185mA max. all 8 outputs full scale
Backplane Current
50mA maximum at 5V output
Accuracy / Resolution
±0.3% typical FS at 25°C; 4–20mA: 5 counts = 2.5μA; 0–20mA: 4 counts = 2.5μA
Update / Isolation
Update rate: 15ms max.; Isolation: 250VAC continuous, 1500VAC for 1 minute
Description of IC200ALG326H
The GE Fanuc / Emerson IC200ALG326H is a VersaMax analog output module designed for PLC systems requiring current loop control. It provides eight single-ended current-sourcing outputs in one group and supports 4–20mA default or 0–20mA jumper-configurable ranges. The module requires an external 18–30VDC field supply and uses FLD PWR and OK LEDs for status indication. Configurable hold/default behavior helps maintain predictable output states during PLC stop, communication interruption, or backplane power events.
Frequently asked questions
Q1: How is IC200ALG326H different from IC200ALG328?
A: IC200ALG326H has 8 current output channels, while IC200ALG328 has 12 current output channels.
Q2: Why does this module require external field power?
A: The external 18–30VDC supply powers the analog output circuits that drive field current-loop loads.
Q3: How can the output range be changed?
A: The output range can be changed by jumper selection between 4–20mA and 0–20mA operation.
Q4: What should be checked before replacing this module?
A: Confirm the IC200ALG326H suffix, carrier wiring, external power, jumper settings, load resistance and PLC configuration.
|
|||||||||||||||||||||||||||||||||
|
Product Application Areas |
|
VersaMax PLC digital input systems |
|
Machine automation control panels |
|
Sensor and switch signal monitoring |
|
Conveyor and material handling systems |
|
Packaging equipment control |
|
Water treatment and utility automation |
|
Factory production line monitoring |
|
Legacy GE Fanuc VersaMax maintenance and replacement |
|
