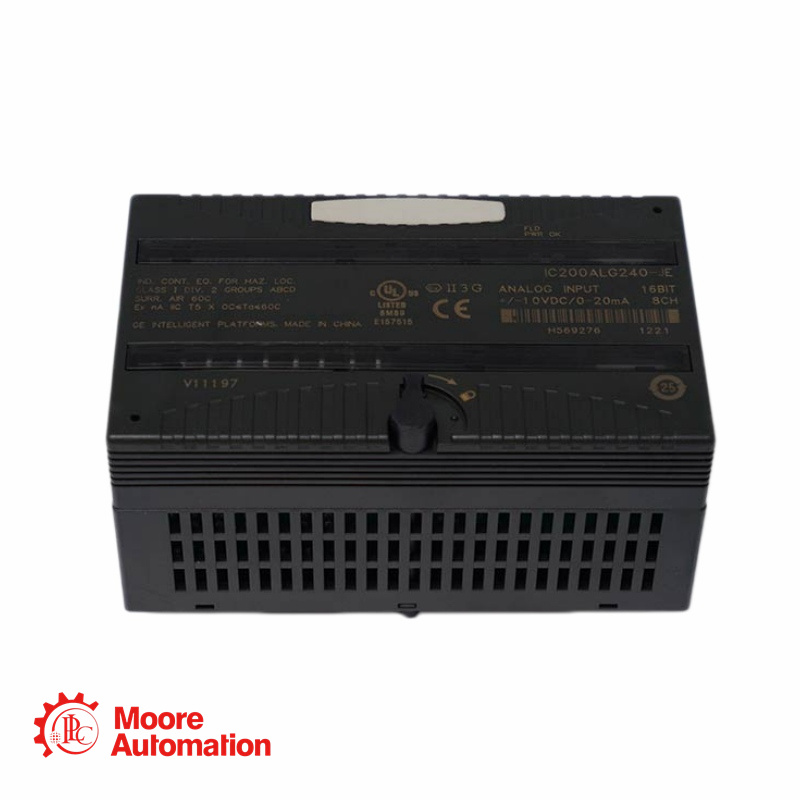

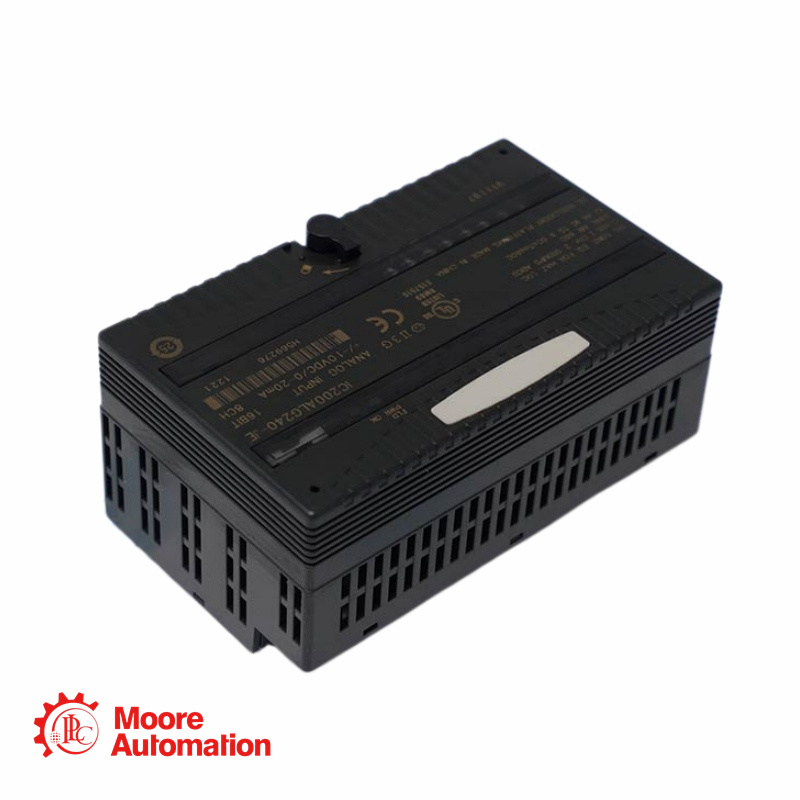

GE Fanuc VersaMax IC200ALG240-JE 16-Bit Isolated Analog Input Module

Product Parameters

Item

Specification

Brand

GE Fanuc / Emerson

Product Series

VersaMax

Product Model

IC200ALG240-JE

Product Type

16-Bit Voltage/Current Isolated Analog Input Module

Input Channels

8 isolated analog input channels

Input Range

Current: +1 to 20mA; Voltage: ±10VDC

Resolution

Current: 381nA nominal; Voltage: 381μV nominal

Accuracy

±0.1% maximum of full scale at 25°C

Isolation

250VAC continuous; 1500VAC for 1 minute, channel-to-channel and input-to-logic/frame ground

Power Requirement

External supply: +19.5 to +30VDC; Backplane: 15mA max. at 5V, 120mA max. at 3.3V

Update / Filter

20ms max. at 50Hz filter; 16.7ms max. at 60Hz filter; programmable 50/60Hz filter

Frequently asked questions

Q1: How is IC200ALG240-JE different from the base IC200ALG240?

A: IC200ALG240-JE is a revision/suffix version. Supplier information indicates the main difference is labeling, while compatibility and performance remain the same.

Q2: Why is channel-to-channel isolation important for this module?

A: Isolation helps reduce interference between analog signals and improves reliability when different field devices use separate signal references.

Q3: Can IC200ALG240-JE be used for both current and voltage inputs?

A: Yes, channels can be configured for current input or voltage input, supporting current signals and ±10VDC voltage signals.

Q4: What should be checked before replacing this module?

A: Confirm the IC200ALG240-JE suffix, carrier type, external 24VDC supply, wiring polarity, channel configuration and PLC software settings.
