 /Vibro-Meter RLC16 200-570-000-012 VM600 Relay Card

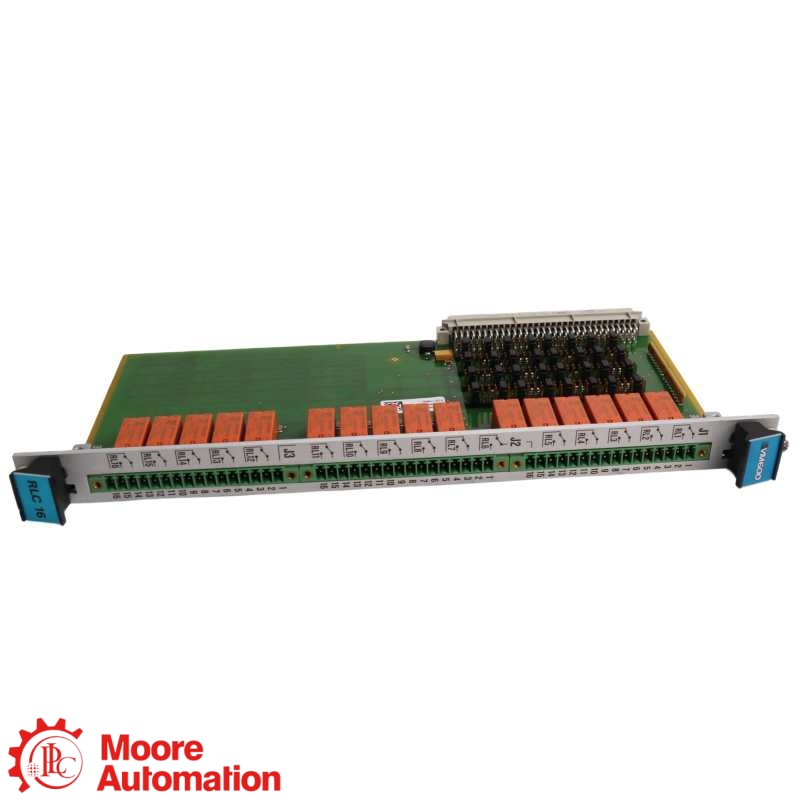

Vibro-Meter RLC16 200-570-000-012 VM600 Relay Card
Vibro-Meter RLC16 200-570-000-012 VM600 Relay Card
Vibro-Meter RLC16 200-570-000-012 VM600 Relay Card

Vibro-Meter RLC16 200-570-000-012 VM600 Relay Card

Vibro-Meter RLC16 200-570-000-012

RLC16 200-570-000-012

The RLC16 200-570-000-012 is a Meggitt Vibro-Meter VM600 relay card with 16 change-over relays. Confirm the exact PNR, hardware version, rack type, relay-state jumpers, terminal wiring and load ratings before replacement.

HEIGHT262 mm (6U)
WIDTH20 mm
DEPTH125 mm
WEIGHT0.30 kg approx.
MANUFACTURERMeggitt vibro-meter
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
VIBRO-METER ● RLC16 RELAY CARD
Vibro-Meter RLC16

RLC16 200-570-000-012

200-570-000-012 · STANDARD VERSION

Exact RLC16 PNR, hardware version and rack configuration must be verified

MODULE ROLE
RLC16 200-570-000-012 is a Meggitt Vibro-Meter VM600 relay card with 16 change-over relays for additional machinery-protection alarm outputs.
CONFIGURATION NOTE
For RLC16 200-570-000-012, confirm the complete PNR, hardware version, ABE04x or ABE056 rear rack slot, relay-state jumpers, terminal wiring and load ratings before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Meggitt Vibro-Meter ↗
RLC16 RELAY CARD

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT262 mm (6U)
WIDTH20 mm
DEPTH125 mm
WEIGHT0.30 kg approx.
Official Meggitt Vibro-Meter family reference data.
Official product verificationVerify the complete ordering reference RLC16 200-570-000-012, including the PNR, hardware version, rack type, relay-state jumpers, contact ratings, terminal wiring and installed system documentation before replacement.
GENERAL INFORMATION−
Brand / product lineMeggitt Vibro-Meter
Ordering numberRLC16 200-570-000-012
Product typeVM600 relay card with 16 change-over relays
System familyRLC16 / VM600
Module roleOptional relay expansion card for VM600 machinery protection systems
Relay characteristicsExact RLC16 PNR, hardware version and rack configuration must be verified
Operating temperature−25 to +65 °C
Storage temperature−40 to +85 °C
Operating humidity0 to 90% non-condensing
Power supply+5 VDC from VM600 rack; 40 mA per relay
Physical and Environmental Data＋
Height / width / depth262 × 20 × 125 mm
Operating temperature−25 to +65 °C operating; −40 to +85 °C storage
Weight / humidity0.30 kg approx.; 0 to 95% non-condensing in storage
Relay and Rack Integration＋
Module roleOptional relay expansion card for VM600 machinery protection systems
Compatible racksVM600 ABE04x or ABE056
Relay arrangement16 relays; each provides COM, NC and NO contacts
External connectionsJ1, J2 and J3 screw-terminal connectors at the rear of the rack
Relay state selectionNormally energized or normally de-energized, jumper selectable
Ordering and Lifecycle＋
Official Meggitt DS 268-081 lists RLC16 standard PNR 200-570-000-1Hh; Hh identifies the hardware version. Verify the exact installed revision before replacement.
FAQ

Questions Buyers Ask Most

What is RLC16 200-570-000-012?＋

RLC16 200-570-000-012 is a VM600 relay card providing 16 change-over relay outputs for machinery protection applications.

How many relays are provided by RLC16 200-570-000-012?＋

RLC16 200-570-000-012 provides 16 relays, each with COM, NC and NO contacts.

What must the complete ordering code confirm for RLC16 200-570-000-012?＋

RLC16 200-570-000-012 requires the full PNR, including the Hh hardware-version suffix, to be matched to the installed card.

Which rack compatibility applies to RLC16 200-570-000-012?＋

RLC16 200-570-000-012 is installed in the rear of a VM600 ABE04x or ABE056 rack and connects to the backplane.

Which connections must be checked for RLC16 200-570-000-012?＋

RLC16 200-570-000-012 requires confirmation of J1, J2 and J3 terminal wiring, relay loads and jumper-selected relay state.

Can RLC16 200-570-000-012 be replaced by a similar-looking card?＋

RLC16 200-570-000-012 should not be substituted until the complete PNR, rack type, contact ratings, terminal wiring and relay-state configuration are verified.

What information should be supplied when ordering RLC16 200-570-000-012?＋

RLC16 200-570-000-012 should be ordered with the full PNR, nameplate photos, rack type, hardware version, relay wiring and load requirements.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete ordering code, installed rack, module versions, communications wiring and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Data Sheet for
RLC16 200-570-000-012

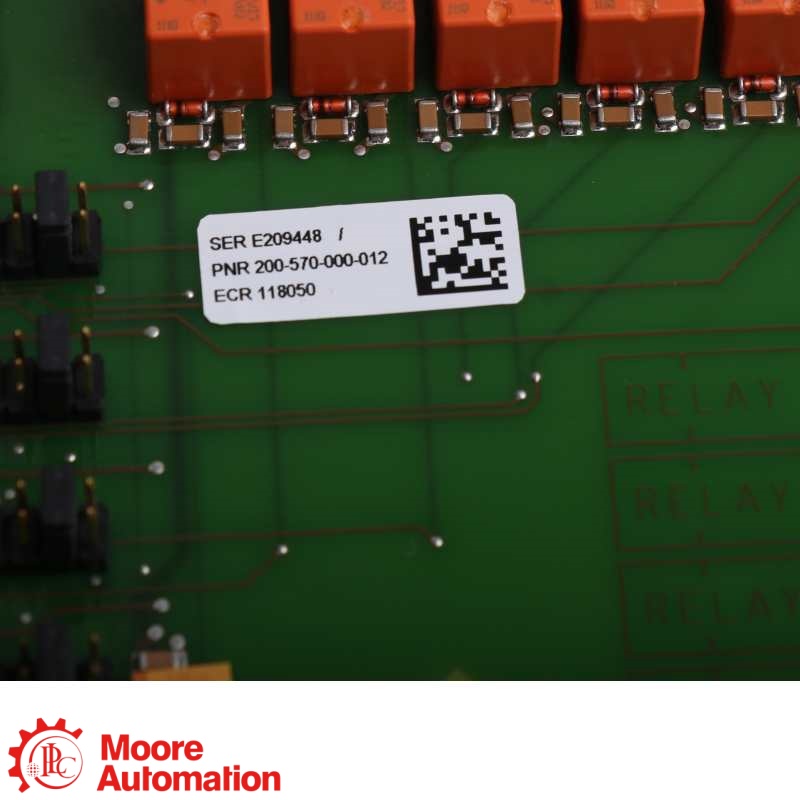

Meggitt DS 268-081 identifies RLC16 200-570-000-012 as a standard-version VM600 relay card PNR with hardware-version suffix 12.

Meggitt Vibro-Meter RLC16

Official Meggitt DS 268-081 covers the VM600 RLC16 relay card, its relay ratings, rack installation, environmental limits and ordering structure.

DOWNLOAD OFFICIAL DOCUMENTATION

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Product identity and specifications are based on official Meggitt DS 268-081; verify the exact PNR and hardware version before replacement.

RLC16 MODEL IDENTIFICATION

How RLC16 200-570-000-012 Is Structured

Meggitt Vibro-Meter is the product line; RLC16 identifies the VM600 16-relay card; and RLC16 200-570-000-012 is the complete supplied reference for installed-system matching.

Meggitt Vibro-Meter · PRODUCT LINE
RLC16 relay cardVM600 machinery protection system · MODULE FAMILY
ORDERING NUMBER

RLC16 · 200-570-000-012

RLC16 denotes the 16-relay card; 200-570-000 identifies the standard-version product family; 12 is the Hh hardware-version suffix.

CARD FUNCTION

16 change-over relays · screw terminals

The RLC16 installs in the rear of a VM600 ABE04x or ABE056 rack and provides COM, NC and NO contacts for each relay.

OFFICIAL RATINGS

250 VAC · 5 AAC · 1250 VA maximum breaking capacity

Relay state is normally energized or normally de-energized by jumper selection. Confirm the rack, wiring, loads and installed hardware version.

Compatibility check: verify the complete 200-570-000-012 PNR, hardware version, ABE04x or ABE056 rack, relay-state jumpers, terminal wiring and load ratings before replacement.
APPLICATION AREAS

Application mind map for RLC16 200-570-000-012

Machinery Protection Relays16 change-over relay outputs for alarms and shutdown logic
VM600 Rack InstallationInstall in the rear of ABE04x or ABE056 and confirm backplane compatibility
APPLICATION CENTERRLC16 200-570-000-012VM600 16-relay expansion card
Screw-Terminal ConnectionsJ1, J2 and J3 expose relay COM, NC and NO contacts
Replacement VerificationConfirm the 200-570-000-012 PNR, hardware version, rack type, jumpers, terminal wiring and load ratings
