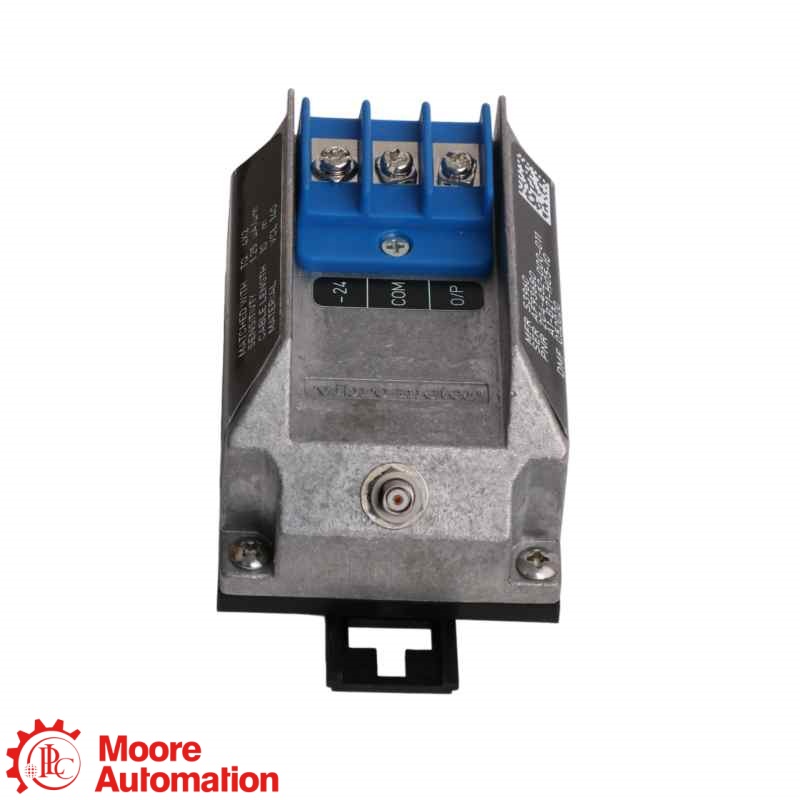

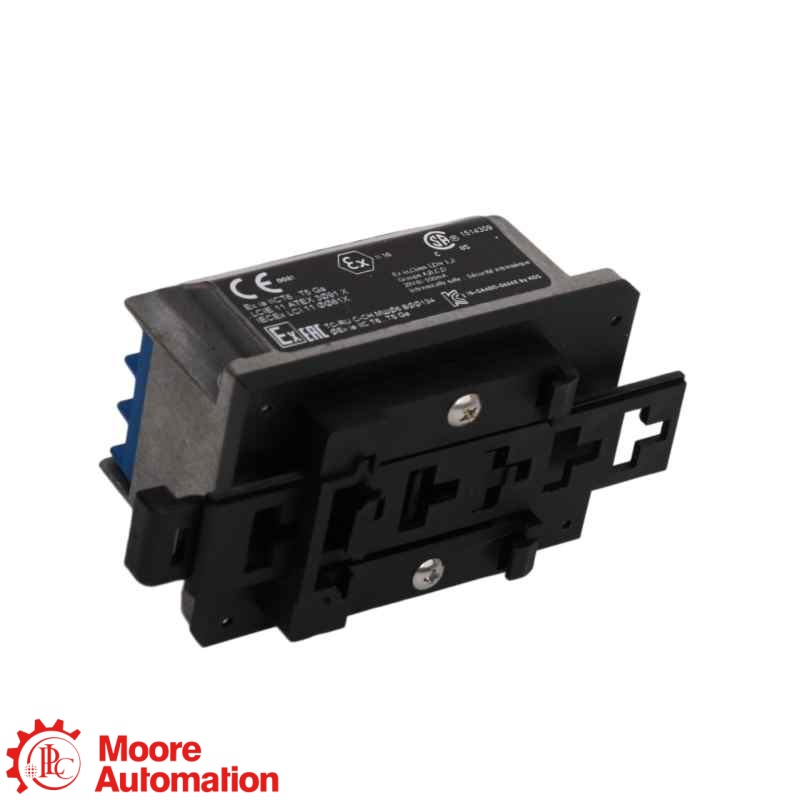

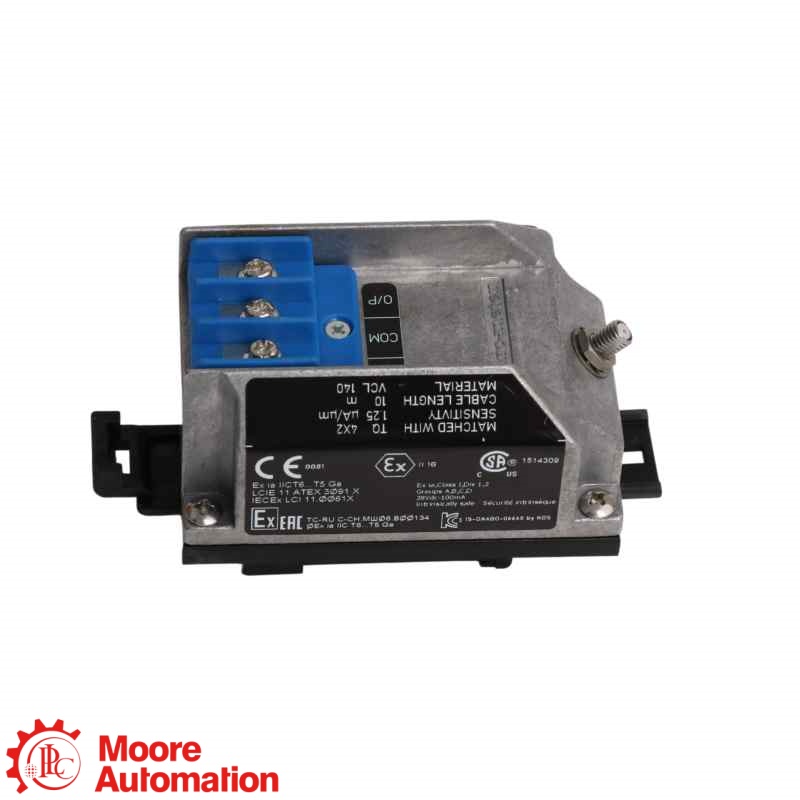

Vibro-Meter IQS453 204-453-000-021 Signal Conditioner
Vibro-Meter IQS453 204-453-000-021 Signal Conditioner
Vibro-Meter IQS453 204-453-000-021 Signal Conditioner

Vibro-Meter IQS453 204-453-000-021 Signal Conditioner

Vibro-Meter IQS453 204-453-000-021

IQS453 204-453-000-021

The IQS453 204-453-000-021 is a Meggitt Vibro-Meter signal conditioner used in the TQ403 / EA403 / IQS453 proximity measurement system for non-contact relative displacement and vibration monitoring.

MODULE TYPEIQS453 signal conditioner
SYSTEM FAMILYTQ403 / EA403 / IQS453
COMPATIBILITYTQ4x3 / EA403 proximity measurement chain
ORDERING NUMBER204-453-000-021
MANUFACTURERMeggitt vibro-meter
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
VIBRO-METER ● IQS453 SIGNAL CONDITIONER
Vibro-Meter IQS453

IQS453 204-453-000-021

204-453-000-021 · COMPLETE ORDERING REFERENCE

10 m TQ4x3 proximity measurement-chain signal conditioning

MODULE ROLE
IQS453 204-453-000-021 is a Meggitt Vibro-Meter signal conditioner that powers and processes the matching TQ4x3 eddy-current proximity transducer in a calibrated measurement chain.
CONFIGURATION NOTE
For IQS453 204-453-000-021, confirm the complete nameplate reference, matching TQ4x3 transducer, EA403 extension cable, 10 m calibrated chain length, voltage-output mode and installed system configuration before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Meggitt Vibro-Meter ↗
IQS453 SIGNAL CONDITIONER

Engineering data at a glance

Click “+” to expand more specifications.

MODULE TYPEIQS453 signal conditioner
MEASUREMENT RANGE12 mm
SYSTEMTQ403 / EA403 / IQS453
OUTPUT MODE3-wire voltage
Manufacturer-authored Vibro-Meter TQ403 / EA403 / IQS453 product-sheet reference 265-063.
Signal Conditioner ConfigurationIQS453 204-453-000-021 is the standard 10 m-chain, 3-wire voltage-output version for a 12 mm TQ4x3 proximity measurement system, with published sensitivity of 1.33 mV/µm.
GENERAL INFORMATION−
Brand / product lineMeggitt Vibro-Meter
Ordering numberIQS453 204-453-000-021
Product typeVibro-Meter IQS453 signal conditioner
System familyTQ403 / EA403 / IQS453
Signal-conditioning roleHF modulator/demodulator for the matching TQ4x3 proximity transducer
Measurement range12 mm proximity range
Sensitivity1.33 mV/µm
Temperature compensationTemperature-compensated proximity measurement chain
Chain length / version10 m standard version
Output mode3-wire voltage output
Signal and Measurement Chain＋
Compatible chainTQ4x3 transducer with EA403 extension cable and IQS453 signal conditioner
Signal conditioner functionSupplies the transducer drive signal and converts gap variation into a proportional dynamic output
Output sensitivity1.33 mV/µm voltage output sensitivity
Electrical and Dynamic Characteristics＋
Frequency responseDC to 20 kHz (-3 dB)
Short-circuit protectionVoltage output protected against short circuits
Signal transmission3-wire voltage output for the 10 m standard chain
System pairingUse with the matching TQ4x3 transducer and EA403 extension cable
VersionStandard version for ordering number 204-453-000-021
System Configuration Limits＋
The calibrated 10 m chain must retain the matching TQ4x3 transducer, EA403 extension cable and IQS453 conditioner; measurement-range and cable-length variants are not interchangeable without system reconfiguration.
FAQ

Questions Buyers Ask Most

What is IQS453 204-453-000-021?＋

IQS453 204-453-000-021 is the 10 m standard, 3-wire voltage-output signal conditioner for the TQ4x3 / EA403 eddy-current proximity measurement chain.

What measurement-chain role does IQS453 204-453-000-021?＋

IQS453 204-453-000-021 supplies the excitation and converts transducer gap variation into a proportional voltage signal for non-contact machinery monitoring.

Which components must be matched with IQS453 204-453-000-021?＋

IQS453 204-453-000-021 must be paired with the correct TQ4x3 proximity transducer and EA403 extension cable for the calibrated 10 m chain.

What chain length is encoded by IQS453 204-453-000-021?＋

IQS453 204-453-000-021 is the standard 10 m-chain version in the manufacturer ordering table.

What sensitivity is specified for IQS453 204-453-000-021?＋

IQS453 204-453-000-021 is specified at 1.33 mV/µm for the 12 mm TQ4x3 measurement range.

Does IQS453 204-453-000-021 use a voltage or current output?＋

IQS453 204-453-000-021 uses a 3-wire voltage output; separate IQS453 ordering references cover 2-wire current-output versions.

What should be checked before replacing IQS453 204-453-000-021?＋

IQS453 204-453-000-021 should be matched by full PNR, TQ4x3 transducer, EA403 cable, 10 m chain length, voltage-output mode and the installed monitoring-system configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete IQS453 PNR, matching TQ4x3 transducer, EA403 cable, calibrated chain length, output mode and installed monitoring-system details for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IQS453 204-453-000-021

No current manufacturer-hosted IQS453 204-453-000-021 product datasheet was located in Parker Meggitt's public catalogue. Manufacturer-authored archived literature identifies this exact reference as the standard 10 m, 3-wire voltage-output IQS453 version.

Official datasheet status

No current official IQS453 204-453-000-021 product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Request the exact archived IQS453 product sheet and confirm the full 204-453-000-021 nameplate reference, matched TQ4x3 transducer, EA403 cable and 10 m chain before replacement.

IQS453 PROXIMITY SYSTEM RELATIONSHIP

How IQS453 204-453-000-021 Fits the Vibro-Meter Proximity Measurement Chain

Meggitt Vibro-Meter is the product line; IQS453 identifies the signal-conditioner family; and IQS453 204-453-000-021 is the complete standard 10 m, voltage-output conditioner reference that must be matched to the installed chain.

Meggitt Vibro-Meter · PRODUCT LINE
TQ4x3 transducer with EA403 cable and IQS453 conditionerPROXIMITY MEASUREMENT CHAIN · SIGNAL-CONDITIONER RELATIONSHIP
CONDITIONER MODEL

IQS453 · 204-453-000-021

The IQS453 conditioner drives the matching TQ4x3 eddy-current transducer and converts gap variation into a proportional voltage output.

SYSTEM FAMILY

TQ4x3 · EA403 · IQS453

The calibrated chain uses a matching TQ4x3 transducer, EA403 extension cable and IQS453 conditioner for a 10 m total chain.

SIGNAL-CONDITIONER CHARACTERISTICS

12 mm range · 1.33 mV/µm · DC to 20 kHz

The 204-453-000-021 version is the standard 10 m, 3-wire voltage-output IQS453 configuration for a 12 mm TQ4x3 measurement range.

Compatibility check: match the complete 204-453-000-021 PNR, TQ4x3 transducer, EA403 cable, 10 m calibrated chain, voltage-output mode and monitoring-system input before replacement.
APPLICATION AREAS

Application map for IQS453 204-453-000-021

Rotating-Shaft Relative DisplacementConditions the calibrated proximity signal for shaft-position and gap monitoring
Shaft Vibration MeasurementSupports radial vibration monitoring through the matched TQ4x3 / EA403 chain
APPLICATION CENTERIQS453 204-453-000-021Vibro-Meter signal conditioner for TQ4x3 eddy-current proximity systems
Machinery Condition MonitoringProvides proportional voltage output for rotating-machinery monitoring
Standard 10 m Measurement ChainsSupports the standard 10 m chain defined for ordering number 204-453-000-021
