Nhãn hiệu :
Siemensmột phần số :
6AU1425-2AD00-0AA0Trọng lượng :
3.6 kgKích thước :
380 x 50 x 270 mmnước xuất xứ :
GermanyMã HS :
8537101190Sự mô tả :

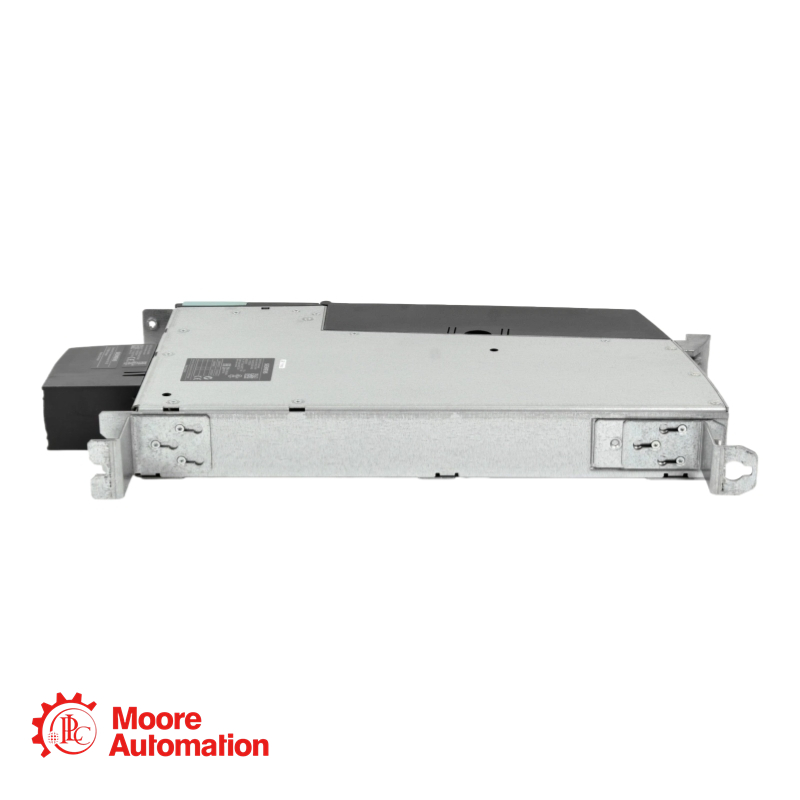

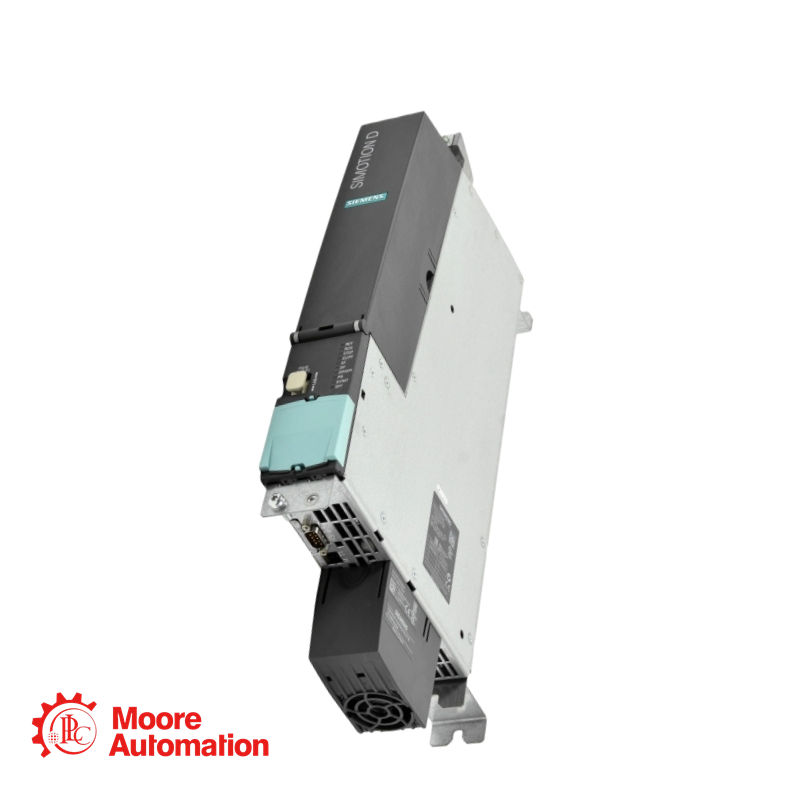

Programmable Motion Controller
|
Welcome to Contact |
|
Sales Manager: Frida |
|
Specification |
|
Maximum Number of Axes: 16
Minimum PROFIBUS Cycle Clock: 1 ms
Minimum PROFINET Send Cycle Clock: 0.25 ms
Minimum Servo Cycle Clock: 0.5 ms
Minimum Interpolator Cycle Clock: 0.5 ms
Maximum Number of Axes for Integrated Drive Control: 6 (servo), 6 (vector), 12 (V/f)
RAM (Work Memory): 48 Mbyte
Additional RAM for Java Applications: 20 Mbyte
RAM Disk (Load Memory): 31 Mbyte
Retentive Memory: 364 kbyte
Persistent Memory (User Data on CF): 300 Mbyte
DRIVE-CLiQ Interfaces: 4
PROFIBUS Interfaces: 2 (Equidistant and isochronous; configurable as master or slave)
PROFINET Interface: 1 interface with 3 ports onboard (supports IRT, RT, MRP, MRPD; configurable as IO Controller/Device)
Ethernet Interfaces: 2
Digital Inputs: 12
Digital Inputs/Outputs (Configurable): 16 (can be parameterized as DI, DO, probe input, or cam output)
DI/DO Rated Voltage: 24 V DC
DI "1" Signal Level: 15 ... 30 V
DI "0" Signal Level: -3 ... +5 V
Current Carrying Capacity per Output (max.): 500 mA
Input Delay Time (for dedicated DIs, 0→1): 50 µs (typ.)
Output Delay (for configurable I/Os, 0→1): 150 µs (typ.)
USB Interfaces: 2
Option Slot: 1
Dimensions (W x H x D): 380 x 50 x 270 mm (230 mm without spacer)
Weight (approx.): 3600 g
|
|
Best Service for Our Clients |
|
Products: 100% full New! & Original! |
|
Package: Original packing with cartons. |
|
Payment Term: T/T |
|
Warranty:12 month |
|
Shipment:DHL,UPS,TNT,CHIRLINE,FEDEX |
|
Delivery Time: Shipped in 3 days after payment. |
|
MOQ:1 |
|
