The 2711P-B7C22D9P is a PanelView Plus 7 Performance terminal with keypad and touch input, a 6.5-in. VGA TFT color display, embedded Ethernet DLR and 24V DC power.
Nhãn hiệu :
PLCmột phần số :
2711P-B7C22D9PKích thước :
179 mm x 285 mm x 69.6 mm (H x W x D); 1.47 kg ship weightMã HS :
PanelView Plus 7 Performance TerminalSự mô tả :
The 2711P-B7C22D9P is a PanelView Plus 7 Performance terminal with keypad and touch input, a 6.5-in. VGA TFT color display, embedded Ethernet DLR and 24V DC power.Click “+” to expand more specifications.
Source: Rockwell Automation publication 2711P-TD009 and the exact official product record support the 2711P-B7C22D9P specifications shown here.
2711P-B7C22D9P is a PanelView Plus 7 Performance operator terminal for monitoring and controlling devices on an EtherNet/IP network.
2711P-B7C22D9P combines a keypad with an analog resistive touch screen.
2711P-B7C22D9P uses a 6.5-in. TFT color display with 640 × 480 VGA resolution.
2711P-B7C22D9P uses 24V DC nominal input power with an 18…30V DC operating range.

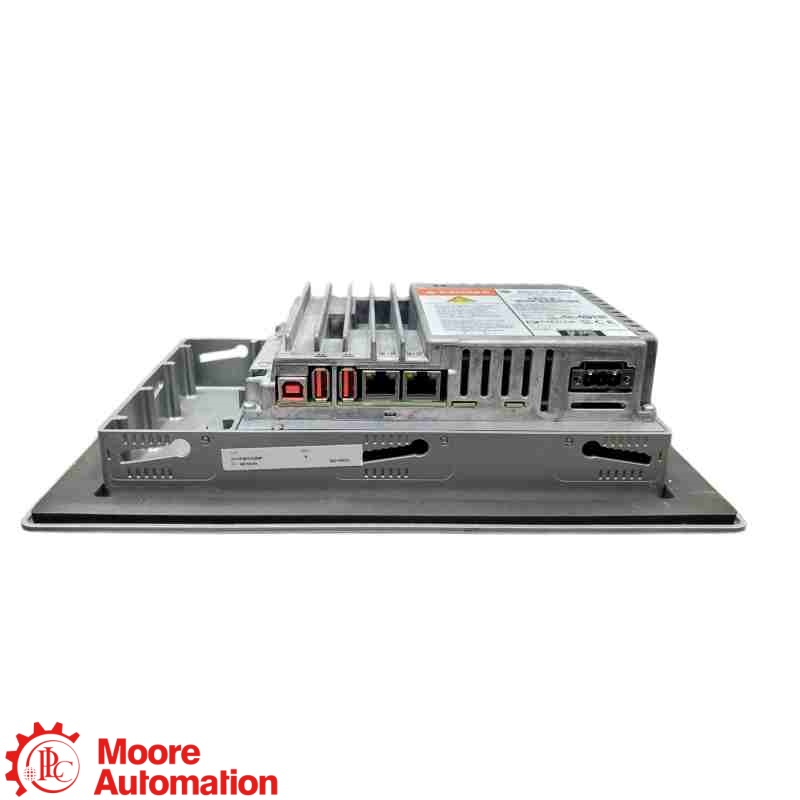

2711P-B7C22D9P has two 10/100Base-T Ethernet ports supporting DLR, linear and star topologies.
2711P-B7C22D9P is approximately 179 mm high, 285 mm wide and 69.6 mm deep, with an approximate weight of 1.47 kg.
For 2711P-B7C22D9P, confirm the complete catalog number, display size, keypad-and-touch input, DC power, Ethernet topology, panel cutout and application requirements.
Official manufacturer-reference information for the 2711P-B7C22D9P PanelView Plus 7 Performance terminal.
Official publication 2711P-TD009 identifies 2711P-B7C22D9P and documents its catalog configuration, display, input, power, network, dimensions and environmental ratings.
OPEN OFFICIAL PDFSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this product page are limited to Rockwell Automation publication 2711P-TD009 and the exact official product record for 2711P-B7C22D9P.

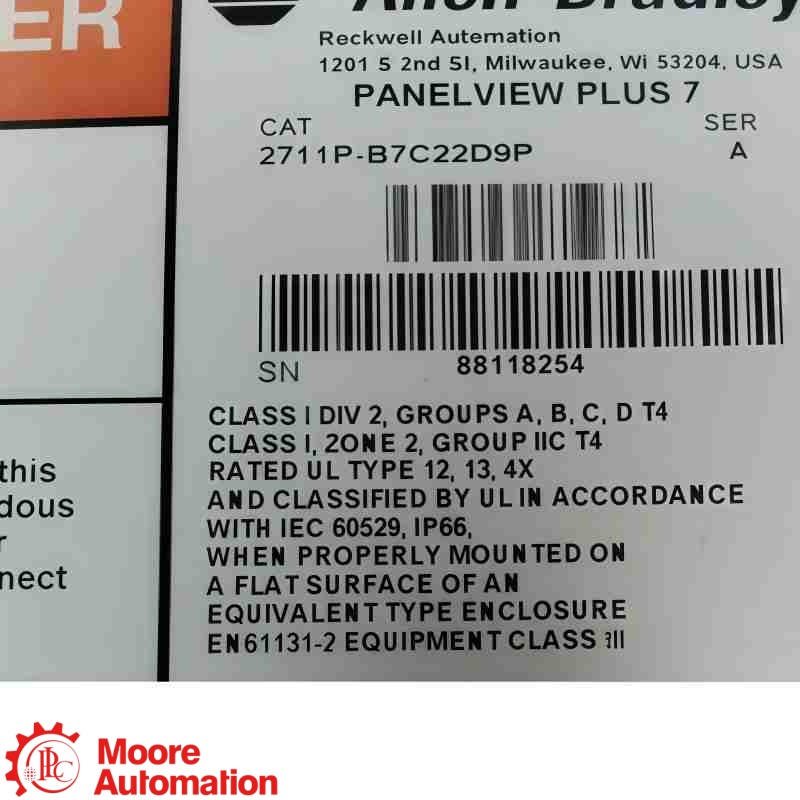

2711P identifies the PanelView Plus 7 family; B identifies key and touch input; 7 identifies the 6.5-in. display; C identifies a color display; 22 identifies Ethernet DLR ports; D identifies DC power; and 9P identifies Windows 10 IoT Core and the Performance model.
PanelView Plus 7 graphic terminal family.
Key and touch input.
6.5 in.
Color TFT display.
Ethernet DLR ports.
24V DC power.
Windows 10 IoT Core · Performance model.
Animated graphics and text give operators a view into machine or process status.
Keypad and touch input support local interaction with the control system.
Two embedded Ethernet ports support DLR, linear and star network topologies.
The terminal provides a panel-mounted operator interface for industrial control applications.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
