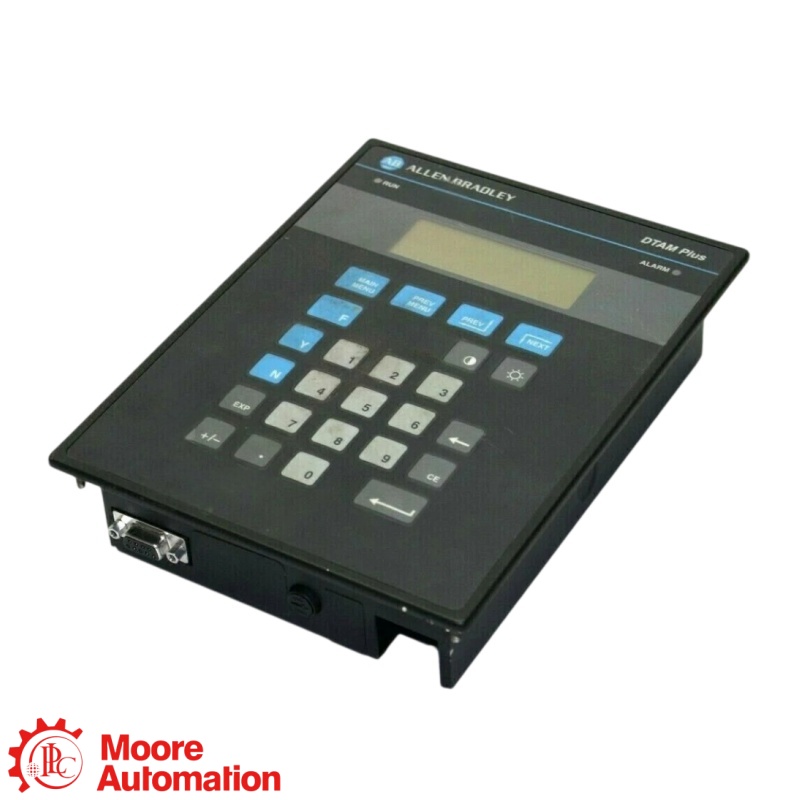

The 2707-L8P1 is a DTAM Plus operator interface with an LCD display, 8K application memory and the P1 power configuration for a compatible legacy control system.
Nhãn hiệu :
PLCmột phần số :
2707-L8P1Trọng lượng :
2.1 lb (0.95 kg)Kích thước :
8.5 × 6.5 in front; verify cutout depthnước xuất xứ :
USAMã HS :
DTAM Plus LCD Operator InterfaceSự mô tả :
2707-L8P1 is a DTAM Plus operator interface with an LCD display, 8K application memory and the P1 power configuration for a compatible legacy control system.Click “+” to expand more specifications.
Source: Official publication 2707-UM001 covers 2707-L8P1. Verify the nameplate, saved application, wiring and host configuration before replacement.
The 2707-L8P1 is a DTAM Plus operator interface with an LCD display, 8K application memory and the P1 power configuration for a compatible legacy control system.
2707-L8P1 is the 8K-memory LCD version; a 40K application requires the correct 40K catalog variant and a verified application transfer plan.
2707-L8P1 requires P1: 15–23 V AC or 20–30 V DC; Series D P1 uses 20–30 V DC only. The installed supply voltage, grounding and connector wiring must be verified before energizing the replacement unit.
2707-L8P1 uses Serial host communication; verify protocol and cable. The host protocol, port type, addressing, cable and maximum link distance must match the saved controller application.
2707-L8P1 replacement requires confirmation of the full nameplate, hardware series, panel cutout or mounting, power input, serial cable and a recoverable copy of the operator application.
2707-L8P1 inquiries should include clear nameplate photographs, quantity, hardware series, power code, installed controller, communication cable, panel dimensions and the application backup status.
Official manufacturer-reference information for the 2707-L8P1 DTAM Plus LCD Operator Interface.
Official publication 2707-UM001 covers configuration, installation, communication and operating requirements for this catalog variant.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 2707-UM001. No third-party product sources were used.
PLC is the product-family reference. 2707-L8P1 must be matched to the complete nameplate, power code, display type, serial interface, panel cutout and saved application.
Record the installed controller model, host protocol, device address, panel position and adjacent equipment.

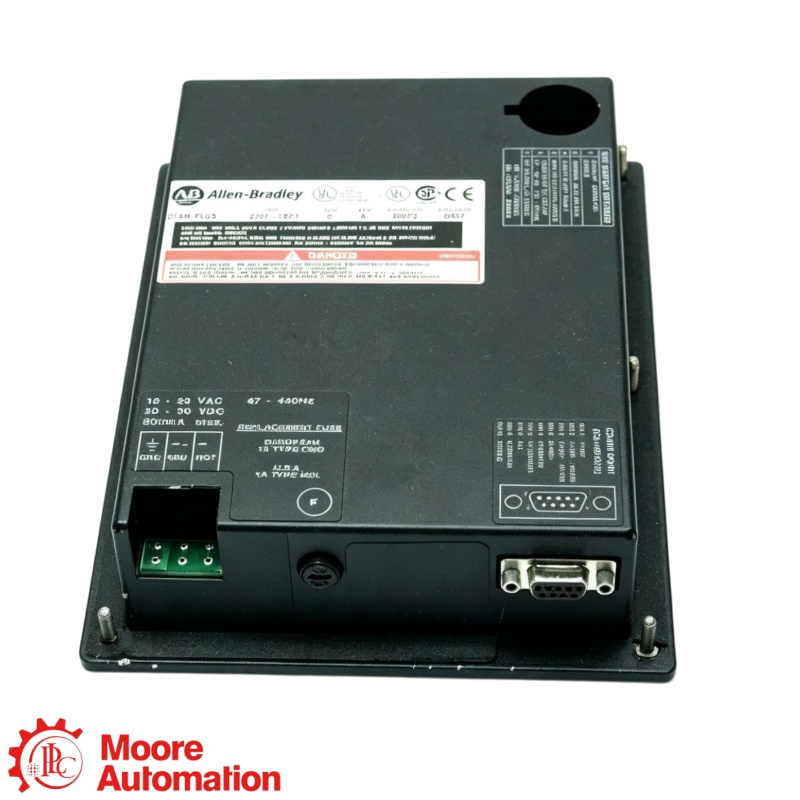

Photograph the host serial port, printer port, cable, connector and wiring before disconnecting the unit.
Verify the nameplate supply and grounding. P1 accepts 15–23 V AC or 20–30 V DC; Series D P1 uses 20–30 V DC only.
Do not select a substitute until the hardware series, cutout, supply, cable and recoverable application backup are confirmed. Confirm the exact enclosure rating shown on the installed series label.
Match 2707-L8P1 and its complete suffix to the full nameplate and installed-system documentation.
Create a recoverable copy of the operator application and record the communication parameters before removal.
Record the host protocol, address, serial cable, power input and panel cutout used by the installed application.
Confirm display, memory, ports, power code, mounting and application compatibility before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
