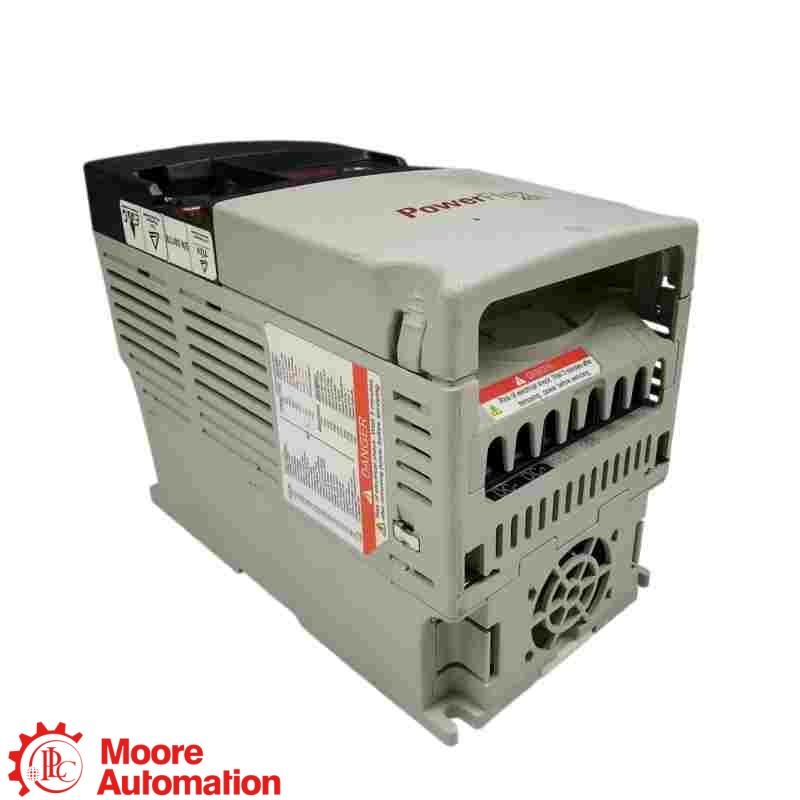

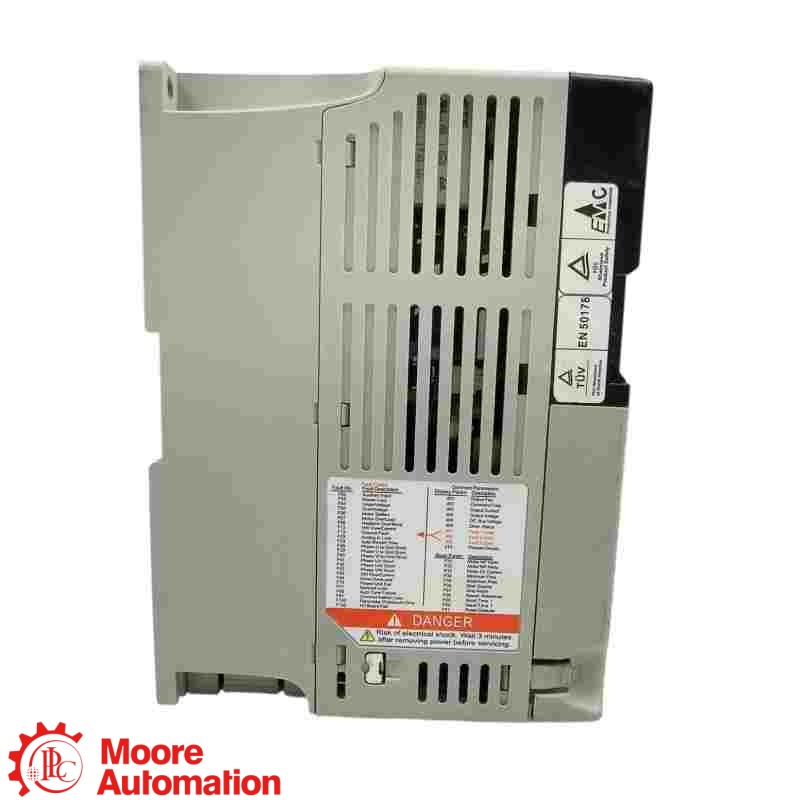

The 22D-D4P0N104 is a PowerFlex 40P Adjustable Frequency AC Drive for 380...480 V AC three-phase input, rated 4.0 A with 2 HP / 1.5 kW motor output.
Nhãn hiệu :
PLCmột phần số :
22D-D4P0N104Trọng lượng :
1.6 kgKích thước :
174 × 72 × 136 mmnước xuất xứ :
Multiple; verify from the exact product labelMã HS :
PowerFlex 40P Adjustable Frequency AC DriveSự mô tả :
The 22D-D4P0N104 is a PowerFlex 40P Adjustable Frequency AC Drive for 380...480 V AC, 3 phase input, rated 4.0 A with 2 HP / 1.5 kW motor output.Click “+” to expand more specifications.
Source: Official publication 22D-TD001 and the exact official product cutsheet support 22D-D4P0N104 technical specifications. Verify the full catalog number, 380...480 V AC voltage class, output current, duty rating, frame, enclosure, interface module and EMC filter status before replacement.
22D-D4P0N104 is a PowerFlex 40P AC drive with embedded Integral RS-485 (DSI) and safety for 380...480 V AC three-phase input.
22D-D4P0N104 has a rated output current of 4.0 A; verify the complete catalog number and motor full-load current before replacement.
22D-D4P0N104 is rated 2 HP / 1.5 kW for normal-duty operation according to official technical data.
22D-D4P0N104 is rated 2 HP / 1.5 kW for heavy-duty operation according to official technical data.
22D-D4P0N104 uses an IP20 NEMA/Open Type enclosure in Frame B, measuring 174 × 72 × 136 mm with an approximate shipping weight of 2.2 kg.
22D-D4P0N104 specifies a no EMC filter and no dynamic brake, compact adjustable-frequency motor control and integral RS-485 communication.
22D-D4P0N104 requires verification of the exact catalog number, 380...480 V supply, 4.0 A rating, duty rating, Frame B, IP20 open enclosure, no-filter configuration and installed motor system.
Official manufacturer-reference information for the 22D-D4P0N104 PowerFlex 40P AC drive.
Official publication 22D-TD001 provides exact model ratings and dimensions for 22D-D4P0N104.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 22D-TD001 and the exact product cutsheet for 22D-D4P0N104. No third-party product sources were used.
22D identifies the PowerFlex 40P drive family; D identifies the 380...480 V AC three-phase voltage class; 4P0 identifies the 4.0 A rated output-current code; and N104 identifies the IP20 open type, no EMC filter, no dynamic brake.
PowerFlex 40P AC drive.
380...480 V AC, three-phase input.
Rated output current 4.0 A.
IP20 NEMA/Open Type, no EMC filter and no dynamic brake.
Match 22D-D4P0N104 to the complete drive nameplate and installed-system documentation.
Confirm 380...480 V AC three-phase supply, 4.0 A output and 2 HP / 1.5 kW motor output rating.
Confirm Integral RS-485 (DSI) settings, the installed control wiring and the saved drive parameters.
Confirm Frame B, 174 × 72 × 136 mm dimensions, IP20 open enclosure and cooling clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
