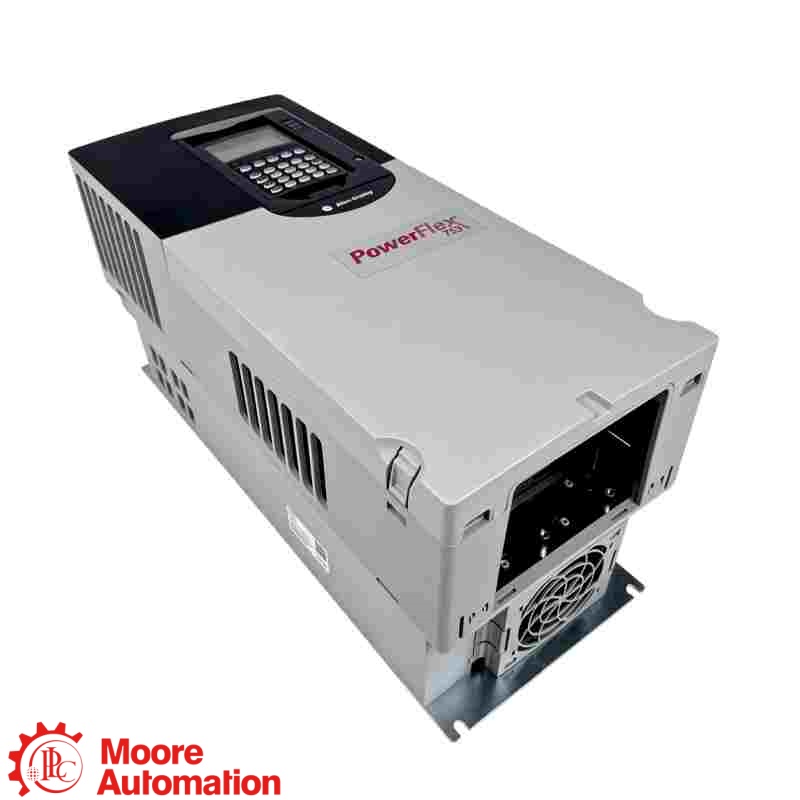

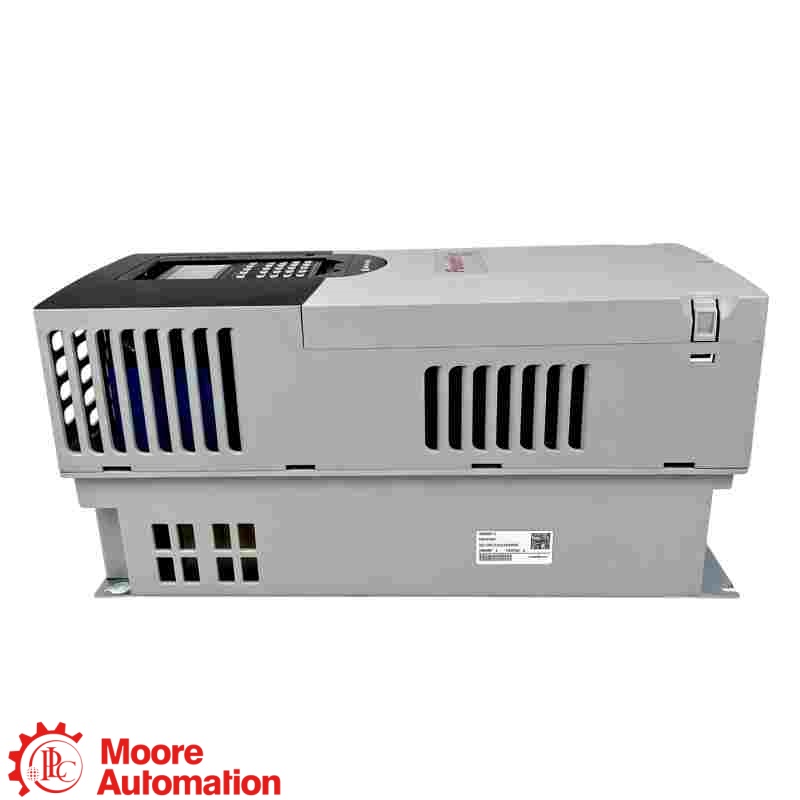

The 20G11NE022JA0NNNNN is a PowerFlex 755 AC drive for 600 V AC three-phase input, rated 22 A with 20 HP normal-duty / 15 HP heavy-duty output.
Nhãn hiệu :
PLCmột phần số :
20G11NE022JA0NNNNNTrọng lượng :
Verify from exact product drawingKích thước :
Verify from exact product drawingnước xuất xứ :
Multiple; verify from the exact product labelMã HS :
PowerFlex 755 AC DriveSự mô tả :
The 20G11NE022JA0NNNNN is a PowerFlex 755 AC Drive with embedded EtherNet/IP for 600 V AC, 3 phase input, rated 22 A with 20 HP normal-duty and 15 HP heavy-duty output.Click “+” to expand more specifications.
Source: Official publication 750-TD001 and the exact official product cutsheet support 20G11NE022JA0NNNNN technical specifications. Verify the full catalog number, 600 V AC class, 22 A output, duty ratings, frame, enclosure, input, filtering, braking and HIM configuration before replacement.
20G11NE022JA0NNNNN is a PowerFlex 755 AC drive with embedded EtherNet/IP for 600 V AC three-phase input.
20G11NE022JA0NNNNN has a rated output current of 22 A; match the complete catalog number and motor full-load current before replacement.
20G11NE022JA0NNNNN is rated 20 HP for normal-duty operation according to official technical data.
20G11NE022JA0NNNNN is rated 15 HP for heavy-duty operation according to official technical data.
20G11NE022JA0NNNNN uses an IP20/IP00 NEMA/UL Open Type enclosure in Frame 3 with forced-air cooling.
20G11NE022JA0NNNNN uses AC input with precharge and DC terminals, embedded EtherNet/IP, filtering with the CM jumper installed, a DB transistor and no HIM.
20G11NE022JA0NNNNN requires verification of the complete catalog number, 600 V three-phase supply, 22 A rating, duty selection, Frame 3, open enclosure, filter, DB transistor, no-HIM configuration and installed motor system.
Official manufacturer-reference information for the 20G11NE022JA0NNNNN PowerFlex 755 AC drive with embedded EtherNet/IP.
Official publication 750-TD001 and the exact official cutsheet identify 20G11NE022JA0NNNNN ratings and configuration.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 750-TD001 and the exact product cutsheet for 20G11NE022JA0NNNNN. No third-party product sources were used.
20G identifies the PowerFlex 755 family; in 11NE, the first 1 is reserved, the second 1 identifies AC input with precharge and DC terminals, N identifies the IP20/IP00 open enclosure, and E identifies 600 V AC; 022 is the 22 A code with 20 HP normal duty, 15 HP heavy duty and Frame 3; in JA0NNNNN, J identifies filtering with the CM jumper installed, A identifies the DB transistor, 0 means no HIM, and NNNNN are unused positions.
PowerFlex 755 AC drive with embedded EtherNet/IP.
First 1 reserved; second 1 AC input with precharge and DC terminals; N open enclosure; E 600 V AC.
22 A output; 20 HP normal duty; 15 HP heavy duty; Frame 3.
J: filtered with CM jumper; A: DB transistor; 0: no HIM; NNNNN: unused.
Match 20G11NE022JA0NNNNN to the complete drive nameplate and installed-system documentation.
Confirm 600 V AC three-phase supply, 22 A output, 20 HP normal-duty and 15 HP heavy-duty ratings.
Confirm embedded EtherNet/IP settings, installed control wiring, DB transistor, filter and HIM configuration.
Confirm Frame 3, IP20/IP00 NEMA/UL Open Type enclosure, forced-air cooling and installation clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
