1756 DC DIGITAL OUTPUT

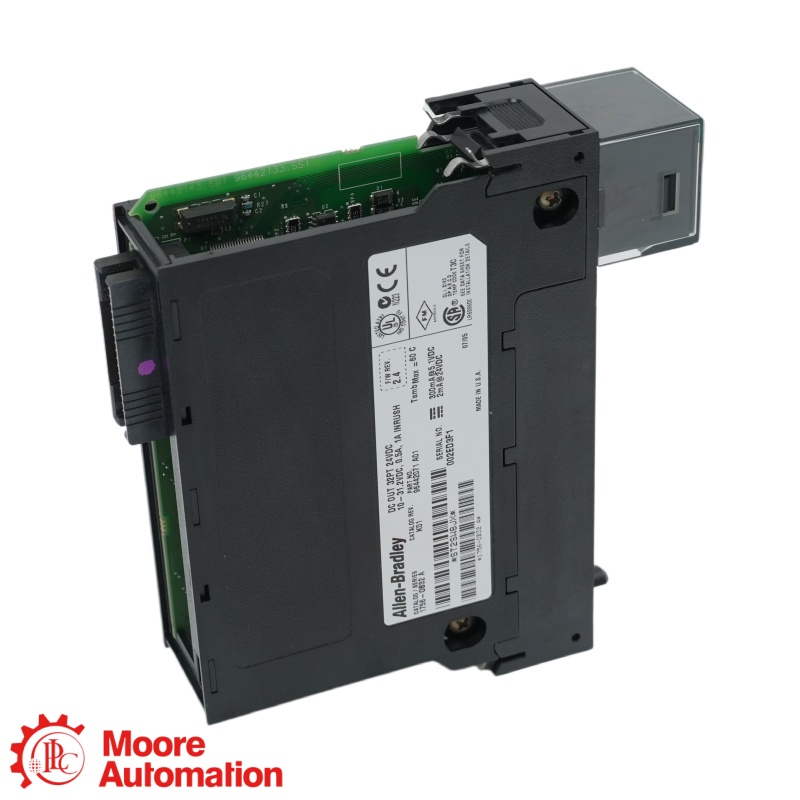

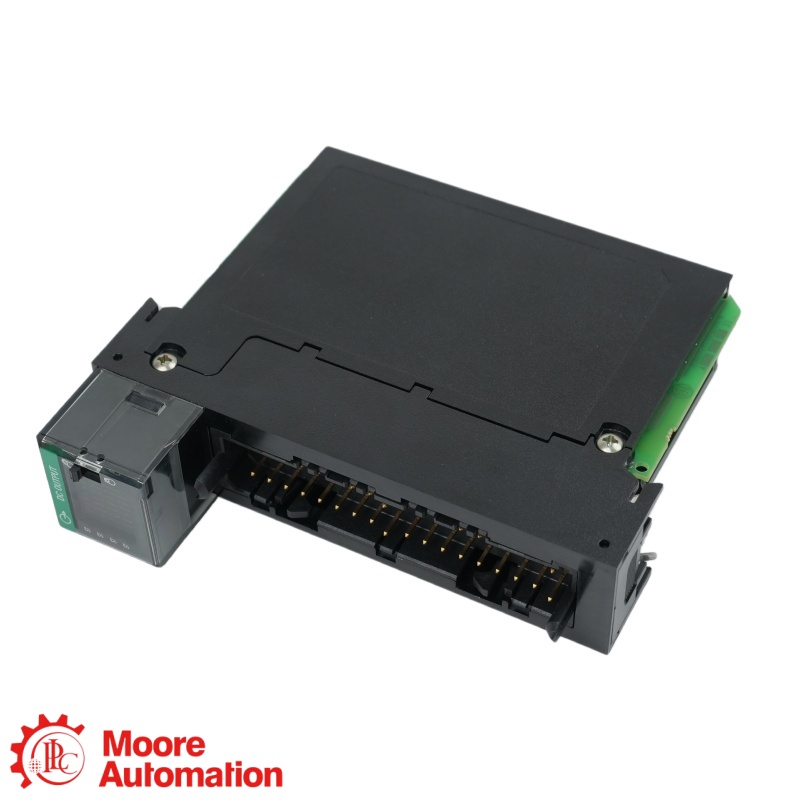

1756-OB32E

The 1756-OB32E is a 32-point source digital output module for 12/24V DC control circuits, with a 10–31.2V DC operating range.

CATALOG1756-OB32E
FAMILY1756
OUTPUTS32 points
OPERATING VOLTAGE10–31.2 V DC
BRANDPLC
PRODUCT TYPE32-Point 12/24V DC Source Output Module
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● 32-POINT DIGITAL OUTPUT
1756 DC DIGITAL OUTPUT MODULE

1756-OB32E

32-POINT · 12/24V DC SOURCE

32-point source output module for industrial DC control circuits

PRODUCT ROLE
The 1756-OB32E is a 32-point source digital output module for switching DC field loads in industrial control applications. Its outputs are arranged in two groups of 16 points.
CONFIGURATION NOTE
Verify the compatible 36-pin removable terminal block, field wiring, series and load requirements before installation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 1756-OB32E reference is structured

1756
Catalog family1756 family reference
OB32E
Output model32-point 12/24V DC source output module
OFFICIAL MANUFACTURER-REFERENCE DATA

Technical Specifications

1756-OB32E DATA
1756-OB32E

Engineering data at a glance

Click “+” to expand more specifications.

OUTPUTS32
VOLTAGE12/24V DC
RANGE10–31.2 V DC
GROUPING16 points/group
The 1756-OB32E provides 32 source outputs arranged as 16 points per group.
General Information
BrandPLC
Page model1756-OB32E
Catalog reference1756-OB32E
Product type32-point DC digital output module
Electrical Data
Outputs32 (16 points per group)
Voltage category12/24V DC source
Operating voltage range10–31.2V DC
Current per point, maximum0.5A at 50°C; 0.35A at 60°C
Current per module, maximum16A at 50°C; 10A at 60°C
Minimum load current3mA per point
Timing and Power
Off-to-on delay60µs nominal; 1ms maximum
On-to-off delay200µs nominal; 1ms maximum
Current draw at 5.1V300mA
Current draw at 24V2mA
Total backplane power1.58W
Power dissipation, maximum4.8W at 60°C
Output Characteristics
Off-state leakage current, maximum0.5mA per point
On-state voltage drop, maximum200mV DC at 0.5A
Surge current per point1A for 10ms; repeatable every 2s at 60°C
Thermal dissipation16.37 BTU/hr
Source: Official 1756 I/O Modules Specifications Technical Data, publication 1756-TD002.
FAQ

Questions Buyers Ask Most

What is 1756-OB32E used for?

1756-OB32E is a 32-point 12/24V DC source digital output module used to switch DC field loads through 32 outputs arranged in two groups of 16.

How many outputs does 1756-OB32E provide?

1756-OB32E provides 32 outputs, arranged as 16 points per group.

What operating voltage does 1756-OB32E support?

The official operating voltage range for 1756-OB32E is 10–31.2V DC, within the 12/24V DC source voltage category.

What is the maximum current rating of 1756-OB32E?

1756-OB32E supports up to 0.5A per point at 50°C, derated to 0.35A per point at 60°C; the module maximum is 16A at 50°C and 10A at 60°C.

What should I provide for a 1756-OB32E quotation?

For a 1756-OB32E quotation, provide the complete nameplate, series, quantity, removable terminal block requirement, connected load details and delivery destination.

CONTACT PRODUCT SPECIALIST

Verify 1756-OB32E with Frida

Share the complete label and connected-system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

1756 I/O Modules Specifications

Official technical data for 1756-OB32E covers 32 source outputs, 12/24V DC voltage category, operating range, current limits, timing and power characteristics.

1756-OB32E Official Technical Data

The document provides electrical, timing, power and output characteristics for the 32-point DC output module.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity and clear nameplate photos.

Source: official 1756 I/O Modules Specifications Technical Data, publication 1756-TD002.
