OMRON NS5-MQ00-V2 STN Terminal

Contact Information

NS5-MQ00-V2 Specifications

NS5-MQ00-V2 Description

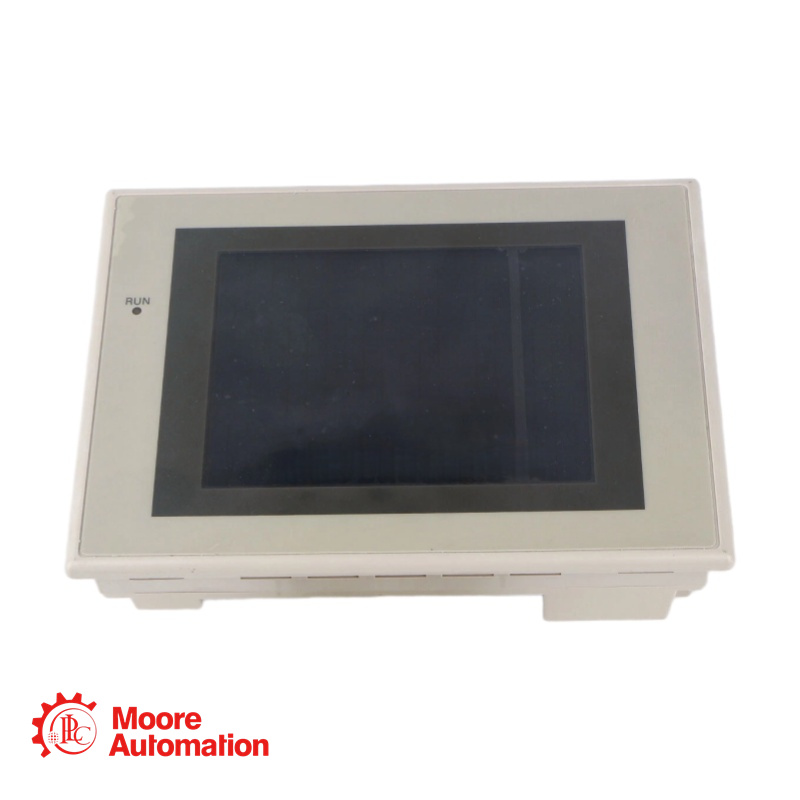

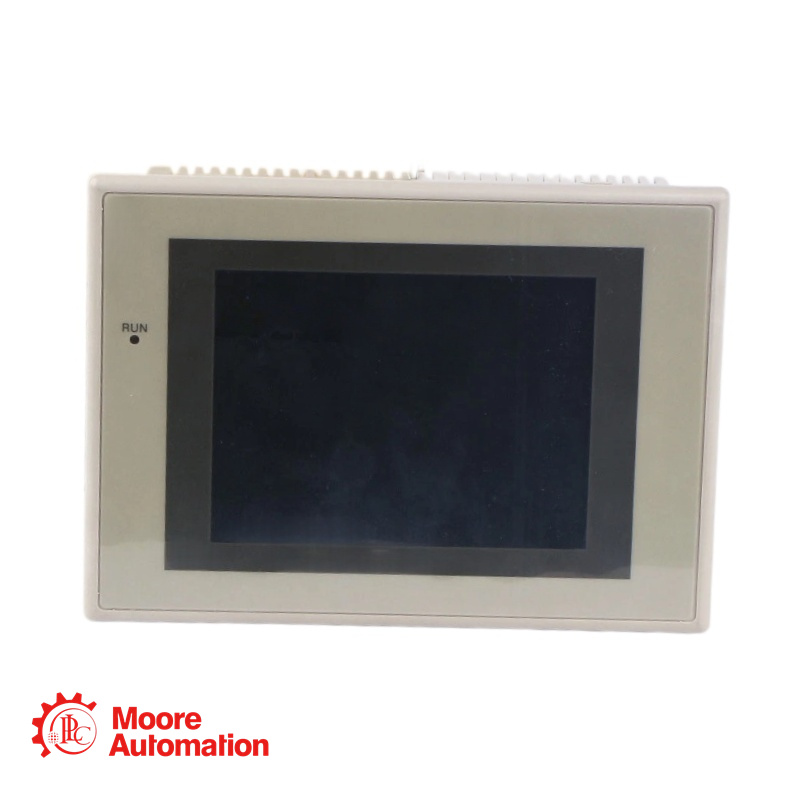

The NS5-MQ00-V2 is a 5.7-inch monochrome STN (Super-Twisted Nematic) programmable terminal from the OMRON NS Series. It is designed for industrial automation applications requiring a compact, reliable human-machine interface (HMI) with seamless integration with OMRON PLCs and other automation devices.

The NS5-MQ00-V2 features a 320 × 240 pixel QVGA display with 16 monochrome gradations, providing clear and readable information for machine operation and monitoring. It comes with 20 MB of screen memory and includes essential connectivity options such as USB (slave) , Ethernet, and RS-232C ports, enabling flexible communication with PLCs, programming devices, and peripherals.

This model is part of the NS5-V2 series and does not include Ethernet functionality (unlike the -V2 models with Ethernet). It is well-suited for applications where a cost-effective, monochrome display is sufficient and Ethernet connectivity is not required.

NS5-MQ00-V2 Alternative names

NS5-MQ00-V2 FAQ

What is the NS5-MQ00-V2?

The NS5-MQ00-V2 is a 5.7-inch monochrome programmable terminal (PT) from the OMRON NS Series. It provides a human-machine interface for monitoring and controlling industrial automation equipment.

What is the display type and resolution?

It has a 5.7-inch STN monochrome display with 320 × 240 pixels (QVGA) and 16 monochrome gradations.

Does this model have built-in Ethernet?

No. The NS5-MQ00-V2 does not have built-in Ethernet. Models with Ethernet have "-V2" in the part number with an "E" designation or are specified as having Ethernet.

How much screen memory does it have?

It has 20 MB of screen memory for storing screen data, bitmaps, and fonts.

What is the Smart Active Parts (SAP) Library?

The SAP Library is a collection of over 2,000 pre-configured objects that can be directly pasted into screens to access OMRON components. This dramatically reduces programming and screen design effort.
