Product Introduction

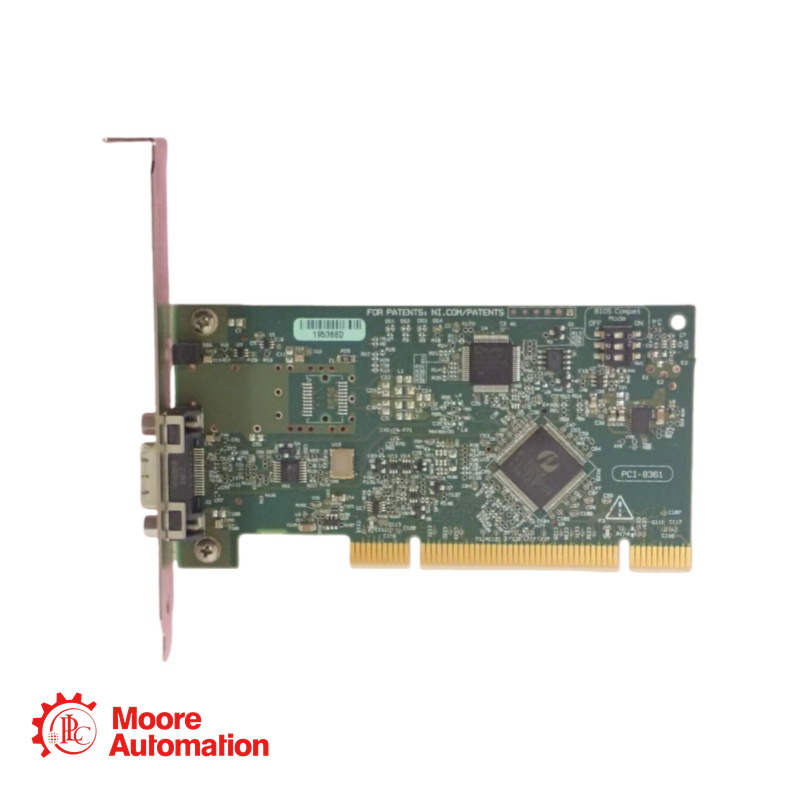

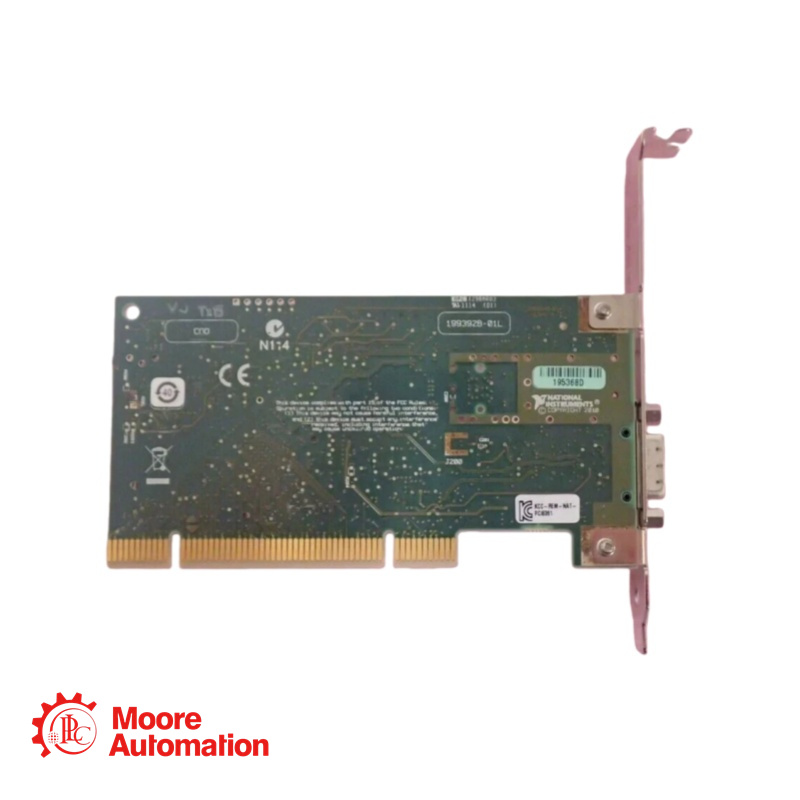

Product Model:PCI-8361

Type: PCI Host Card

Manufacturer: NI

Shipment: DHL, UPS, Fedex, and TNT

Description:
PCI Host, 100 MB/s, Copper Cable MXI-Express Device for PXI Remote Control—The PCI‑8361 is an MXI‑Express remote controller for devices or systems over cabled PCI from a computer with a PCI slot. The PCI‑8361 card provides a PCI link over a copper cable to the PXI‑8360 remote control module when used for PXI system control. This link is transparent to software applications and drivers, so computers and servers can control connected devices with no additional programming. With NI remote controllers, PXI modules can be used as if they are PCI devices directly installed in the computer.

Specification:

Dimensions:6.3 cm × 12.1 cm
Maximum cable length:7 m
Slot requirements:One slot (PCI Express, standard height or low profile)
Compatibility: Fully compatible with the PCI Express Specification, Revision 1.0a
Weight: 0.05 kg (0.11 lb) typical
Maximum altitude: 2,000 m
Ambient temperature range: 0 to 55 °C
Relative humidity range: 10 to 90%, noncondensing
