Nhãn hiệu :
Foxboromột phần số :
P0972AJTrọng lượng :
0.3 kgKích thước :
6.9cm x 3.6cm x 41.3 cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :

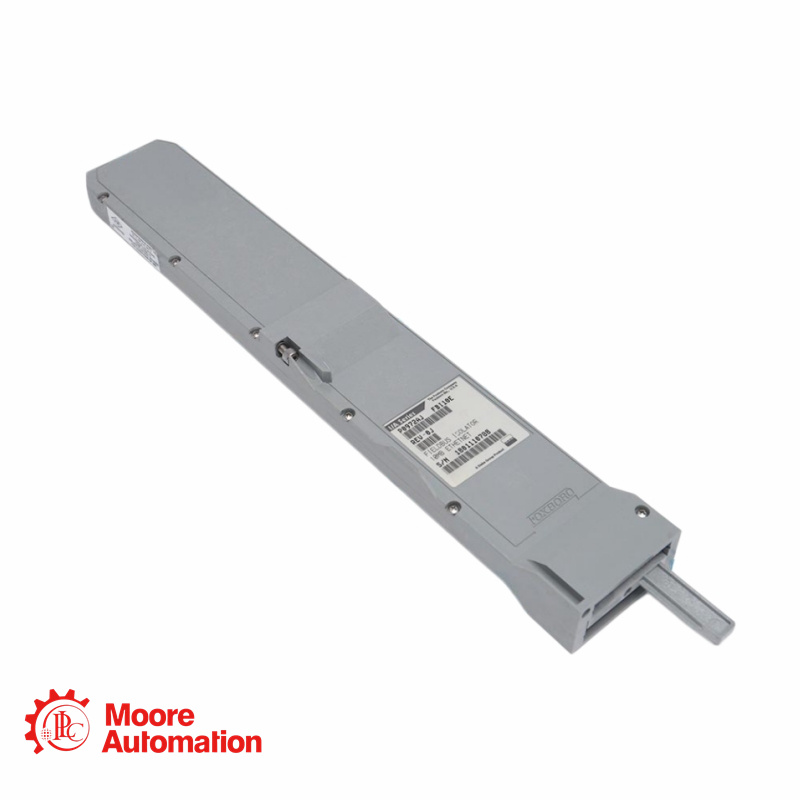

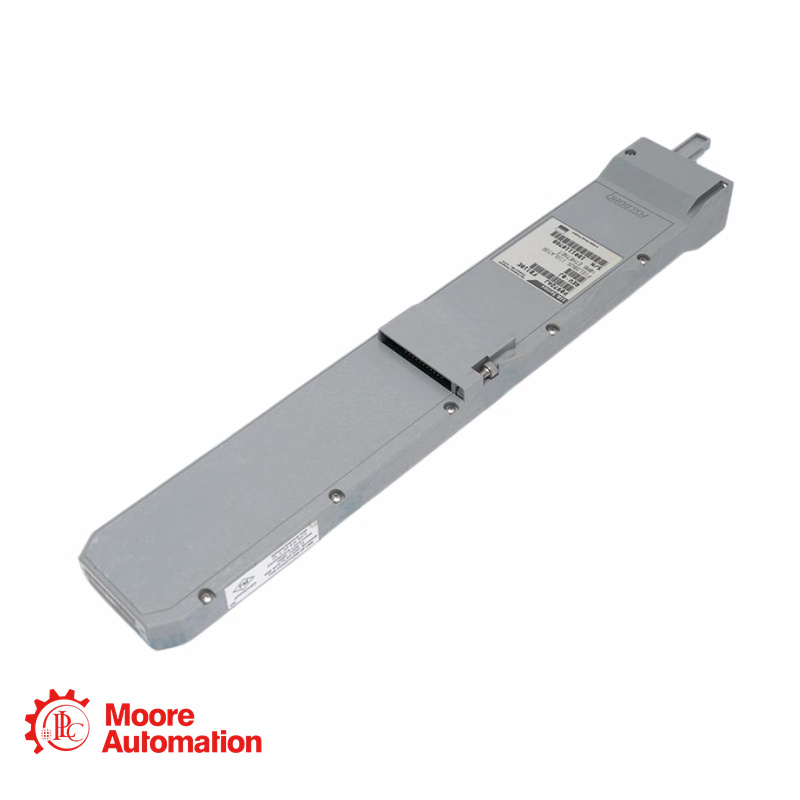

I/A Series Fieldbus Isolator for CP60 Ethernet Fieldbus conversion and FBM galvanic isolationDescription of FBI10E P0972AJ
The Invensys Foxboro P0972AJ FBI10E Fieldbus Isolator is an I/A Series hardware module designed to connect Control Processor 60 systems with Y-Module form factor Fieldbus Modules. It converts 10 Mbps Ethernet Fieldbus signals from the CP60 into HDLC signals used by FBMs, enabling reliable communication between the control processor and field I/O modules. The FBI10E also provides galvanic isolation between the Ethernet Fieldbus and FBMs, supports up to 24 FBMs, and can be used in redundant Fieldbus configurations.
Grab an Extra Discount - Contact Us
Name：Sylvie
Email：sales8@askplc.com
Whatsapp：+86 18030235312
Item
Specification
Product Model
FBI10E
Part Number
P0972AJ
Product Type
I/A Series Fieldbus Isolator Module
Main Function
Converts 10 Mbps Ethernet Fieldbus signals to HDLC signals and provides galvanic isolation
Supported Processor
Foxboro CP60
Maximum FBM Support
Up to 24 Y-Module form factor FBMs per FBI10E or redundant FBI10E pair
Input Voltage
26 to 42 V dc
Power / Current
350 mA max. at 26 V dc; 7.5 W max. at 42 V dc
Frequently asked questions
Q1: How does the FBI10E support communication between CP60 and legacy FBMs?
A: The FBI10E acts as a signal conversion and isolation module. It converts the 10 Mbps Ethernet Fieldbus signals used by the CP60 into HDLC signals used by Y-Module form factor FBMs.
Q2: Why is galvanic isolation important in a Foxboro I/A Series Fieldbus system?
A: Galvanic isolation helps separate the Ethernet Fieldbus side from the FBM side, reducing the risk of ground loops, electrical noise and interference affecting field I/O communication.
Q3: How is FBI10E used in redundant Fieldbus configurations?
A: In redundant systems, FBI10E modules are typically used in pairs, with one module serving the “A” Fieldbus path and the other serving the “B” Fieldbus path.
Q4: What should be checked before replacing an FBI10E module?
A: Users should verify the part number P0972AJ, module revision, mounting structure, CP60 compatibility, Fieldbus configuration and whether the system uses single or redundant Fieldbus operation.
Q5: What is the maximum I/O expansion supported by one FBI10E?
A: One FBI10E, or one redundant FBI10E pair, supports up to 24 Y-Module form factor Fieldbus Modules.
|
Product Application Areas |
|
Foxboro I/A Series DCS Fieldbus communication |
|
CP60-based process control systems |
|
Y-Module FBM communication networks |
|
Redundant Fieldbus architecture |
|
Petrochemical and chemical plant automation |
|
Power generation and utility control systems |
|
Oil and gas process automation |
|
Legacy Foxboro system maintenance and replacement projects |
|
