Invensys Foxboro B0123HE is a pneumatic pressure regulator with integral filter and drain for stable instrument air control service.
Nhãn hiệu :
Foxboromột phần số :
B0123HETrọng lượng :
0.82 kgKích thước :
7.0cm x 13.3cm x 13.3cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Pneumatic pressure regulator with integral filter and drainDescription of B0123HE

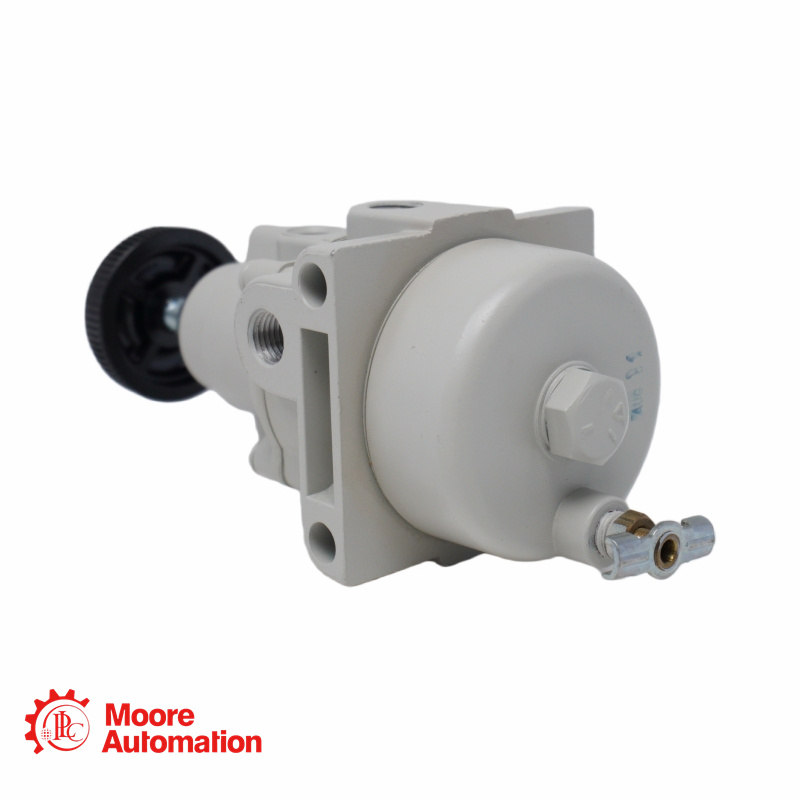

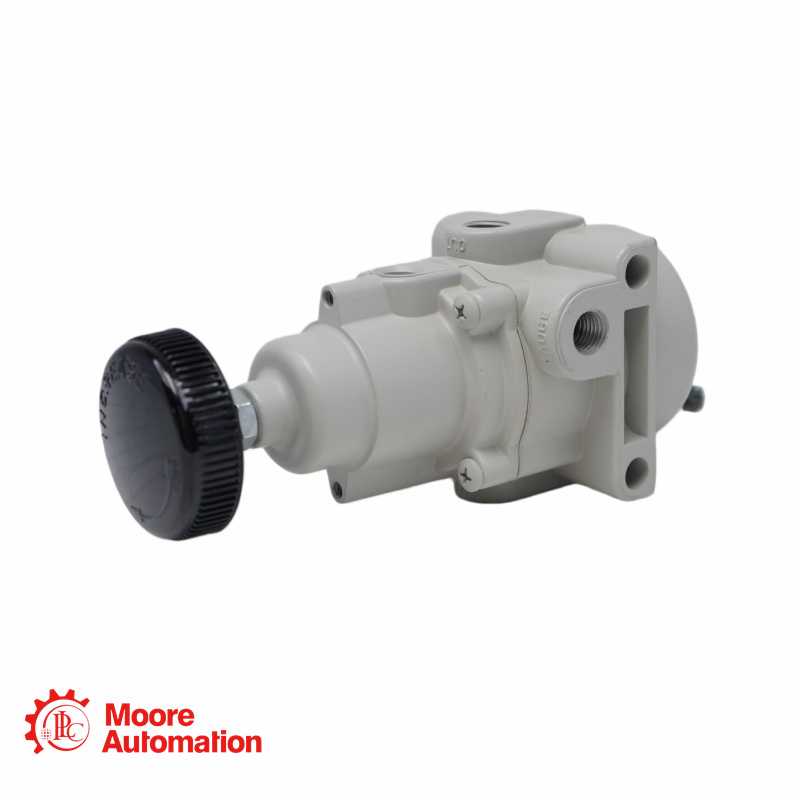

The Invensys Foxboro B0123HE Pressure Regulator is designed to provide controlled air service for pneumatic instruments. It regulates supply pressure up to 1.7 MPa / 250 psi to the nominal pressure levels required by pneumatic instrumentation. Compared with the B0123HF model, the B0123HE includes an integral filter element and drain feature, helping remove condensate and maintain cleaner instrument air. It can be installed vertically or horizontally, provided the drain remains at the lowest point of the assembly.
Grab an Extra Discount - Contact Us
Name：Sylvie
Email：sales8@askplc.com
Whatsapp：+86 18030235312
|
Item |
Specification |
|
Part Number |
B0123HE |
|
Brand |
Foxboro |
|
Product Type |
Pressure Regulator |
|
Service |
Controlled air service for pneumatic instruments |
|
Maximum Supply Pressure |
1.7 MPa / 250 psi / 17 bar / kg/cm² |
|
Flow Capacity |
33.6 m³/hr |
|
Flow Capacity Condition |
At 700 kPa / 100 psi / 7 bar supply, regulated to 140 kPa / 20 psi / 1.4 bar |
|
Sensitivity |
25 mmH₂O / 1 inH₂O |
|
Mounting Holes |
Two 8 mm / 0.320 in diameter through holes |
|
Panel Mounting Holes |
Two 0.190-24 tapped holes |
|
Related Repair Kit |
B0127VS, B0127VT |
|
Frequently asked questions |
|
Q1: What is the B0123HE used for? |
|
A: It is used to regulate air supply pressure for pneumatic instruments. |
|
Q2: What is the maximum supply pressure? |
|
A: The maximum supply pressure is 1.7 MPa / 250 psi / 17 bar. |
|
Q3: Does B0123HE include a filter? |
|
A: Yes, it has an integral filter element and drain feature. |
|
Product Application Areas |
|
Pneumatic instrument air control |
|
Process control systems |
|
Chemical plant instrumentation |
|
Oil and gas pneumatic systems |
|
Power plant control systems |
|
Refinery instrument air lines |
|
Industrial automation air supply systems |
|
Water treatment pneumatic control equipment |
|
