ICS TRIPLEX TRUSTED SYSTEM · FIBRE TX/RX UNIT

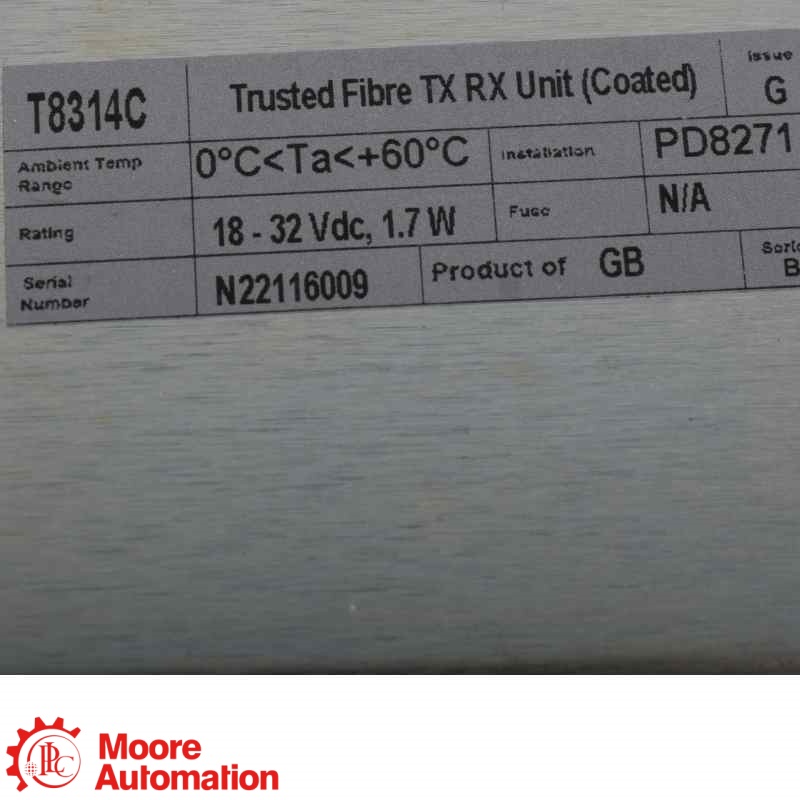

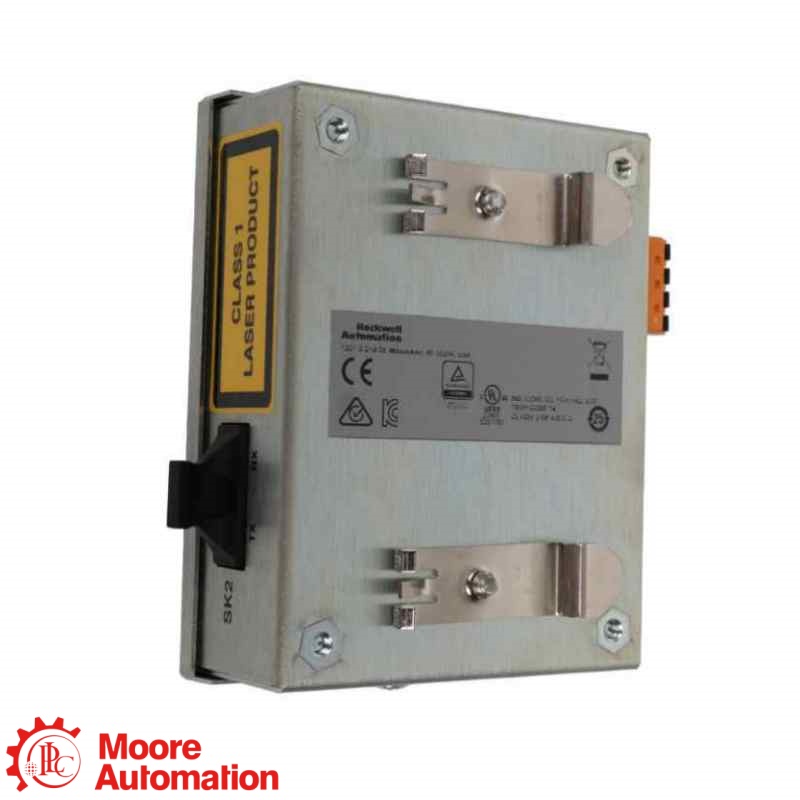

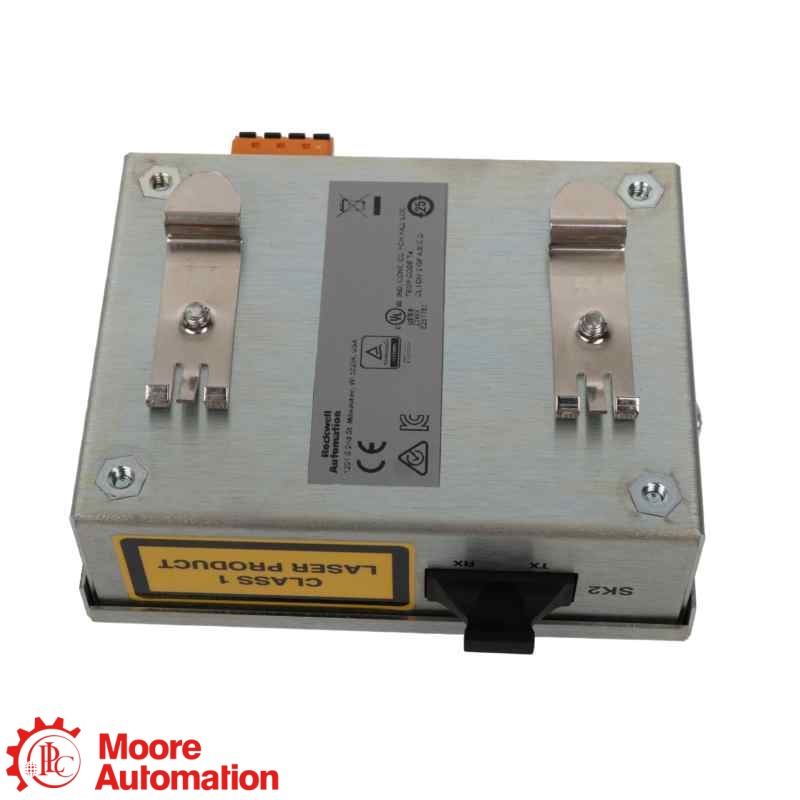

T8314

The T8314 is a Trusted Fibre TX/RX Unit that converts copper Expander Bus signals to single-mode fibre for remote chassis links up to 10 km.

PRODUCT TYPETRUSTED FIBRE TX/RX UNIT
PLATFORMTrusted Remote Expander System
CONFIGURATION18 Vdc to 32 Vdc
APPLICATIONRemote Fibre Extension
MANUFACTURERICS Triplex / Rockwell Automation
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ICS Triplex ● TRUSTED FIBRE TX/RX UNIT
ICS TRIPLEX TRUSTED SYSTEM

T8314

TRUSTED FIBRE TX/RX UNIT

TRUSTED SYSTEM · 250 Mb/s fibre link · 10 km

MODULE ROLE
T8314 is the fibre-optic communications interface between a Trusted Controller Chassis and remote Expander Chassis, converting copper Expander Bus signals to single-mode fibre.
CONFIGURATION NOTE
For T8314, confirm dual 24 Vdc supplies, SC single-mode fibre, three matched link pairs, cable route and TC-302/TC-303 interface cabling before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Rockwell Automation PD_T8314 ↗
T8314 TRUSTED FIBRE TX/RX UNIT

Engineering data at a glance

Click “+” to expand more specifications.

MODELT8314
PLATFORMTrusted Remote Expander System
CONFIGURATION18 Vdc to 32 Vdc
APPLICATIONRemote Expander Link
Rockwell Automation Publication PD_T8314 identifies T8314 as the Trusted Fibre TX/RX Unit for extending the Trusted Expander Bus over single-mode fibre.
Official product verification Verify the complete model T8314, dual 24 Vdc power, SC single-mode fibre, matched link pairs and TC-302/TC-303 cabling before ordering.
GENERAL INFORMATION −
BrandICS Triplex / Rockwell Automation
Part numberT8314
Product typeTrusted Fibre TX/RX Unit
Product familyTrusted Remote Expander System
System roleSingle-mode fibre extension for the Trusted Expander Bus
PlatformTrusted Remote Expander System
LINK CONFIGURATION ＋
Fibre typeSingle mode, 1300 nm
Connector typeSC
Installation checkUse three independent TX/RX pairs per remote link
POWER & OPTICAL DATA ＋
Supply voltage18 Vdc to 32 Vdc
Maximum power1.7 W
Data rate250 Mb/s
Maximum link distance10 km
Dimensions / weight84 x 110 x 40 mm / 320 g
DOCUMENTATION & ORDER CHECK ＋
Reference: Verify the complete model T8314, dual 24 Vdc power, SC single-mode fibre, matched link pairs and TC-302/TC-303 cabling before ordering.
Source: Rockwell Automation Publication PD_T8314, Issue 12 identifies T8314 as the Trusted Fibre TX/RX Unit variant.
FAQ

Questions Buyers Ask Most

What is T8314 used for?＋

T8314 is a Trusted Fibre TX/RX Unit that converts copper Expander Bus signals to single-mode fibre for remote chassis links up to 10 km.

What maximum link distance does T8314 support?＋

T8314 supports a maximum single-mode fibre link distance of 10 km.

Does T8314 convert copper Expander Bus signals to fibre?＋

T8314 converts the copper PECL Expander Bus signals to fibre-optic signals and back at the remote end.

Which fibre connection is specified for T8314?＋

T8314 uses single-mode fibre at 1300 nm with SC connectors and separate transmit and receive fibres.

What should be checked before replacing T8314?＋

For T8314, confirm dual 24 Vdc supplies, matched unit pairs, SC single-mode fibre, cable route, propagation limits and TC-302/TC-303 cables.

What official manual covers T8314?＋

T8314 is covered by Rockwell Automation Publication PD_T8314, Issue 12, Trusted Remote Expander System.

What information should be supplied when ordering T8314?＋

When ordering T8314, provide the exact catalog number, quantity, link distance, fibre route, SC cable details, power arrangement and installed-system configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
T8314

Official Rockwell Automation documentation for Trusted T8314.

Trusted Remote Expander System

Rockwell Automation Publication PD_T8314, Issue 12 describes T8314 as the Trusted Fibre TX/RX Unit that converts copper Expander Bus signals to 1300 nm single-mode fibre for links up to 10 km.

OFFICIAL MANUAL ↗

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page follow Rockwell Automation Publication PD_T8314, Issue 12 for the Trusted Fibre TX/RX Unit.

TRUSTED FIBRE EXPANDER LINK RELATIONSHIP

How T8314 Fits into the Trusted Remote Expander System

Rockwell Automation publishes the Trusted product documentation; T8314 is the 1300 nm single-mode fibre interface; and T8314 converts the Expander Bus between copper PECL and single-mode fibre.

ICS Triplex · BRAND
Trusted Remote Expander Systemtrusted fibre TX/RX unit
SYSTEM ROLE

trusted fibre TX/RX unit

Provides a 250 Mb/s single-mode fibre extension for the Trusted Expander Bus over distances up to 10 km.

NETWORK / POWER

250 Mb/s · single-mode fibre · up to 10 km

Confirm matched TX/RX units, SC connectors, fibre routing and TC-302/TC-303 interface cables.

ORDER DATA

T8314 · Trusted Fibre TX/RX Unit

Do not substitute another fibre unit without checking wavelength, SC connectors, power, matched link pairs, distance and interface cabling.

System relationship: verify the exact unit, dual power feeds, SC single-mode fibre, cable route, matched pairs and interface cabling.
APPLICATION AREAS

Application map for T8314

Remote Expander Link1.7 W
Long-Distance CommunicationSupport remote chassis links over distances up to 10 km
APPLICATION CENTER T8314 T8314 · Trusted Fibre TX/RX Unit
DIN-Rail InstallationMount on TS32 or TS35 rail with fibre bend clearance
Replacement VerificationCheck the exact T8314 model, power feeds, SC fibre, matched pairs and cabling before replacement.
