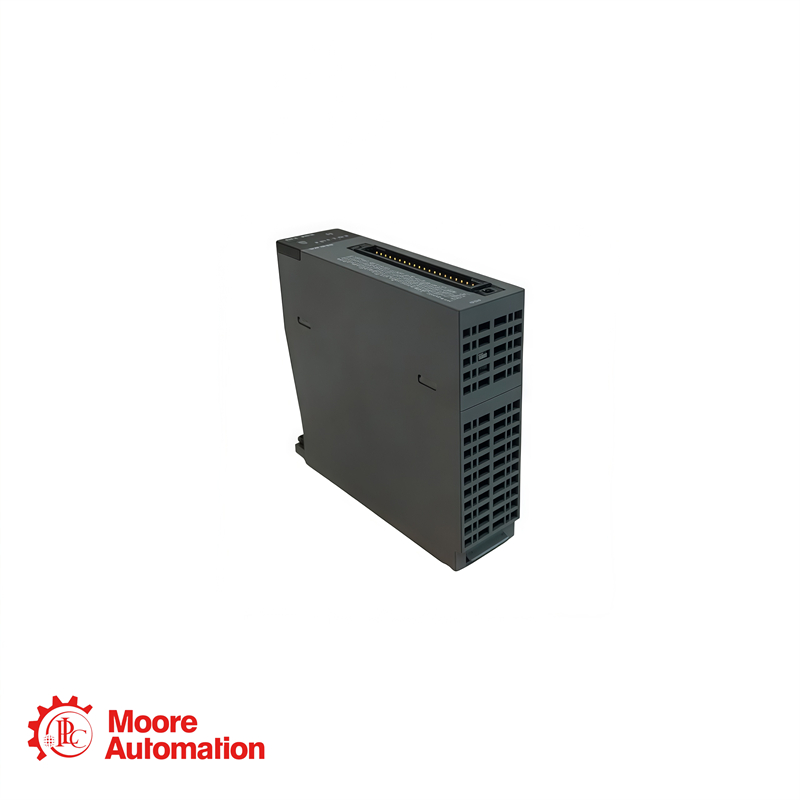

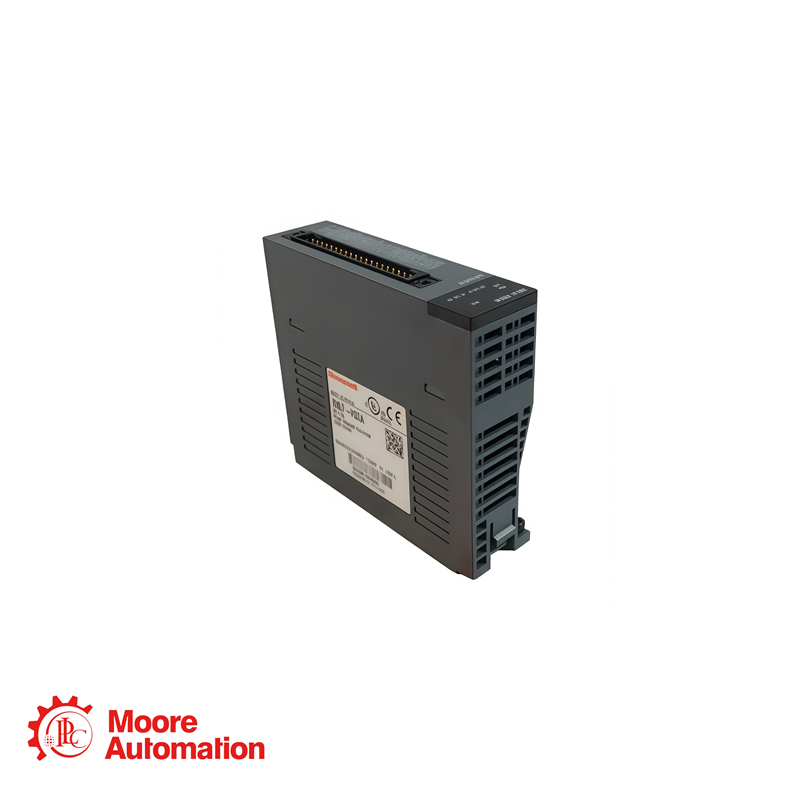

HONEYWELL 2MLF-HD2A High Speed Counter Module

Product Description

Brand: HONEYWELL

Part number: 2MLF-HD2A

Description: High Speed Counter Module

Country of origin: USA

Warranty: 1 Year

Availability: In Stock
Shipping Port: Xiamen, China

Input Channels: 2 channels, differential line driver (RS-422A/HTL)
Maximum Counting Frequency: 500 kHz (RS-422A) / 250 kHz (HTL)
Signal Level: RS-422A line driver or HTL differential
External Outputs: 2 open collector (sink) points per channel, DC 5–24 V, 100 mA
Isolation: Field ↔ system optocoupler isolation; non-isolated between channels
Isolation withstand voltage: AC 560 V rms / 3 cycles
Backplane 5 V consumption: ≤ 250 mA
External power supply: DC 5/12/24 V ±10%, supplied via terminals
Operating temperature: -25 … +70°C
Storage temperature: -40 … +85°C
Relative humidity: 5–95% RH (non-condensing)
External connection: 18-position removable screw terminal
Applicable conductors: 0.3–0.75 mm² stranded wire
Mounting method: 35 mm DIN rail
