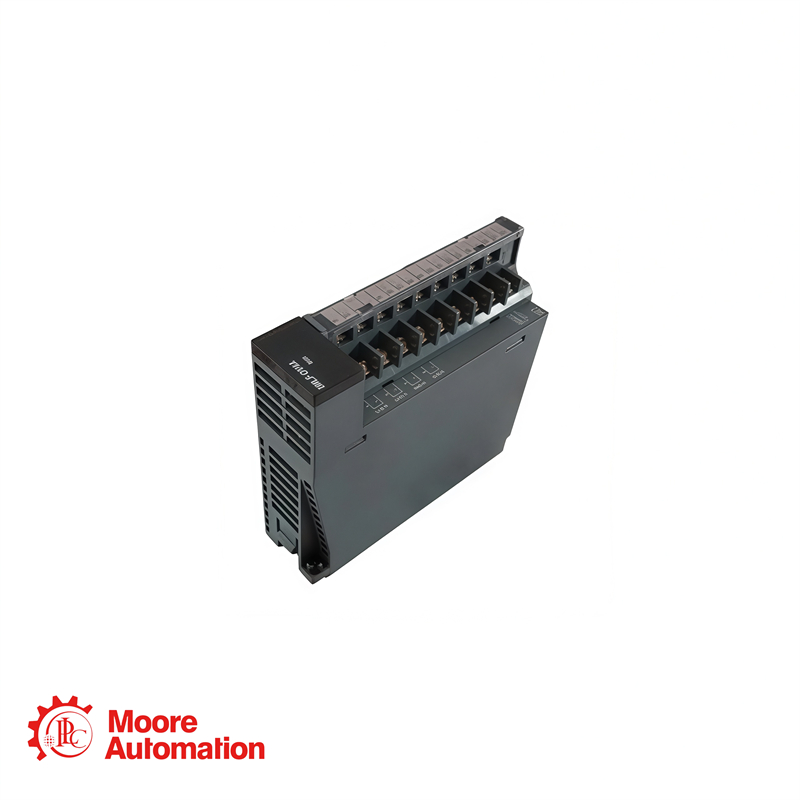

Honeywell 2MLF-DV4A Analog Output Module

Basic Information

Model Number: 2MLF-DV4A

Manufacturer: Honeywell
Product Name: Analog Output Module
Availability: In Stock
Product Origin: USA
Shipping Port: Xiamen, China

Condition: 100% Original

Warranty: 1 Year

Output Channels: 4, Channel ↔ System Optocoupler Isolation
Resolution: 14 bits (16383 levels)
Settling Time: ≤ 1 ms (Resistive Load, 10–100 kΩ)
Accuracy: ±0.2% F.S. (@25°C); Temperature Coefficient: ±50 ppm/°C
Drive Capacity: ±10 mA/channel (Minimum Load 2 kΩ)
Short-Circuit/Overload Protection: Automatic current limiting, automatic recovery upon fault release
Wire-Break Readback: Supports 1–5 V range wire-break detection (> 6 V)
Isolation Voltage: AC 560 V rms / 3 cycles (at 2000 m altitude)
Backplane 5 V Consumption: ≤ 240 mA
External Power Supply: DC 24 V ±10%, ripple ≤ 4 Vp-p, typical 140 mA
Operating Temperature: -25 … +70°C
Storage Temperature: -40 … +85°C
Relative Humidity: 5–95% RH (non-condensing)
External Connections: 18-position removable screw terminal blocks (M3 x 6)
Applicable Wire: 0.3–0.75 mm² stranded wire
Mounting Method: 35 mm DIN rail
