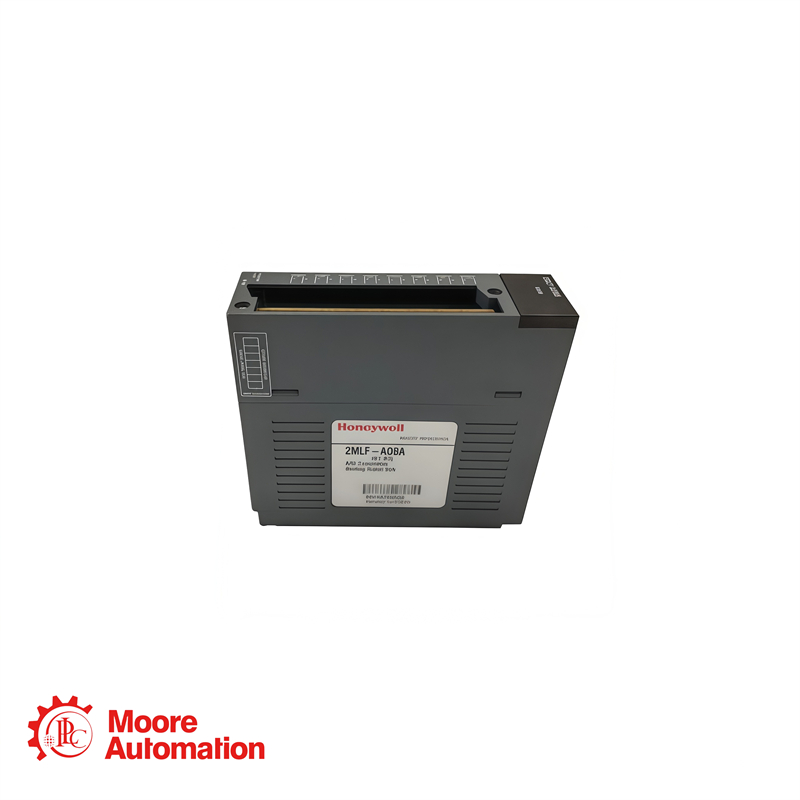

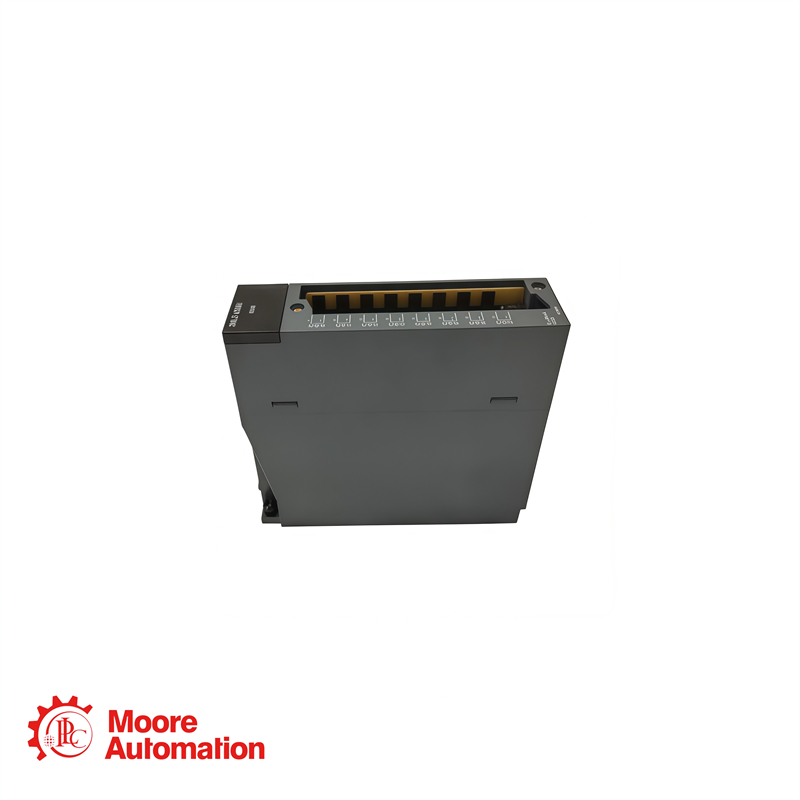

Honeywell 2MLF-AD8A Analog Input Module

Basic Information

Model Number: 2MLF-AD8A

Manufacturer: Honeywell
Product Name: Analog Input Module
Availability: In Stock
Product Origin: USA
Shipping Port: Xiamen, China

Condition: 100% Original

Warranty: 1 Year

Input Channels: 8 channels
Input Impedance: Voltage ≥ 1 MΩ; Current 250 Ω
Resolution: 16 bits (0–16,000 corresponds to full scale, expandable to ±16,000 signed)
Accuracy: ±0.05% F.S. (typical at 25°C)
Temperature Drift: ±50 ppm/°C (typical)
Conversion Speed: 1 ms/channel (8 ms scan cycle for 8 channels)
Wire Disconnect Detection: Supports 4–20 mA wire disconnect alarm; dual indication via LED and register
Isolation: Optocoupler isolation between field and system sides, non-isolated between channels
Isolation Voltage: AC 560 V rms / 3 cycles (at 2000 m altitude)
Backplane 5 V current consumption: 420 mA
External power supply: No external power supply required
Operating temperature: -25 … +70 °C
Storage temperature: -40 … +85 °C
Relative humidity: 5–95 %RH (non-condensing)
External connections: Removable 18-position screw terminal (M3 x 6)
Applicable wire: 0.3–0.75 mm² stranded wire
Mounting method: 35 mm DIN rail (MasterLogic-200 base)
