Nhãn hiệu :
General Electricmột phần số :
IC693MDL340Trọng lượng :
0.4kgKích thước :
3.5x13x13.5cmnước xuất xứ :
United StatesMã HS :
8537101190Sự mô tả :

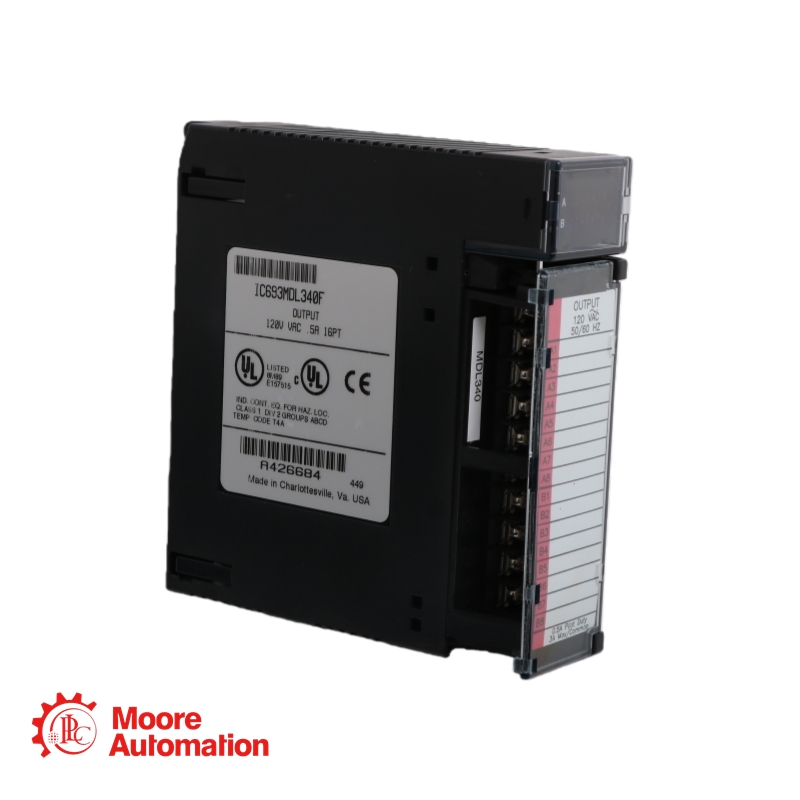

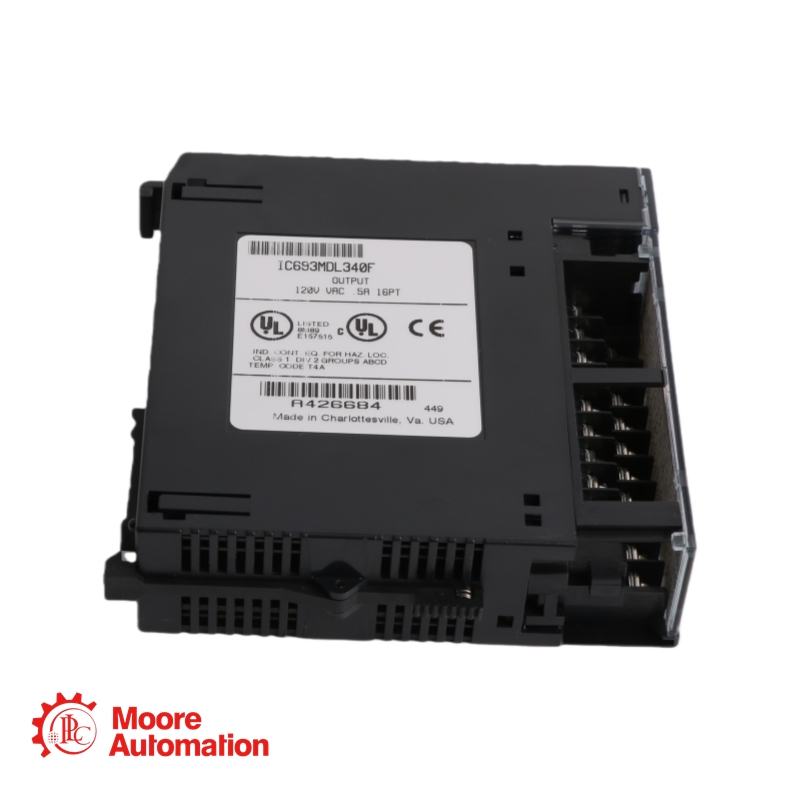

AC Output Module►Product in Focus
Product Name: IC693MDL340
Module Type: 120 Volt AC Output
Rated Voltage: 120 volts AC
Output Voltage Range: 85 to 132 volts AC, 50/60 Hz
Number of Outputs: 16 points
Output Grouping: Two isolated groups with eight points each
Current per Point: 0.5 amp maximum
Current per Group: 3 amps maximum
Isolation (Field): 1500 volts
Isolation (Between Groups): 500 volts
Inrush Current: 20 amps maximum for one cycle
Minimum Load Current: 50 mA
Output Voltage Drop: 1.5 volts maximum
Output Leakage Current: 2 mA maximum at 120 volts AC
On Response Time: 1 ms maximum
Off Response Time: 1/2 cycle maximum
Power Consumption: 315 mA (all outputs ON) from 5 volt bus on backplane
Protection: 3 amp fuse per group; RC snubber per output
Status Indicators: Green LEDs for each output point (A1-8, B1-8); Red LED (F) for blown fuse indication
Compatible Baseplates: Any I/O slot of a 5 or 10-slot Series 90-30 baseplate
